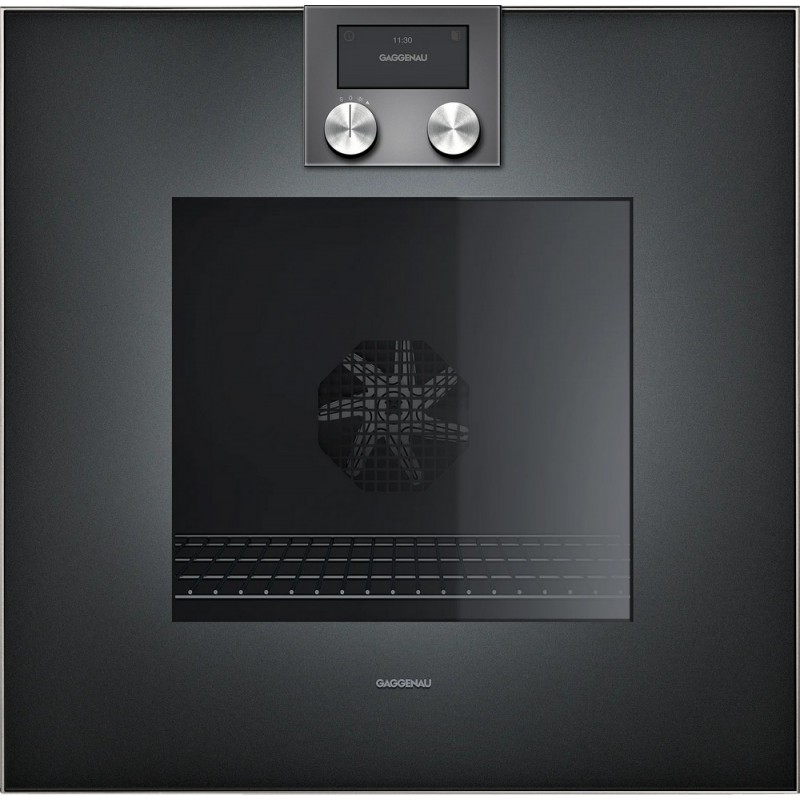

Gaggenau 60 cm built-in pyrolytic oven with left hinges BO471102 anthracite finish

Cod. BO 471 102

Cod. EAN 4242006288426

Heating systems:

• Hot air
• Eco hot air
• Top + bottom heating
• Top + 1/3 bottom heating
• Top heating
• 1/3 top + bottom heating
• Bottom heating
• Hot air + bottom heating
• Hot air + 1/3 bottom heating
• Full grill + fan heater
• Full grill
• Compact grill
• Fracture stone function
• Rotisserie
• Proofing
• Defrosting
• Keep warm

Operation:

• Automatic door opening door
• TFT touch display with knobs for easy and intuitive use
• Clear text display
• Option to save personalized recipes
• Possibility of customizing automatic programs
• Information button
• Side opening up to 180 degrees

Features:

• 3-point temperature probe with automatic switch-off and cooking time indicator
• Automatic programs
• Rotisserie
• Internal electrical socket for Gaggenau pizza system (top + heating element)
• Display with temperature indicator
• Rapid heating
• Timer functions:
• cooking time
• end of cooking time
• short timer
• long timer
• minute minder
• Lighting Halogen on top (60 W)
• Halogen lighting on the sides (2 x 10 W)
• Cavity with 3-level pyrolysis-proof side supports
• Integrated digital services (Home Connect) with the home network via LAN cable (recommended) or via WiFi
• The operation of the Home Connect mode depends on the availability of the Home Connect service in each country

Safety:

• Thermo-insulated door with quadruple glass
• Child lock
• Safety thermocouple
• Cooling fan

Cleaning:

• Pyrolysis
• Internal coating with Gaggenau enamel for a smoother and easier-to-clean surface
• Thermal odor purifier

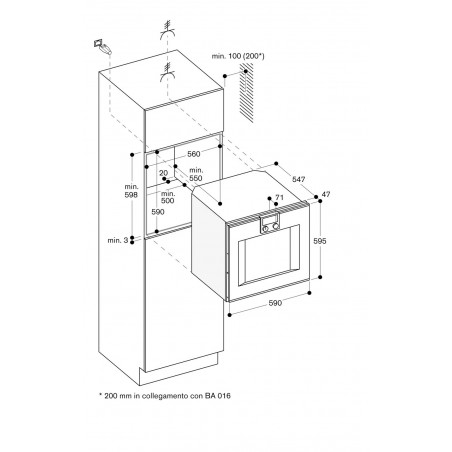

Care precautions Assembly:

• Non-reversible hinges
• The appliance protrudes 47 mm from the front of the cabinet niche
• To install an oven in a corner cabinet, consider that the door opens at a minimum of 90 degrees
• To install the appliance in a depth of 550 mm, the connection cable must pass through the rear right side of the product
• The electrical socket must be provided outside the cabinet niche
• LAN port located at the top right of the rear side of the appliance

Connection values:

• Energy efficiency class A
• Total absorption 3.7 kW
• Provide a connection cable
• Provide a LAN cable
• Check the manual to turn off the WiFi module
