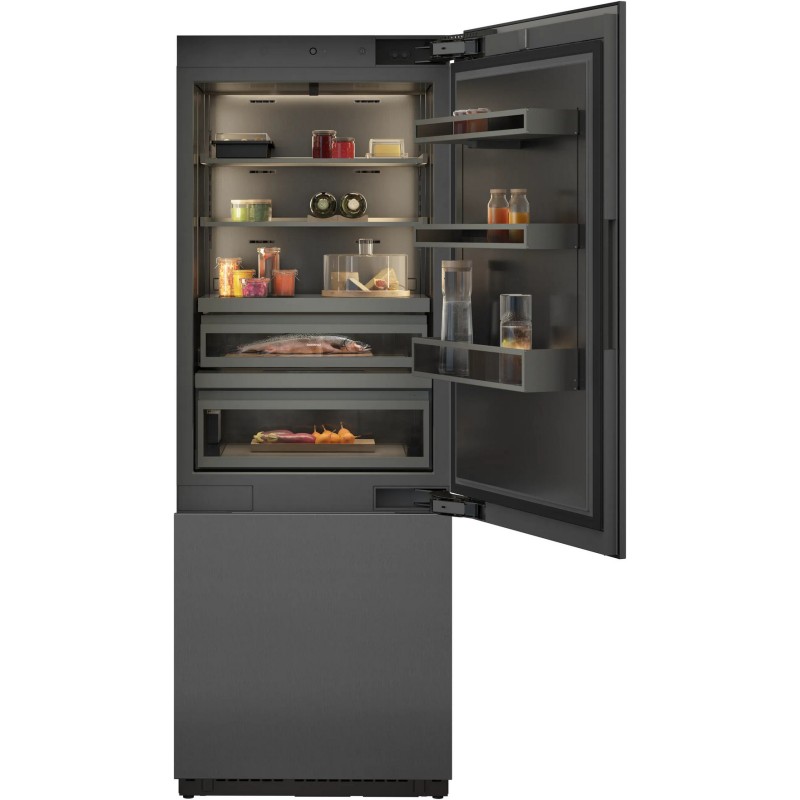

Gaggenau Vario RVB477190 75cm Built-in Fridge-Freezer

Gaggenau Vario RVB477190 75cm built-in fridge-freezer

Code RVB 477 190

Code EAN 4242006304362

Included
• 1 Egg tray with lid
• 1 Ice scoop
• 1 Ice cube tray
• 2 Oak bottle holders
• 1 Ethylene absorber

Highlights

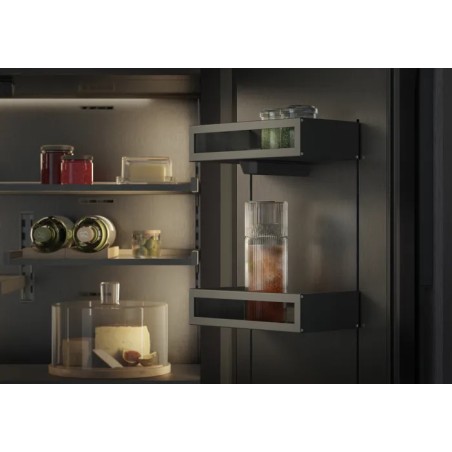

• Dark brushed stainless steel interior with solid anthracite-coloured aluminium elements
• Warm white, anti-glare LED light
• Doors equipped with Open Assist for integration into handle-less compositions
• Dark brushed stainless steel door interior
• Flexible and discreet runner system for shelves and door bins
• Solid anthracite-coloured aluminium supports in the inner door
• Professional freshness maintenance system with 1 Fresh Climate drawer and 1 chiller drawer
• Integrated ice maker with direct connection to the water supply
• Spacious, fully equipped freezer compartment pull-out with 2 internal drawers
• TFT full touch display
• Total capacity: 476 litres

Operation
• Door and drawer opening with Open Assist
• Soft closing door
• Automatic light and display response with interactions on the drawers
• Automatic brightness adjustment based on ambient light
• Easily accessible TFT full touch display
• Intuitive text display
• Animated quick guide for maintenance assistance

Technical features
• Double compressor with two independent cooling systems
• Dynamic cooling
• Automatic defrosting
• Constant air purification with two activated carbon filters
• Sleep mode certified by Star-K
• Open door and fault alarm

Selected digital services (Gaggenau Home Connect)
• Control and monitoring from remote control
• Content management via cameras
• Automatic selection of Fresh Climate drawer programmes (through object recognition)
• Personalization function to save personalised programmes

Refrigerator compartment
• Professional freshness maintenance system
• NoFrost system with rapid cooling
• Adjustable temperature from +2°C to +8°C
• 3 safety glass shelves with aluminium frame, adjustable in height
• 1 safety glass shelf
• Optimal preservation with warm, white, glare-free light with hidden LED light bars (3000 K)
• Extremely flexible positioning of door shelves
• 3 door shelves, 2 adjustable in height
• Total capacity of all refrigerator compartments: 316 litres

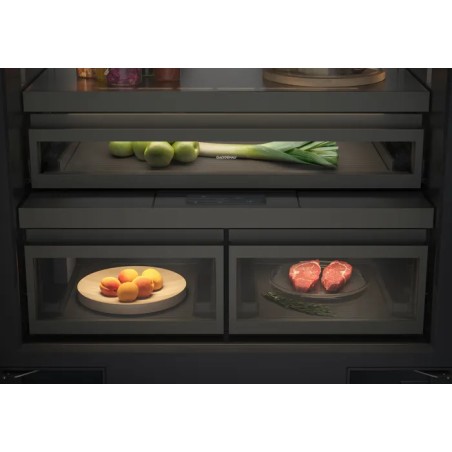

Fresh climate drawer
• 1 Fresh climate drawer with humidity control
• Adjustable temperature from -1°C to +2°C
• Ideal storage conditions for different foods thanks to dedicated programs (e.g. fruit, vegetables, meat)
• Individual temperature and humidity regulation
• Increased storage time with ethylene absorber
• Indirect lighting, transparent front
• Fully extractable, with soft closing

Chiller drawer
• Temperature depends on the refrigerator compartment (always 2K - 3K lower)
• Indirect lighting, transparent front
• Fully extractable, with soft closing

Freezer compartment
• NoFrost technology with rapid freezing to -30°C
• Freezer compartment ****
• Adjustable temperature from -16°C to -24°C
• Protection against freezer burn
• Protection against oxidation
• Freezing capacity 13 kg/24 hours
• 10-hour battery life in the event of a fault
• Spacious, fully removable freezer drawer with synchronous sliding telescopic guides
• 2 removable internal drawers
• Warm white, anti-glare LED light (3000 K)
• Total capacity of all freezer compartments: 160 litres

Ice maker
• Ice maker integrated into the freezer compartment, with direct connection to the water supply
• Can be deactivated
• Ice production approx. 3 kg/24 hours
• Removable ice cube container with 3 kg capacity
• Integrated, easily removable ice scoop
• Particle filter for water inlet, integrated in the ventilation grille area
• Filter saturation indicator on the TFT full touch display

Consumption values
• Energy efficiency class D on a scale of Energy efficiency classes from A to G
• Energy consumption 245 kWh/year
• Noise level 39 dB(A) re 1 pW

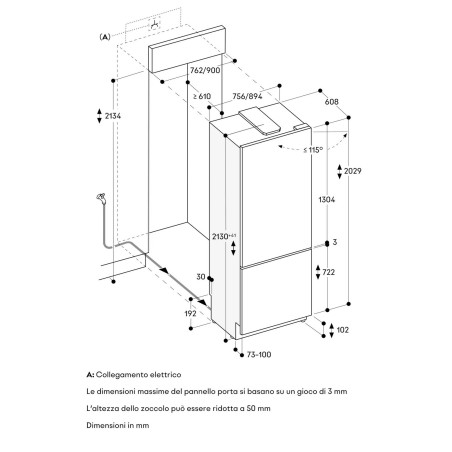

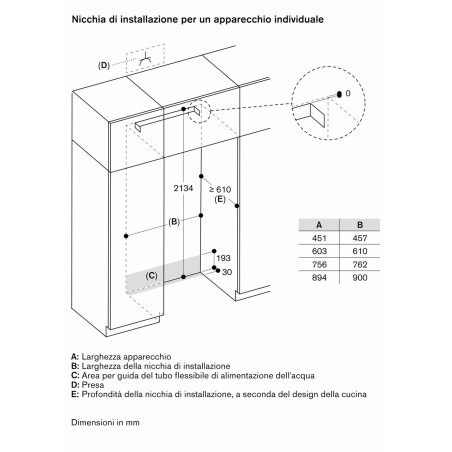

Installation precautions
• Flat hinges
• Right hinge, reversible

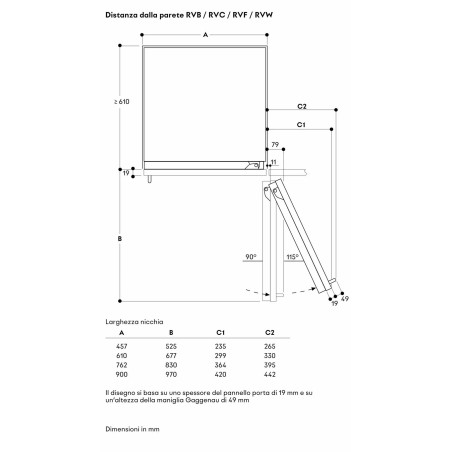

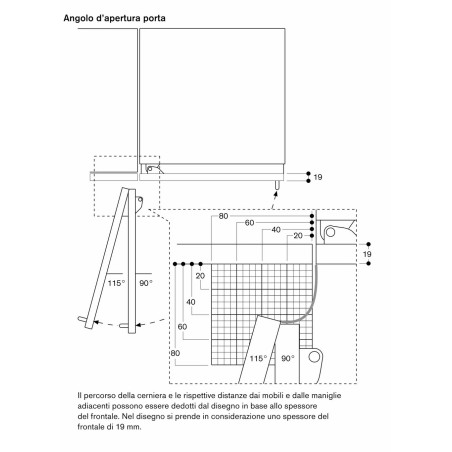

• Door opening angle 115°, can be locked at 90°

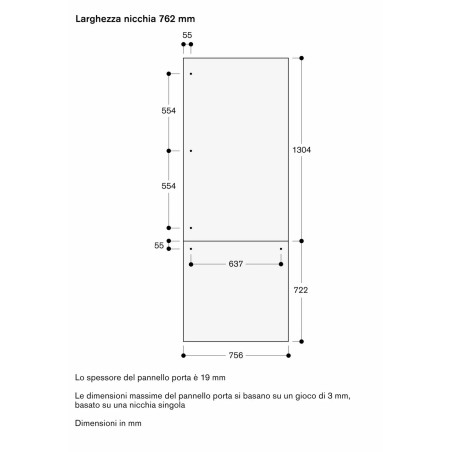

• Max. weight Door panels:
- Door 50/60 kg
- Drawer 14/17 kg
• When the sleep mode is active, the appliance can only be opened using a handle
• The water connection valve must be positioned close to the appliance and always accessible
• If the water pressure exceeds 0.8 MPa (8 bar), connect a bleed valve between the tap and the connection hose

Connection values
• Total absorption 0.300 kW
• Connection cable 3.0 m, with Schuko plug
• Water connection
• Connection cable length 1.8 m with 3/4" ring nut
• Water pressure from 2 to 8 bar

Installation accessories (sold separately)
• RA 425 110: Handle, steel, long. With 3 fixing brackets, length 1,131 mm, height 49 mm, distance between mounting holes 554 mm
• RA 425 710: Door handle, stainless steel, short. For RVB 477, with 2 fixing brackets, length 658 mm, height 49 mm, distance between mounting holes 637 mm
• RA 425 910: Handle, steel, short. For RVY 497, RVB 497 and RW 222, 2 fixing brackets, length 810 mm, height 49 mm, distance between mounting holes 787 mm
• RA 460 030: Connection element for vertically split fronts (for refrigerator-freezer combinations)
• RVA 421 720: Door panels, stainless steel dark brushed, with handle. For RVB 477, panel thickness 19 mm
• RVA 421 920: Door panels in dark brushed stainless steel, with handle. For RVB 497, panel thickness 19 mm
• RVA 423 141: Side profiles. 2 pieces, 3 mm
• RVA 428 720: Door panels in dark brushed stainless steel, without handle. For RVB 477, panel thickness 19 mm
• RVA 428 920: Door panels in dark brushed stainless steel, without handle. For RVB 497, panel thickness 19 mm
• RVA 460 000: Side-by-Side installation kit
• RVA 460 020: Side-by-Side installation kit. Required for side-by-side installations of a Vario Expressive series appliance with a Vario series appliance. 400
• RVA 460 900: Side-by-Side Installation Kit. Required for side-by-side installations of RVY 497, RVB 497, RVC 497 or RVF 497 (89.4 cm wide) when installed side-by-side in a niche previously used for side-by-side installation of RY 492, RB 492 or RC 492 (90.8 cm wide).
• RVA 460 910: Installation Kit. Required for installation of RVY 497, RVB 497, RVC 497 or RVF 497 (89.4 cm wide) in a niche previously used for installation of RY 492, RB 492 or RC 492 (90.8 cm wide).

Special Accessories (Sold Separately)
• RA 430 100: Anthracite container with transparent lid
• RA 450 012: Activated carbon water filter. For RVY, RVB and RVF
• RVA 438 040: Solid oak bottle holder with magnetic connector
• RVA 450 220: Activated carbon filter for air filtration system. 2 pieces

Special accessories (can be ordered as spare parts through the Gaggenau service centre)
• 11 057 720: Water inlet extension, 2 m with 3/4" connection
• 17 007 000: Ethylene absorber/refill kit. For placement in the Fresh climate drawer
• 17 006 999: Ethylene absorber/starter kit. For placement in the Fresh climate drawer
