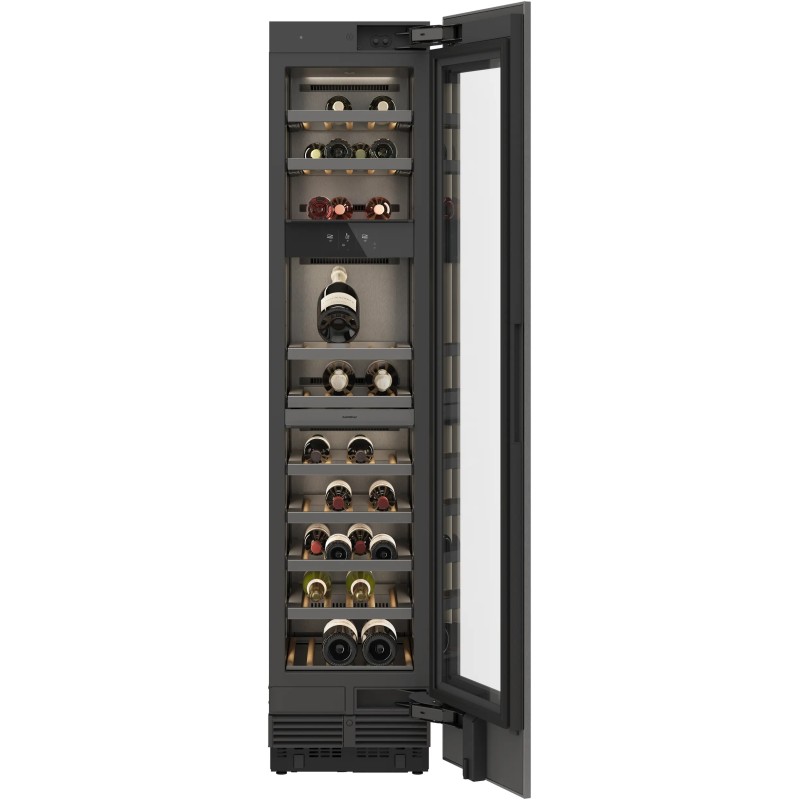

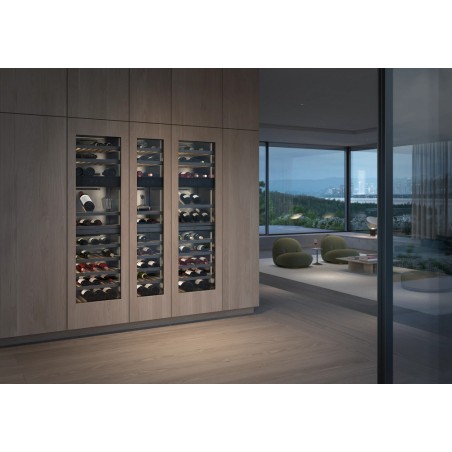

Gaggenau Vario RVW417170 built-in wine cellar with 45 cm glass door

Gaggenau Vario RVW417170 built-in wine cellar with 45 cm glass door

Cod. RVW 417 170

Cod. EAN 4242006316853

Included
• 2 bottle holders for divider shelves
• 1 display for one bottle of wine

Highlights
• Automatic rapid cooling programs (sensor-based) to precisely reach the ideal serving temperature
• 3 independently controllable climate zones, 2 of which have automatic rapid cooling programs with sensors
• Constant temperatures with precise control from +5°C to +20°C (manual mode) and from +3°C to +20°C (automatic rapid cooling programs)
• Humidity control
• Low-vibration operation for optimal long-term storage conditions
• Dark brushed stainless steel interior
• Fully removable bottle trays with hidden telescopic runners and soft-closing system
• Oak wood bottle trays and anthracite-coloured solid aluminium
• Warm white, glare-free LED light for optimal wine presentation in all climate zones
• 3 predefined lighting scenarios and customisable settings for perfect integration into the home environment
• Doors equipped with Open Assist with two options:
- Push-to-open function for integration into handle-less fronts
- Pull-to-open function for easy opening of the door with a handle
• Full touch TFT display
• Total capacity 68 bottles (considering standard 0.75 litre bottles)

Operation
• Door opening with Open Assist
• Soft-closing door
• Automatic response of light and display with interactions on the drawers
• Automatic brightness adjustment based on ambient light
• Easily accessible full touch TFT display
• Intuitive text display
• Quick animated guide for maintenance assistance
• Lockable door (using the RVA lock 420 010)

Technical features
• Dynamic cooling
• Automatic defrosting with evaporation of defrost water
• IR sensor for automatic rapid wine cooling programs
• Constant air purification via activated carbon filter in every climate zone
• UV protection (UV transmission: 19%)
• Sleep mode certified by Star-K
• When sleep mode is active, the appliance can only be opened using the handle
• Door open and fault alarm

Selected digital services (Gaggenau Home Connect)
• Remote control and monitoring
• Personalization function to save customized rapid cooling programs
• Predefined lighting scenarios with the option of customizing (Favorites)

Features

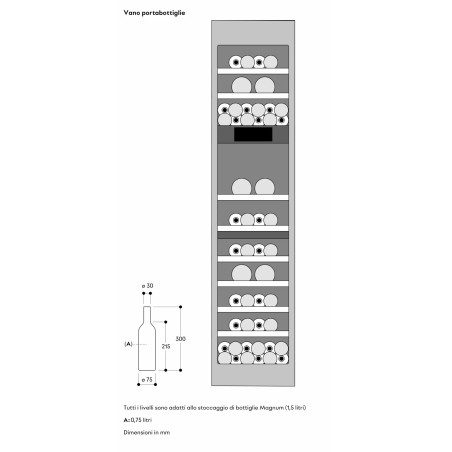

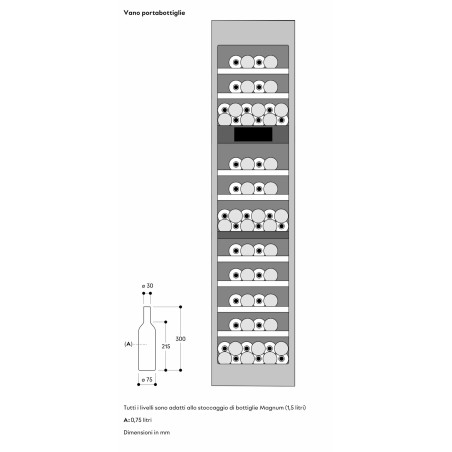

• 10 bottle shelves, 8 of which are fully pull-out shelves
• Space for up to 11 bottle shelves
• Flexible interior configuration thanks to a variety of special accessories
• Possibility of storing Magnum bottles on each shelf (up to 2 Magnum bottles)
• Optimal wine presentation with hidden LED light strips, warm white and glare-free light (3000 K) in every climate zone
• Display to highlight a bottle of wine
• Total capacity: 279 litres

Consumption values
• Energy efficiency class F on a scale of energy efficiency classes from A to G
• Energy consumption 120 kWh/year
• Noise level 39 dB(A) re 1 pW

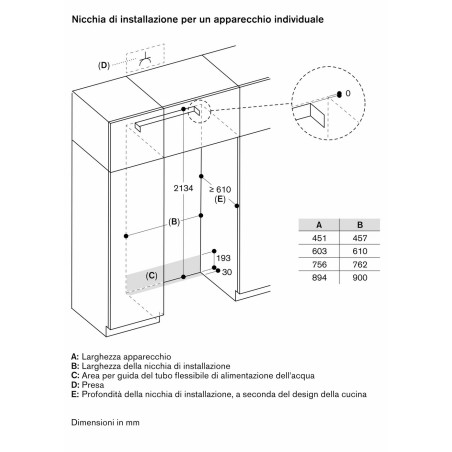

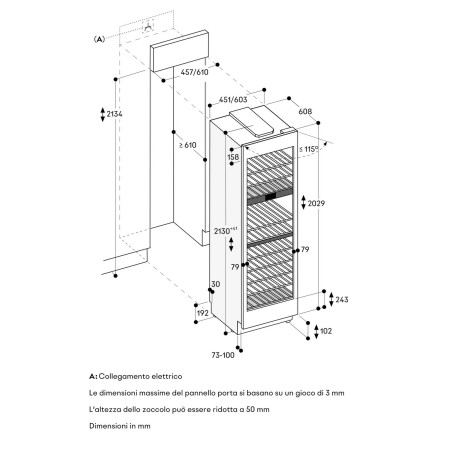

Installation precautions
• Flat hinges
• Right hinge, reversible

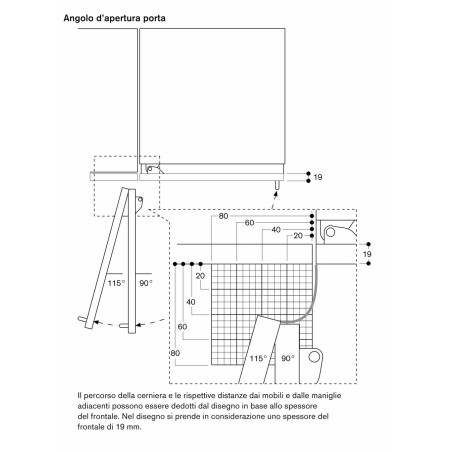

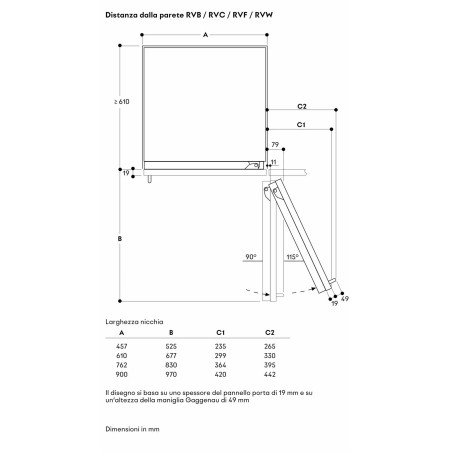

• Door opening angle of 115°, lockable at 90°
• Max. door frame weight: 74 kg
• Do not transport or use above 2000 metres above sea level

Connection values
• Total power consumption 0.300 kW
• Connection cable 3.0 m, with Schuko plug

Installation accessories (sold separately)

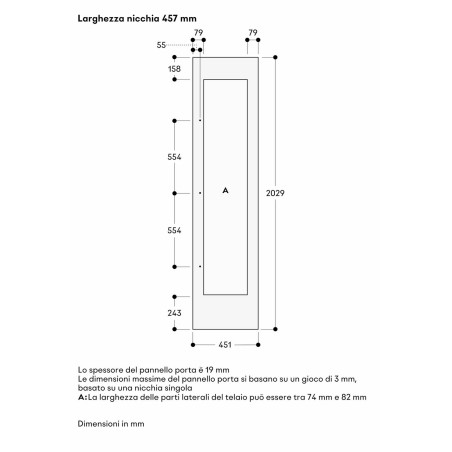

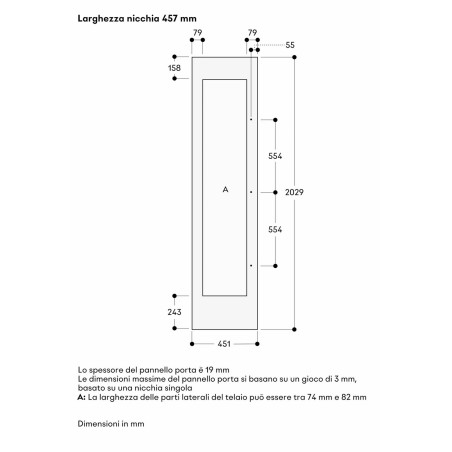

• RA 425 110: Handle, steel, long. With 3 fixing brackets, length 1,131 mm, height 49 mm, distance between mounting bracket holes 554 mm
• RA 460 020: Connection element for vertically split fronts (for flush fronts)
• RVA 420 010: Door lock. For RVW 467 and RVW 417

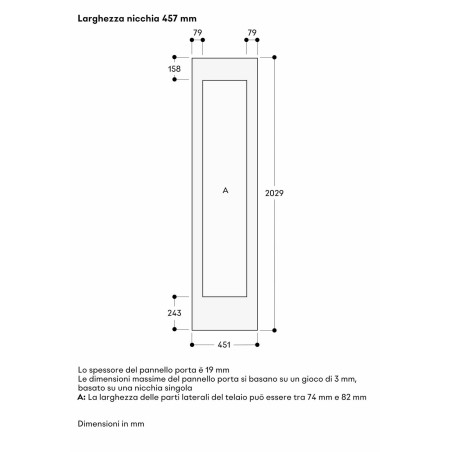

• RVA 421 122L: Door frame in dark brushed stainless steel, with handle. For 45.7 cm wide appliances, left-hand opening, 19 mm panel thickness
• RVA 421 122R: Door frame in dark brushed stainless steel, with handle. For 45.7 cm wide appliances, right-hand opening, 19 mm panel thickness
• RVA 428 122: Door frame in dark brushed stainless steel, without handle. For 45.7 cm wide appliances, right-hand opening, 19 mm panel thickness
• RVA 430 000: Screw hole cover set. 8 pieces
• RVA 460 000: Side-by-Side installation kit
• RVA 460 020: Side-by-Side installation kit. Required for side-by-side installation of a Vario Expressive series appliance with a Vario 400 series appliance.
• RVA 466 110: Accessory for changing the door opening direction. For RVW 45.7 cm wide.

Special accessories (sold separately)
• RVA 450 220: Activated carbon filters for air filtration system.
• RVA 491 160: Fully extendable bottle tray with concealed telescopic runners. Oak and anthracite aluminum. Soft-closing system. For 45.7 cm wide appliances.
• RVA 493 060: Display for one bottle of wine. Oak and anthracite aluminum. 1 piece.
• RVA 494 060: Removable oak tray. Suitable for presenting decanters and opened bottles. For RVW 467 and RVW 417
• RVA 495 000: Wine glass holder. For RVW 467 and RVW 417
• RVA 498 160: Bottle holder for practical storage on the divider shelf. Oak and anthracite aluminum. For appliances 45.7 cm wide.
