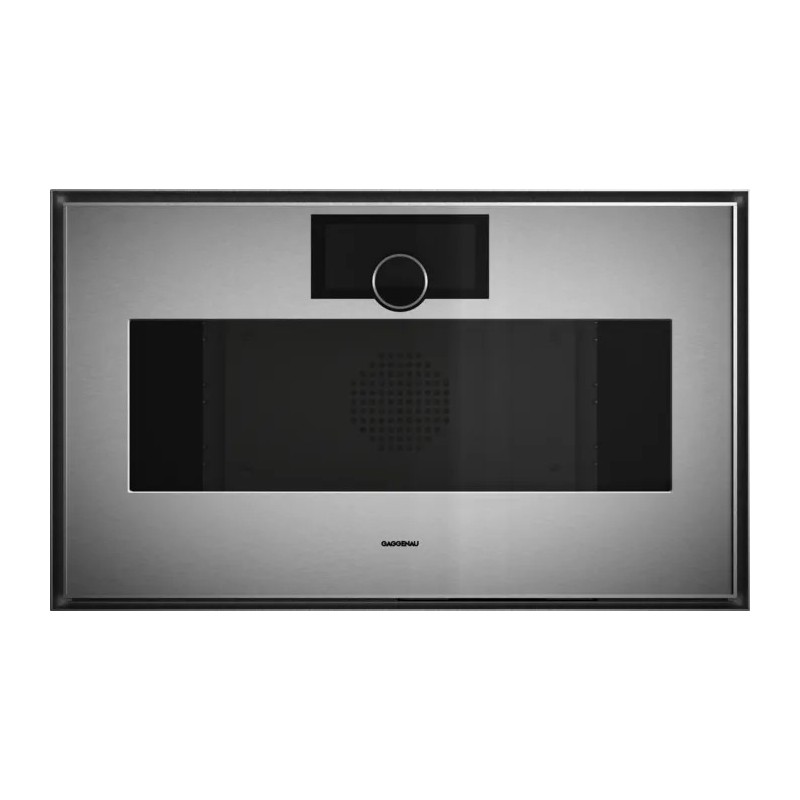

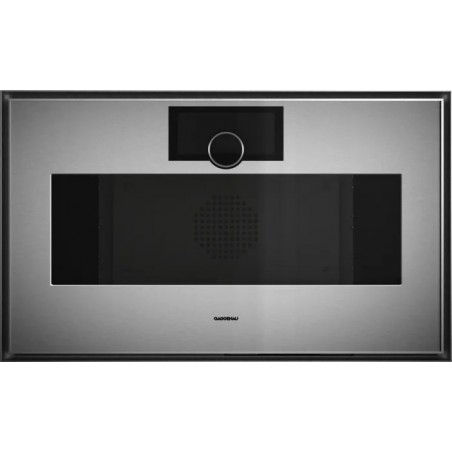

Gaggenau Compact built-in combi steam oven with right hinges GS480120 stainless steel finish and smoked glass 76 cm

Cod. GS 480 120

Cod. EAN 4242006304850

Highlights
— Handle-free glass door with electronic door opening
— Full-touch display with stainless steel control ring
— User recognition with light and display activation
— Direct water connection with filling and draining
— Steam generation outside the cooking compartment
— Automatic cleaning with perfect results, even with heavy soiling
— Hot air from 30°C to 230°C, combinable with humidity levels of 0%, 30%, 60%, 80% or 100%
— Sous-vide cooking with precise temperature regulation
— Full-surface grill behind glass ceramic, combinable with hot air up to 230°C and steam
— Automatic programs and recommended settings
— Net volume 50 liters

Cooking methods / Programs
Hot air + 100% humidity
Hot air + 80% humidity
Hot air + 60% humidity
Hot air + 30% humidity
Hot air + 0% humidity
Grill + fan
Grill level 1 + humidity
Grill level 2 + humidity
Sous-vide cooking
Low temperature cooking
Proofing
Keep warm
Defrosting
Regeneration
200 programs (automatic programs and recommended settings)
Possibility to save up to 30 favorite programs

Operation
Side-opening door with a 110° opening angle
Electronic door opening

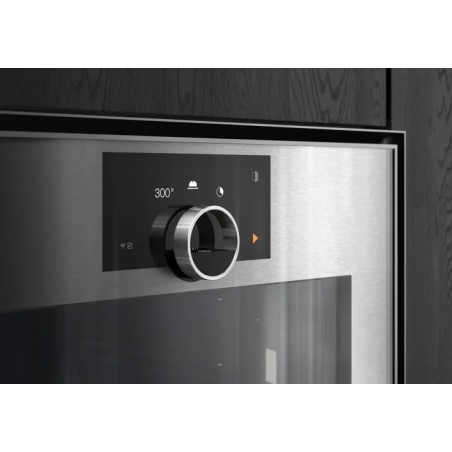

Full touch display with control ring Control
42 languages available for the display
User detection, adjustable distance
Informative texts for more information
Animated quick guides to facilitate the operation of the appliance

Features
2 kW full-surface grill behind glass ceramic
The hot air fan rotates in both directions for ideal heat distribution
Connection for temperature probe (compatible oven temperature probe)
The grill can be briefly added in hot air mode for extra browning
Misting for targeted addition of humidity
Steam removal to prevent moisture from settling on furniture fronts
Automatic boiling point detection
Precise temperature control with current temperature display
Timer functions: cooking time, end of cooking time, countdown
Programmable automatic door opening at the end of cooking to prevent overcooking
Optimal visibility of food thanks to to the side lighting
3-level side supports

Selected digital services (Gaggenau Home Connect)
Remote control and monitoring
Cooking time estimation when using the temperature probe
Door opening via voice assistant

Safety
Child lock to prevent accidental switching on or operating the appliance
Electronic door lock to prevent inadvertent opening of the appliance door
Safety switch-off
Thermal insulated door with triple glass
Cooled housing with thermal protection

Cleaning
Hygienic stainless steel cooking interior
Self-cleaning
Automatic descaling of the steam generator
Drying program
Automatic drying of the cavity at the end of the cooking process
All removable parts and accessories can be washed in dishwasher

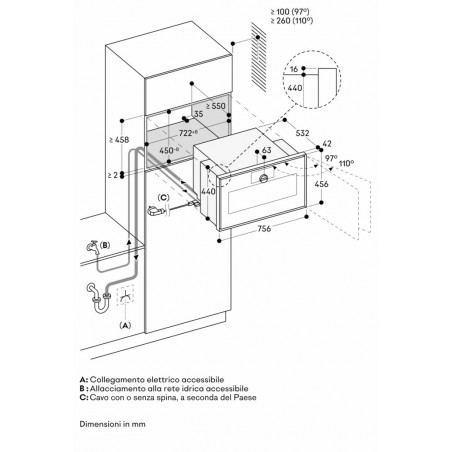

Planning notes
Plan the niche without a back panel
Door hinge not reversible
No other electrical appliances must be installed above the GS
The outlet hose must never be positioned higher than the lower edge of the appliance. Furthermore, the outlet pipe must be at least 100 mm lower than the appliance outlet.
The inlet and outlet pipes can be extended once.
The outlet pipe must not be longer than 5 m.
The water connection for the inlet pipe must always be accessible and must not be located directly behind the appliance.
The connection of the outlet pipe to the siphon must not be located directly behind the appliance and must be accessible.
Protrusion from the front of the appliance to the cabinet of 42 mm.
Consider the protrusion when planning to open drawers next to the appliance.
When planning a solution close to a wall, pay attention to the side-opening door and the minimum distance required from the wall.
The door opening angle of approximately 110° can be reduced to approximately 97° if necessary.
The power socket must be accessible and located outside the built-in niche.

Values connection
Energy efficiency class A with a range of energy efficiency classes from A+++ to D
Total power consumption 3.1 kW
Connection to cold water only
To enable water detection, the softened water must have a conductivity > 200μS/cm
Inlet hose 3.0 m with ISO228-G 3/4'' thread (Ø 26.4 mm), extendable
Outlet hose (Ø 25 mm) 3.0 m (HT-Hose), extendable
Connecting cable 1.75 m with plug

Included in delivery
1 stainless steel baking tray, perforated
1 stainless steel baking tray, unperforated
1 wire rack
1 water inlet hose (3 m)
1 water drain hose (3 m)
4 cleaning cartridges

Installation accessories
GA 301 010 Adjustable intermediate shelf. For vertical combination. Including mounting brackets, cover and screws
GZ 010 011 Extension for water inlet and outlet (2 m)

Special accessories
BA 010 050 Temperature probe. Compatible with GO, GS, GM
BA 010 301 Triple telescopic slide-out rails for combi-steam ovens
BA 020 361 Stainless steel baking tray, unperforated, 46 mm deep, 5.4 l
BA 020 370 Stainless steel baking tray, perforated, 40 mm deep, 5 l
BA 020 382 Baking tray, unperforated, PFAS-free non-stick coating, 46 mm deep, 5.4 l
BA 020 391 Baking tray, perforated, PFAS-free non-stick coating, 40 mm deep, 5 l
BA 046 118 Glass baking tray. 24 mm deep
CL S10 040 Cleaning cartridges, set of 4. For combi-steamers
GN 010 330 Adapter for Gastronorm trays and baking dish
GN 114 130 Gastronorm tray, stainless steel, GN 1/3. Unperforated, 40 mm deep, 1.5 l
GN 114 230 Gastronorm tray, stainless steel, GN 2/3. Unperforated, 40 mm deep, 3 l
GN 124 130 Gastronorm tray, stainless steel, GN 1/3. Perforated, 40 mm deep, 1.5 l
GN 124 230 Gastronorm tray, stainless steel, GN 2/3. Perforated, 40 mm deep, 3 l
GN 340 230 Gastronorm roasting dish, die-cast aluminum, GN 2/3, 165 mm high, non-stick. The lower and upper sections can also be used as oven-safe containers, with depths of 100 and 65 mm. For use in combi-steam ovens in combination with the GN 010 330 adapter and the BA 010 301 pull-out system.
17 002 490 Descaling tablets can be ordered through the service center.
