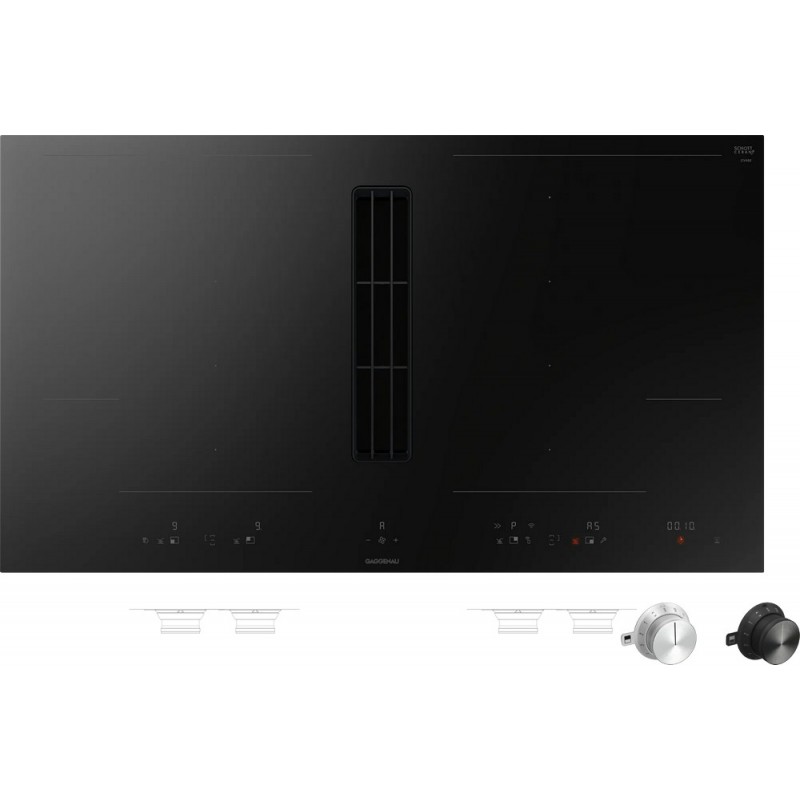

Gaggenau 90 cm CV 492 105 induction hob with integrated hood

Cod. CV 492 105

• Flex function to combine rectangular cooking zones
• Automatic extraction function
• Large metal grease filter, easy to remove, dishwasher safe
• Positioning free of pots and pans inside the cooking zones with automatic extension up to 30 cm in width
• Extremely efficient extraction system integrated into the hob
• Low noise and high energy saving motor
• Air expulsion or recirculation system
• Integrated activated carbon filter easily removable from the top for air recirculation
• Without frame for insertion flush with the top

Cooking zones
• 2 Flex zones each measuring 20x23 cm (2200 W, with 3700 W booster), if combined 40x23 cm (3300 W, with 3700 W booster), with automatic extension up to at 30x32 cm (3300 W, with 3700 W booster)
• 2 Flex zones each of 20x23 cm (2200 W, with 3700 W booster), if combined 40x23 cm (3300 W, with 3700 W booster), with extension automatic up to 30x32 cm (3300 W, with 3700 W booster)

Performance
• Performance and noise, 3 power levels + intensive
• Max suction power according to EN 61591
Extraction: 530 /636m3/h
Recirculation: 487 / 611m3/h
• Sound power according to EN 60704-3
Extraction: 70 / 74dB (A) re 1 pW
Recirculation: 67 / 72dB (A) re 1 pW

Operation

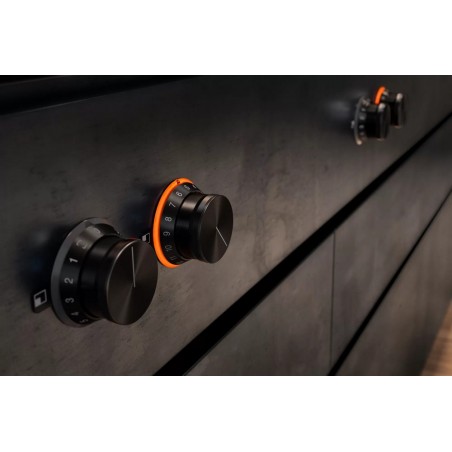

• Knobs with luminous ring and silk-screen printing for the cooking zones and power levels
• 12-level electronic power control
• User friendly control with 2-color display (white/orange)
• 3-level control + 1 intensive level of ventilation system

Features
• Flex function for rectangular areas
• Frying sensor
• Booster function
• Operation of the ventilation system controlled by sensors
• Automatic activation of the ventilation system when a cooking zone is used
• Interval extraction, 6 minutes
• Post-cooking function controlled by sensors or manually
• Filter saturation indicator for grease filter and activated carbon filter
• Removable and dishwasher-safe filter
• Suction cavity cover element in high-grade black zinc, dishwasher-safe
• BLDC brushless electromagnetic motor operating technology for top efficiency
• Optimized interior for extremely efficient air circulation
• Stopwatch
• Minute minder
• Memory function
• Options menu
• Power Management function: electronic regulation and limitation of electrical absorption according to need

Home Connect
• Remote control and monitoring of the extraction unit
• Remote control of cooking zones
• Remote diagnosis
• Integrated digital services (Home Connect) with the wireless home network via WiFi
• The operation of the Home Connect mode depends on the availability of the Home Connect service in each country. For further information visit www.home-connect.com

Consumption values
• Energy efficiency class A (On a scale of energy efficiency classes from A+++ a D)
• Energy consumption 56.9 kWh/ year
• Ventilation efficiency class: A
• Filter efficiency class: B
• Sound level min. 61 db / max. 70 db with normal extraction level

Safety
• Operation indicator light
• Pan recognition system
• 2-way residual heat indicator stadiums
• Child safety
• Automatic safety switch-off
• Top protection dishwasher safe
• Liquid collection container with 0.9 liter capacity, dishwasher safe

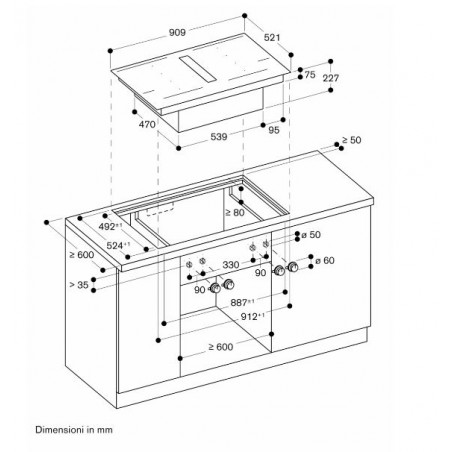

Mounting precautions
• Minimum width of mobile base: 60 cm
• Immersion depth in the worktop: min. 60 cm with non-ducted recirculation, min 65 cm with ducted recirculation/extraction
• Depth in the cabinet 227 mm
• The non-ducted recirculation set CA 082 010 requires a vertical opening of min. 25 mm behind the rear panel of the cabinet. 50 mm is recommended for optimal performance
• The air outlet on the back of the appliance is directly accessible with a flat duct (DN 150)
• In air extraction mode a unidirectional deflector with a maximum opening pressure of 65 Pa. For optimal performance in air recirculation, we recommend an outflow surface of at least 440 cm²
• To be used only with ferromagnetic pans
• The efficient suction motor allows a ducting system of up to 8 meters and 3 90° bends, with the guarantee of satisfactory performance
• The appliance can be installed from below
• Weight of the appliance approx. 32 kg
• The appliance must be easily accessible from below
• Ensure greater ventilation of the room if the hood is installed in a room where there is a functioning fireplace
• Installation is possible on floors stone, synthetic or solid wood. The thermal resistance and watertightness of the edges of the cut must be respected. Regarding other materials please consult the manufacturer of the worktop
• The load-bearing capacity and stability, particularly in the case of thin worktops, must be supported by suitable substructures. Take into account the weight of the appliance and additional loads
• The groove must be continuous and uniform, so as to ensure the correct positioning of the appliance on the gasket. Do not use a discontinuous covering
• The size of the gap between the hob and the top varies based on the precision of the notch on the worktop

Connection values
• Total absorption 7.4 kW
• Connection cable length 1.5 m without plug
• Consumption in standby/display OFF 0.5 W
• Consumption in standby/network 2 W
/>• Check the manual to turn off the WiFi module

N.B.: The knobs are optional accessories
