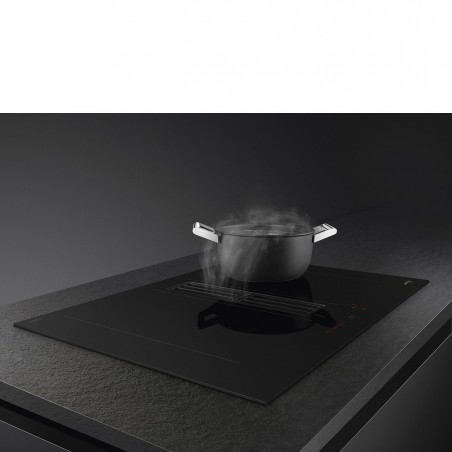

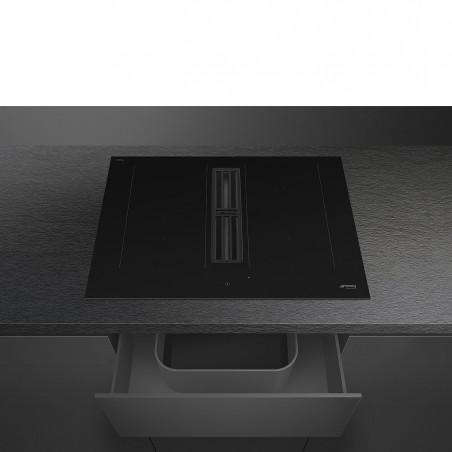

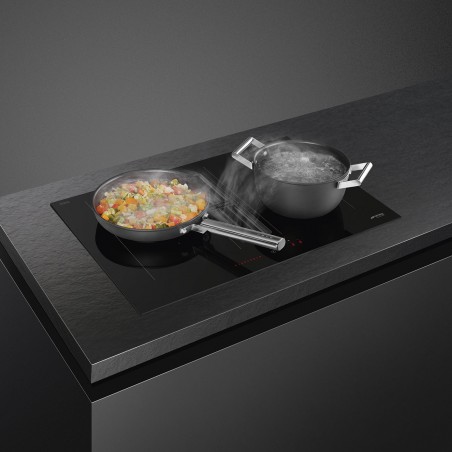

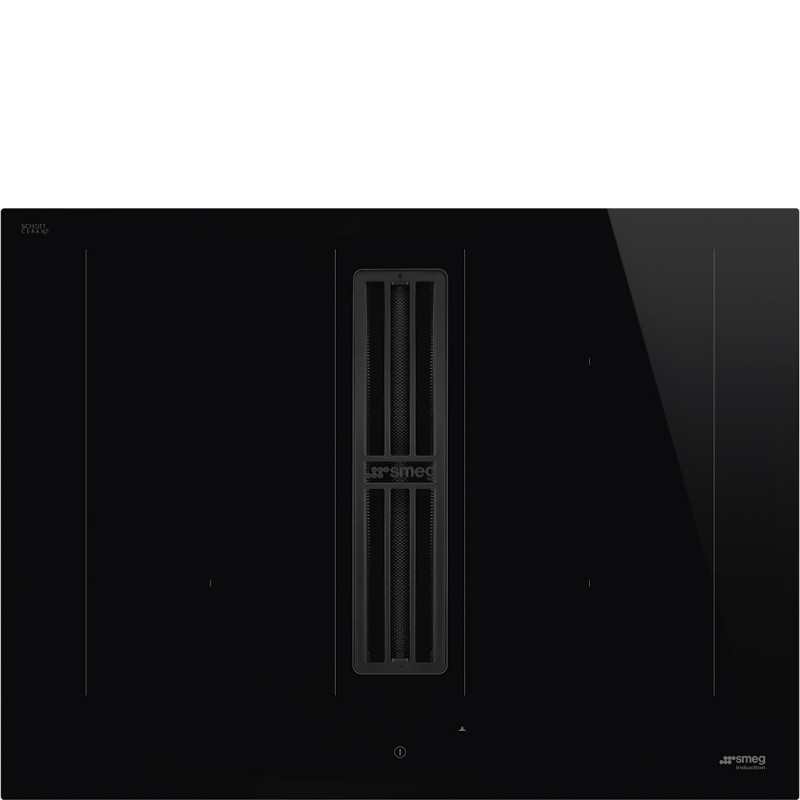

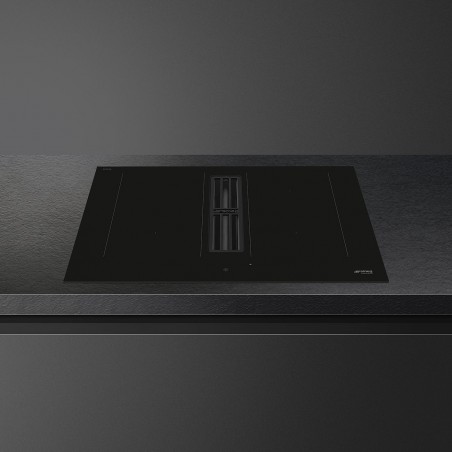

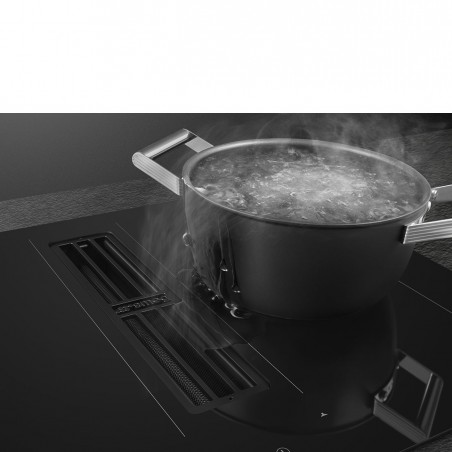

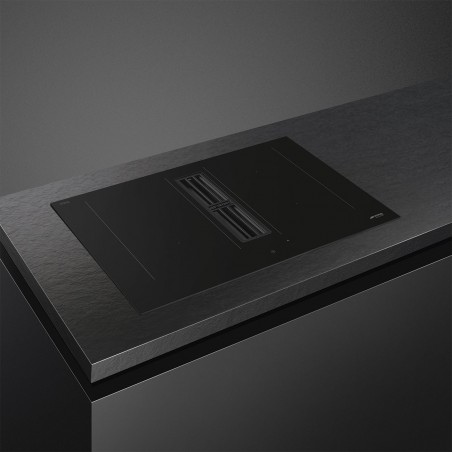

Smeg HOBD472D2 70cm black glass ceramic induction hob with integrated hood

Cod. HOBD472D2

Cod. EAN 8017709341862

Type:
• Family: Hob
• Size: 70 cm
• Type: Induction with integrated hood
• Filtering: Expulsion
• Built-in: Semi-flush with the possibility of flush-mounted installation
• Power supply: Electric
• Electronic control

Aesthetics:
• Color: Black
• Finish: Glass
• Aesthetics: Universal
• Material: Glass
• Glass type: Ceramic
• Type of control adjustment: EVO Slider
• Control position: Front
• Slider
• Control LED color: Red
• Glass edge: Straight
• Grids: Stainless steel
• Color screen printing: Grey

Programs / Functions:
• Total number of cooking zones: 4
• Number of induction cooking zones: 4
• Time programming options: Automatic switch-off
• Number of cooking zones with booster: 4
• Number of Flexible Zones: 2
• Main on/off button
• Power levels: 9

Options:

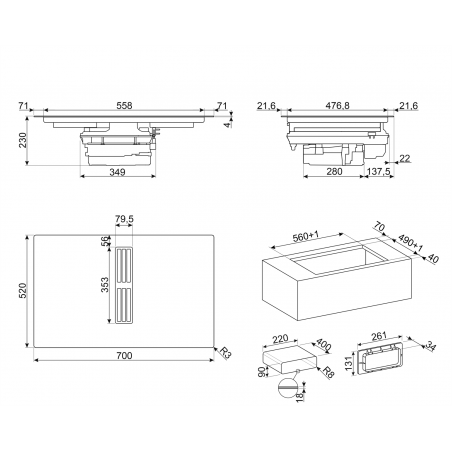

• Built-in hole: 490x560 mm
• Multizone option
• Flexible Zone type: MultiZone
• End of cooking timer: 4
• Pause option
• Minute minder: 1
• End of cooking acoustic alarm
• Remaining time indicator
• Power Limiter option: Advance
• Power Limiter option: Power in W: 2800, 3500, 4500, 7400 W
• Show Room Demo option
• Button Lock / Child Safety option
• Automatic heat maintenance function
• Bridge option
• Cleaning option
• Quick start
• Quick level selection

Cooking zones:
• 1st zone position: Front left 21.0X19.0 cm - 2.10 kW (3.00 kW)
• 2nd zone position: Rear left 21.0X19.0 cm - 2.10 kW (3.00 kW)
• 3rd zone position: Rear right 21.0X19.0 cm - 2.10 kW (3.00 kW)
• 4th zone position: Front right 21.0X19.0 cm - 2.10 kW (3.00 kW)
• Left multizone 39.5x22.0 cm - 3.70 kW
• Right multizone 39.5x22.0 cm - 3.70 kW

Technical Features:
• Automatic adaptation to the diameter of the pan
• Automatic detection of pan position and control
• Detection of the presence of the pan: min 9 cm
• Auto-stop in case of overflow
• Residual heat indicator
• Protection against accidental ignition
• Annual energy efficiency (AEC): 29 kWh/a

Electrical Connection:
• Rated electrical connection data: 7620 W
• Current: 33 A
• Voltage (V): 220-240 V
• Voltage 2 (V): 380-415 V
• Frequency: 50/60 Hz
• Type of electrical cable supplied, Single and Two-phase
• Power cable length: 120 cm

Controls (hood):
• Hood control adjustment: Touch Capacitive
• LED colour: Red
• Display

Programs / Functions (hood):
• No. of speeds: 8
• No. of intensive speeds: 2
• Hood time programming options: Delay
• Other options: Filtering Kit included
• Auto-Vent
• Automatic connection between hob and integrated hood

Technical Features (hood):
• Maximum capacity suction in free mode (P0): 650 m³/h
• Motor power: 220 W
• Number of filters: 1
• Grease filters: Aluminium
• Standard carbon filters: Regenerable
• Filter change indicator

Performance / Energy Label (hood):
• Energy efficiency class (EEC): A+
• Fluid dynamic efficiency class (FDEC): A
• Grease filtering efficiency class (GFEC): B
• Fluid dynamic efficiency (FDE): 32.10
• Lighting efficiency (LE): 0.0 lux/W
• Grease filtering efficiency (GFE): 85.1 %
• Air flow rate at minimum speed (Qmin): 230 m3/h
• Air flow rate at maximum speed (Qmax): 500 m3/h
• Air flow rate at intensive speed (Qboost): 630 m3/h
• Weighted acoustic power emission at minimum speed (SPEmin): 49 dB(A)
• Weighted acoustic power emission at maximum speed (SPEmax): 68 dB(A)
• Weighted acoustic power emission at intensive speed (SPEboost): 73 dB(A)
• Power consumption in Off-mode (Po): 0.49 W
• Time increase factor (F): 0.8
• Energy efficiency index: 44.2
• Air flow rate measured in the maximum efficiency condition (Qbep): 320 m3/h
• Air pressure measured in the maximum efficiency condition (Pbep): 502 Pa
• Electrical power absorbed in the maximum efficiency condition (Wbep): 139 W
• Sound level in the highest configuration (Lwa): 68 dB(A)

Logistics information:
• Product dimensions (mm): 230x700x520
• Product depth: 520 mm
• Product width: 700 mm
• Product height: 230 mm
• Net weight (kg): 17,000 kg
• Gross weight (kg): 22,000 kg
• Product width packed: 870 mm
• Depth of the packed product: 630 mm
• Height of the packed product: 480 mm
• Dimensions of the packed product (mm): 480X870X630
• Packaging: Cardboard
• Packaging composition - paper and cardboard (kg): 5.897 kg
• Packaging composition - polystyrene (kg): 0.000 kg
• Packaging composition - wood (kg): 0.000 kg
• Packaging composition - plastic (kg): 0.103 kg
