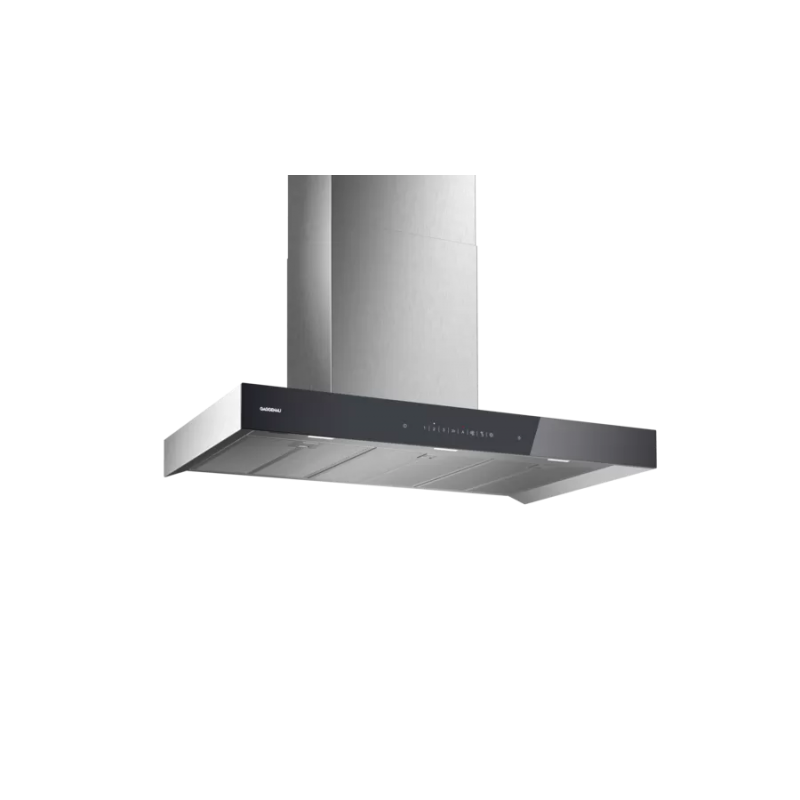

Gaggenau Wall hood AW 240 191 stainless steel finish with 90 cm anthracite glass control panel

Cod. AW 240 191

Cod. EAN 4242006281069

Performance:

• Odor reduction in recirculation mode: 79%

Features:

• 3 electronically controlled power levels and intensive operating mode
• Automatic sensor operation option
• Grease filter saturation indicator
• Activated carbon filter saturation indicator
• Metal filter, dishwasher safe
• Interval suction, 6 minutes
• Equipped with hob-hood control module
• Adjustable white LED light (3500 k)
• Light colors in different shades (2700 - 5000 K) adjustable via Home Connect
• Light power 4 x FM5-04 LED 3W
• Lighting 551 lx dimmable
• BLDC brushless electromagnetic motor operating technology for top efficiency
• Integrated insulation for low noise operation
• Optimized steam collection area a for airflow with filters slightly inward facing
• The package includes a non-return valve
• Simplified mounting and alignment system
• Home Connect: Digital services integrated with the home network via LAN cable (recommended) or via WiFi
• The operation of the Home Connect mode depends on the availability of the Home Connect service in each country

Consumption values:

• Energy consumption 44.5 kWh / year
• Ventilation efficiency class: A
• Lighting efficiency class: A
• Filter efficiency class: B
• Min. 44 db / max. 64 db with normal suction level

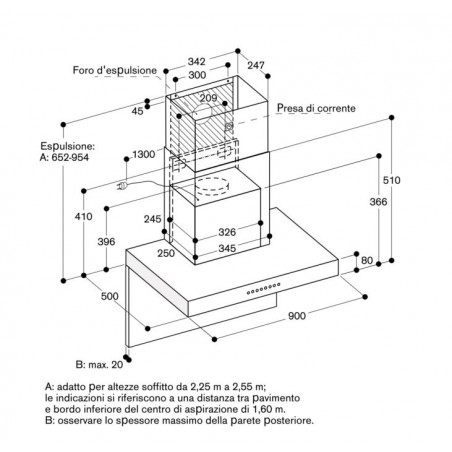

Assembly precautions:

• The package includes the channel with dimensions from 572 mm to 874 mm
• Min. from the gas hobs below: 65 cm (if the absorption of the hob is greater than 12 kW min. 70 cm)
• Min. from the electric hobs below: 55 cm
• The recirculation operating kit with activated carbon filter can be installed on the telescopic duct

Connection values :

• Total absorption 269 W
• 1.3 m connection cable with Schuko plug
• Check the manual to switch off the WiFi module
