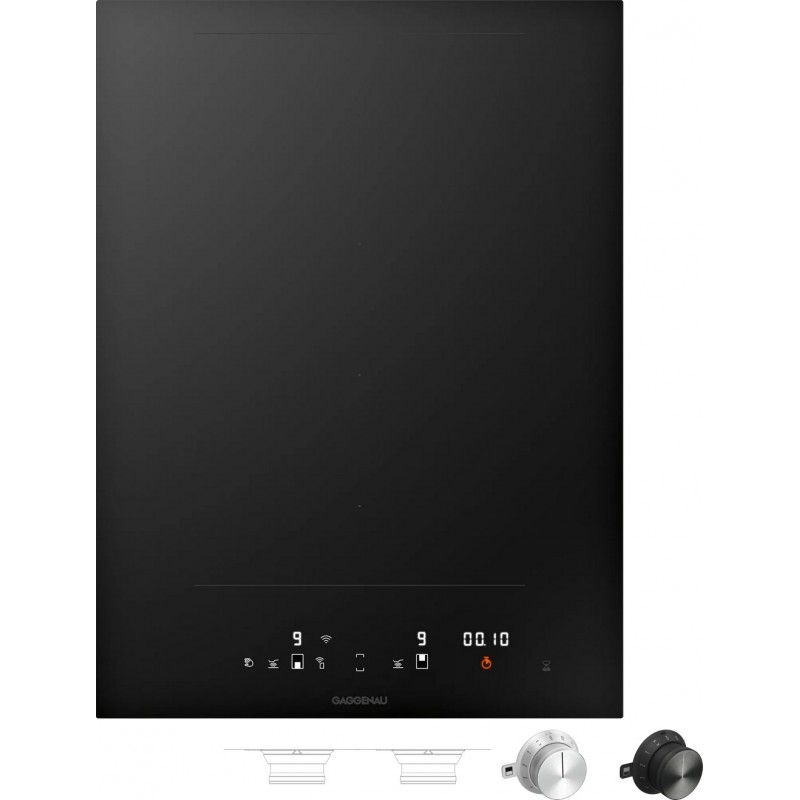

Gaggenau 38 cm VI 422 105 induction hob

Cod. VI 422 105

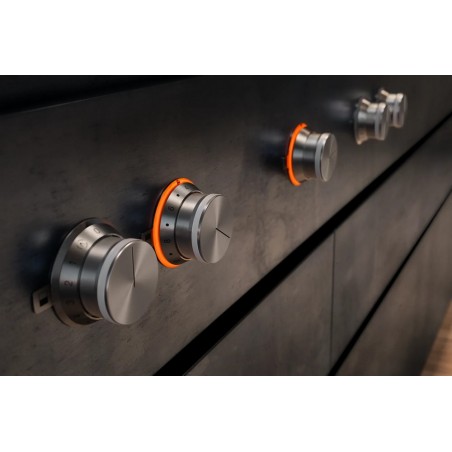

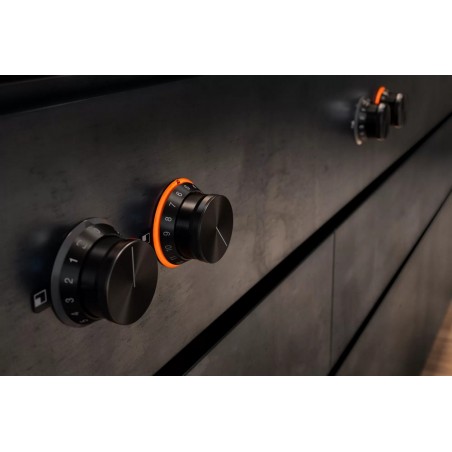

• Solid stainless steel knobs, also available in black finish, for precise and customizable control
• Flex function to combine rectangular cooking zones
• Free positioning of pots and pans inside the rectangular cooking zones
• Without frame for insertion flush with the top

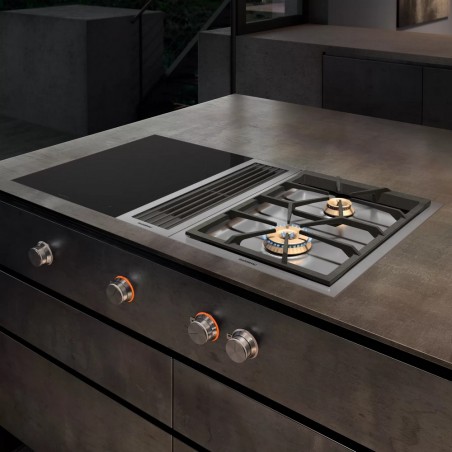

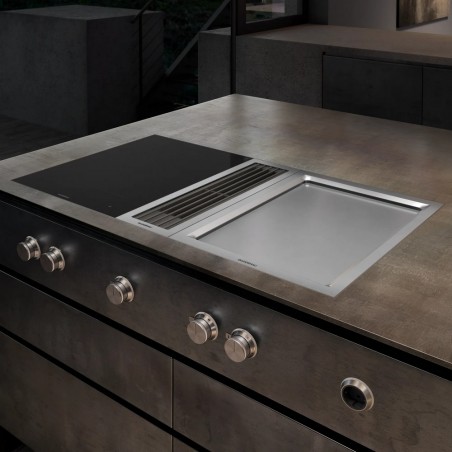

• Perfect combination with all the appliances of the Vario 400 series

Cooking zones
• 2 Flexi zones measuring 20x24 cm (2200 W, with 3700 W booster); if combined 40x24 cm (3300 W, with 3700 W booster)

Operation
• Knobs with luminous ring and silk-screen printing for the cooking zones and power levels
• 12-level electronic power control
• User friendly control with 2-color display (white/orange)

Features
• Function Flex for rectangular zones
• Frying sensor
• Booster function
• Stopwatch
• Minute minder
• Options menu
• Power Management function: electronic regulation and limitation of electrical absorption depending on the need

Home Connect

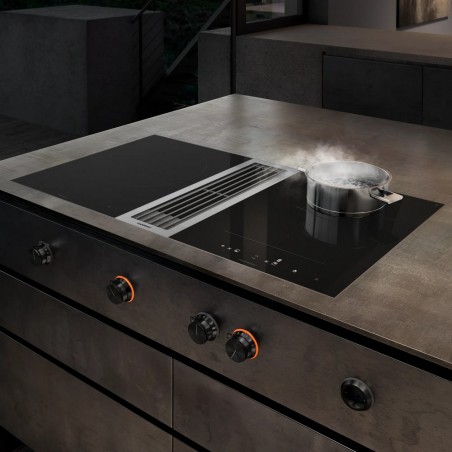

• Integrated extraction system control (with compatible hood model)
• Control from remote
• Remote diagnosis
• Integrated digital services (Home Connect) with the wireless home network via WiFi
• The operation of the Home Connect mode depends on the availability of the Home Connect service in each country . For further information visit www.home-connect.com

Safety
• Operation indicator light
• Pan recognition system
• Indicator 2-stage residual heat
• Safety switch

Assembly precautions
• It is advisable to align knobs and cooking zones

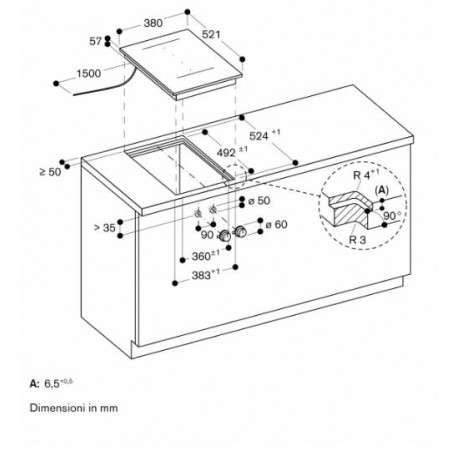

• Respect always the drawings relating to the installation of the knobs. If the panel is thicker than 23 mm, provide space on the back side
• The load-bearing capacity and stability, particularly in the case of thin worktops, must be supported by suitable substructures. Take into account the weight of the appliance and additional loads
• Installation is possible in stone, synthetic or solid wood surfaces. The thermal resistance and watertightness of the edges of the cut must be respected. Regarding other materials, please consult the manufacturer of the worktop
• The groove must be continuous and uniform, so as to guarantee the correct positioning of the appliance on the gasket. Do not use a discontinuous covering
• The width of the joint may vary due to dimensional tolerances of the combinations and the cutout on the worktop
• If you install multiple appliances in single niches, provide a space of at least 50 mm between the niches
• To be used only with ferromagnetic pans
• The appliance is equipped with fixing springs which block the hob after insertion from above
• Weight of the appliance approx 8 kg

Connection values
• Total absorption 3.7 kW
• Connection cable length 1.5 m without plug
• Standby consumption /display OFF 0.5 W
• Standby/network consumption 1.4 W
• Check the manual to turn off the WiFi module

N.B.: The knobs are optional accessories
