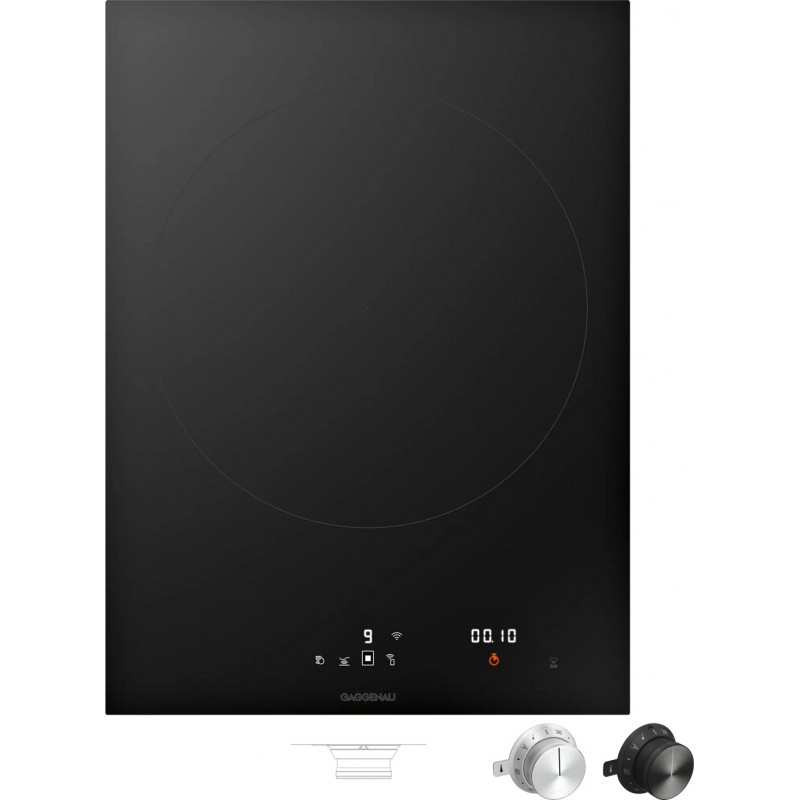

Gaggenau 38 cm VI 414 105 induction wok hob

Cod. VI 414 105

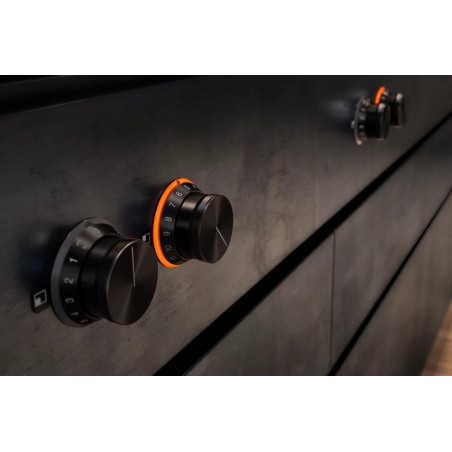

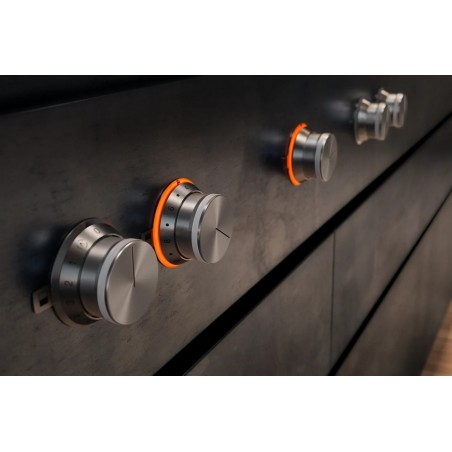

• Solid stainless steel knobs, also available in black finish, for precise and customizable control
• 32 cm cooking zone with booster function
• Without frame for flush with the top
• Ideal for use with the Wok pan and its ring

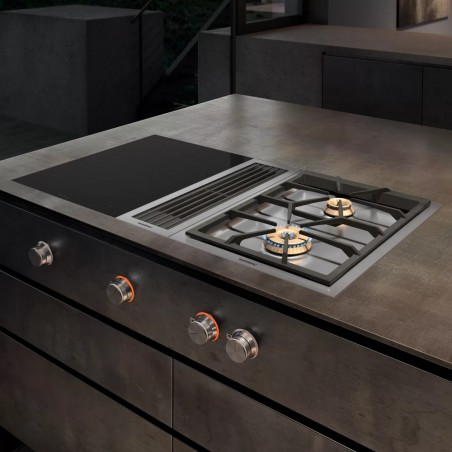

• Perfect combination with all the appliances of the Vario 400 series

Zone cooking
• 1 induction zone Ø 21 cm (2200 W, with 3700 W booster), which automatically extends to Ø 26 cm (2600 W, with 3700 W booster) and to Ø 32 cm (3300 W , with 3700 W booster)

Operation
• Knobs with luminous ring and silk-screen printing for cooking zones and power levels
• Electronic power control 12 levels
• User friendly control with 2 color display (white/orange)

Features
• Frying sensor
• Function Booster
• Stopwatch
• Minute minder
• Options menu
• Power Management function: electronic regulation and limitation of electrical absorption according to need

Home Connect
• Integrated extraction system control (with compatible hood model)
• Remote control
• Remote diagnosis
• Integrated digital services (Home Connect) with your wireless home network via WiFi
• The operation of the Home Connect mode depends on the availability of the Home Connect service in each country. For further information visit www.home-connect.com

Safety
• Operation indicator light
• Pan recognition system
• Indicator 2-stage residual heat
• Safety switch

Mounting precautions

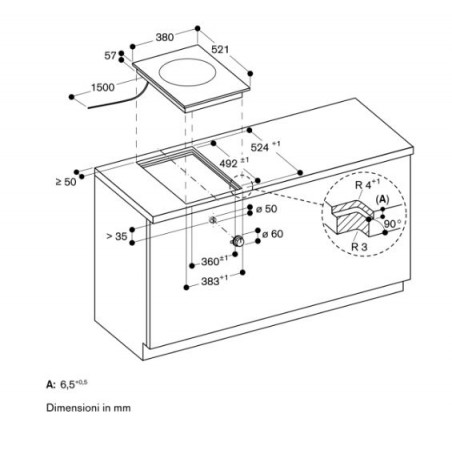

• Always respect the drawings relating to the installation of the knobs. If the panel is thicker than 23 mm, provide space on the back side
• The load-bearing capacity and stability, particularly in the case of thin worktops, must be supported by suitable substructures. Take into account the weight of the appliance and additional loads
• Installation is possible in stone, synthetic or solid wood surfaces. The thermal resistance and watertightness of the edges of the cut must be respected. Regarding other materials, please consult the manufacturer of the worktop
• The groove must be continuous and uniform, so as to guarantee the correct positioning of the appliance on the gasket. Do not use a discontinuous covering
• The width of the joint may vary due to dimensional tolerances of the combinations and the cutout on the worktop
• If you install multiple appliances in single niches, provide a space of at least 50 mm between the niches
• To be used only with ferromagnetic pans
• The appliance is equipped with fixing springs which block the hob after insertion from above
• Weight of the appliance approx 8 kg

Connection values
• Total absorption 3.7 kW
• Connection cable length 1.5 m without plug
• Standby consumption /display OFF 0.5 W
• Standby/network consumption 1.4 W
• Check the manual to turn off the WiFi module

N.B.: The knobs are optional accessories
