Gaggenau VR 414 115 38 cm electric grill

Cod. VR 414 115

• 2 zones controllable separately or in combination
• Cast iron plate, half the size, for frying and grilling simultaneously on two separate surfaces
• Removable cast iron grids , tray with lava stone
• Precise workmanship of 3 mm thick steel
• Possible free-standing or flush-mount installation

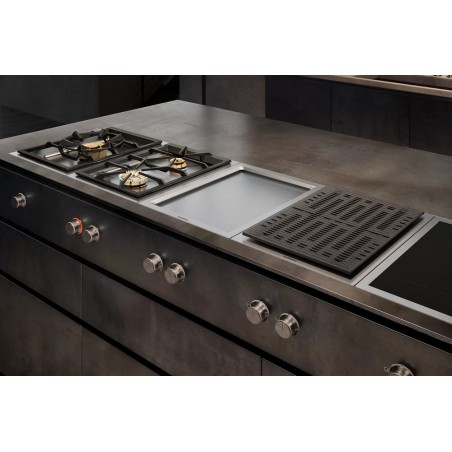

• Perfect combination with all the devices of the Vario 400 series

Operation

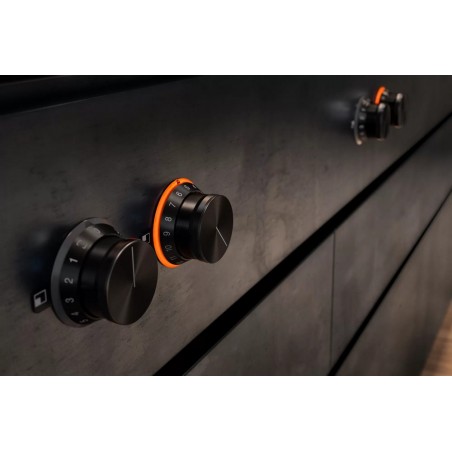

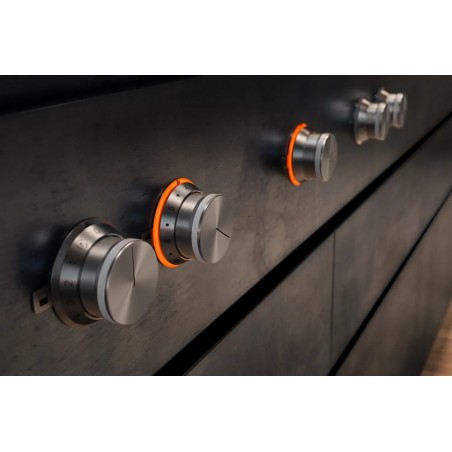

• Knobs with luminous ring and silk-screen printing for cooking zones and power levels
• 12-level electronic adjustment

Features
• Worktop, tray with lava stone and stainless steel grease collection tray
• 2 zones, each 1500 W, can be used as a single surface or separately
• Two cast iron grills

Safety
• Automatic safety switch-off
• Residual heat indicator

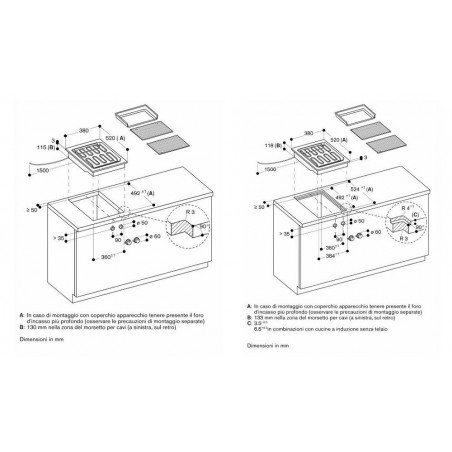

Mounting precautions
• Depending on the type of installation (free-standing or flush with the top, with or without cover), the position of the built-in niche and the knob may vary
• If you install with the VA 440 cover, take into account the additional space required for the depth
• If you combine multiple devices from the Vario 400 series, it is necessary to use the VA 420 connecting element between the various devices. Depending on the type of installation, the corresponding connecting element must be provided
• The load-bearing capacity and stability, particularly in the case of thin worktops, must be supported by suitable substructures. Take into account the weight of the appliance and additional loads
• Additional instructions for flush installation: Installation is possible in stone, synthetic or solid wood surfaces. The thermal resistance and watertightness of the edges of the cut must be respected. Regarding
regards other materials, please consult the manufacturer of the worktop
• The groove must be continuous and uniform, so as to guarantee the correct positioning of the appliance on the gasket. Do not use a discontinuous covering
• The width of the joint may vary due to dimensional tolerances of the combinations and the cutout on the worktop
• If you install multiple appliances in single niches, provide a space of at least 50 mm between niches
• Lateral distance from the appliance to the wall or a piece of furniture min. 100 mm
• The device can be installed from above
• Weight of the device approx. 25 kg

Connection values
• Total absorption 3 kW
• Connection cable length 1.5 m without plug

N.B.: The knobs are optional accessories
