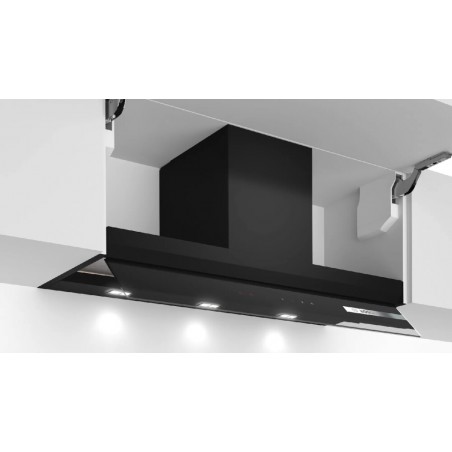

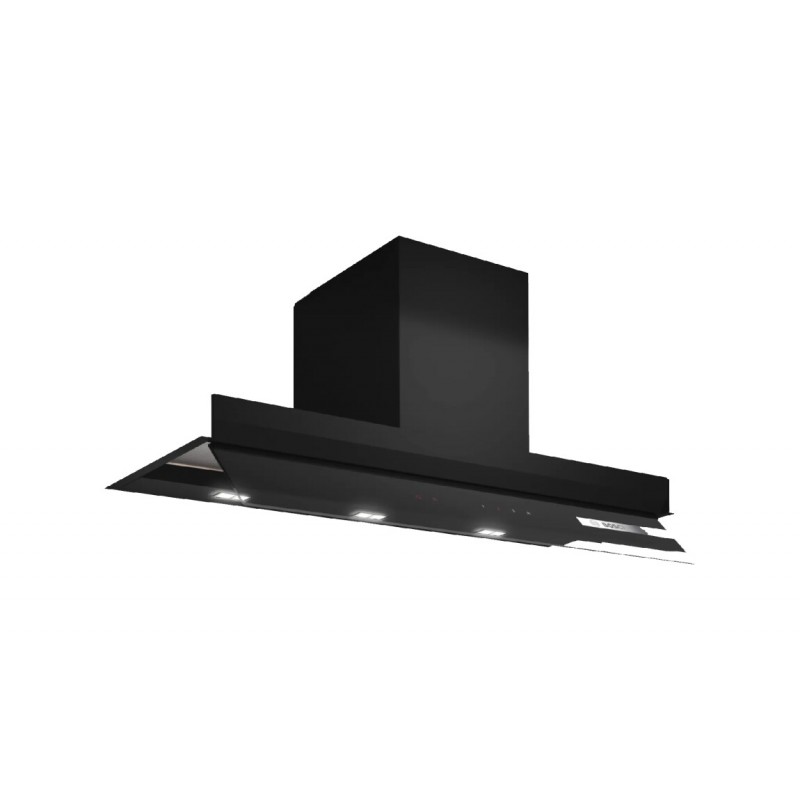

Bosch 90 cm retractable extractor hood that can be integrated into the wall unit DBB97AM60 black finish - Serie 6

Cod. DBB97AM60

Cod. EAN 4242005278206

Technical data:
• Width: 90 cm
• Color: black glass
• Type of installation: recessed
• Air circulation: exhaust air, recirculation air (special accessories available separately)
• Total motor power: 250 W

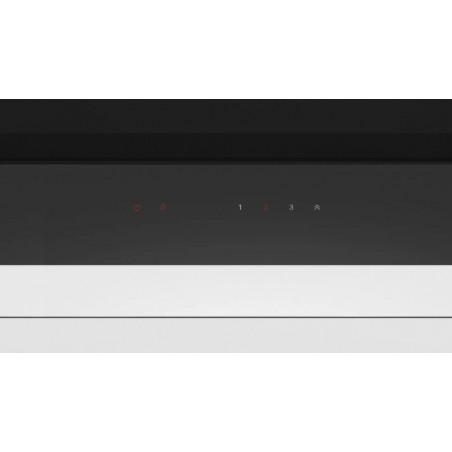

• Type of controls and indicators: LED, touch control
• Maximum air expulsion power: 460 m³ / hour
• Maximum air expulsion power with intensive stage: 749 m³ / hour
• Sound power at max. (2010/30 / EC): 63 dB
• Increase in sound power (2010/30 / EC): 73 dB
• Maximum air recirculation power: 451 m³ / h
• Maximum power air recirculation with intensive stage: 652 m³ / h
• Material of the grease filter: washable stainless steel
• Energy efficiency class: B
• Estimated annual electricity consumption: 64.7 kWh / year

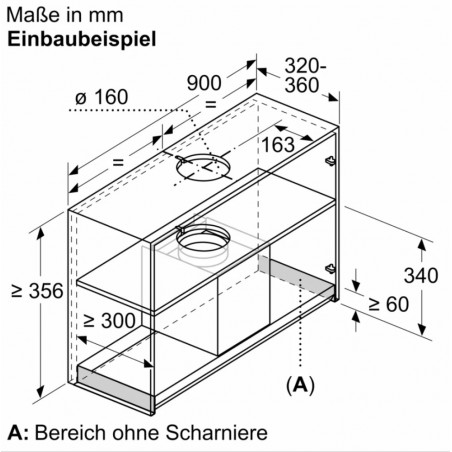

Dimensions:
• Height: 340-340 mm
• Width: 897 mm
• Depth: 298 mm
• Distance from the minimums of the electric hob: 430 mm
• Distance from the minimums of the gas hob: 650 mm
• Diameter of the air outlet: 150/120 mm
• Non-return flow deflector
• Length of power supply cable: 130 cm
• Net weight: 14.5 kg
• Height of exhaust air device max: 340 mm
• Height of exhaust air device min: 340 mm
• Width of the minimum niche: 860 mm
• Maximum width of the niche: 860 mm
• Depth of the niche: 300 mm

Comfort:
• Intensive level

Lighting:
• Number of lights: 3
• Total power of the bulbs: 9 W
• Total light intensity: 517 lux
• Type of lighting softLight
• Average illumination of the lighting system on the E_middle hob (2009/125 / EC): 517 lux

Optional accessories:
• External LongLife recirculation set
• Recirculation set Clean Air Standard
• Clean Air standard odor filter
• External Clean Air Plus recirculation set
• Long life odor filter
• Chimney extension


Theoptimum fan powerfor every kitchen size
It doesn't matter if you have an open kitchen or a small one closed kitchen. We offer the optimum fan performance for every type of kitchen. The air should be completely exchanged 6 to 12 times per hour for a uniformly pleasant room climate. To this end, the air flow or the performance of the extractor hood must correspond to the volume of the environment
Silent: better extraction performance with low noise
Intensive level: removes strong cooking odors particularly quickly and effectively

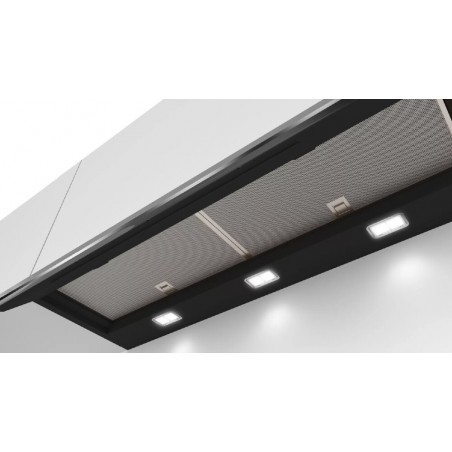

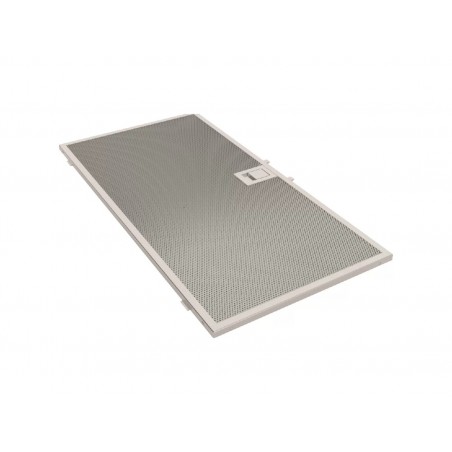

Metal grease filter
Metal grease filters are required for exhaust and recirculation hoods to filter grease and other solids from the intake air. To maintain their high level of effectiveness, they should be washed by hand or in the dishwasher about once a month. The metal grease filter is included in the delivery
