Airone Botticelli Full Glass downdraft hood, black glass finish with 90 cm transparent glass - Without motor

Botticelli Full Glass 90 model

•VERSION:90cm (with M. AMM kit) / 90cm (with M. REMOTE AMM kit)
•COMMAND:4-speed touch control, auto off, filter cleaning signal
•OPTIONAL MOTOR:AMM MOTOR kit / AMM REMOTE MOTOR kit (for version with remote m.)
•ENERGY EFFICIENCY CLASS:A (with AMM m. kit)
•ANNUAL ENERGY CONSUMPTION:49.1 kW/a (with m. AMM kit)
•IEC MOTOR CAPACITY:256-593 (735 intensive ) m3/h (with m. AMM kit)
•ENGINE PRESSURE. SPEED. INTENSIVE:595 Pa (with m. AMM kit)
•LIGHTING:Strip LED (5.5 W - 4000° K)
•LEVEL SOUND:47-66 (68 intensive) dBa (with m. AMM kit)
•FINISH:Black glass with transparent glass
•FILTERS:Aluminium
•Ø FITTING:Ø 150 mm /Ø 200 mm
•REMOTE MOTORS/ EFF. CLASS. ENERGY:
AMR 09/ C
AMR 10/ B
AMR 20/ C
AME12/ B
AMF13/ B

Optional accessories
• AMM S820 DEDICATED MOTOR
• AMM REMOTE MOTOR KIT
• KFCPZ PROFESSIONAL PLINTH CARBON FILTER
• 3 KG ACTIVATED CARBON BAG
• REMOTE CONTROL

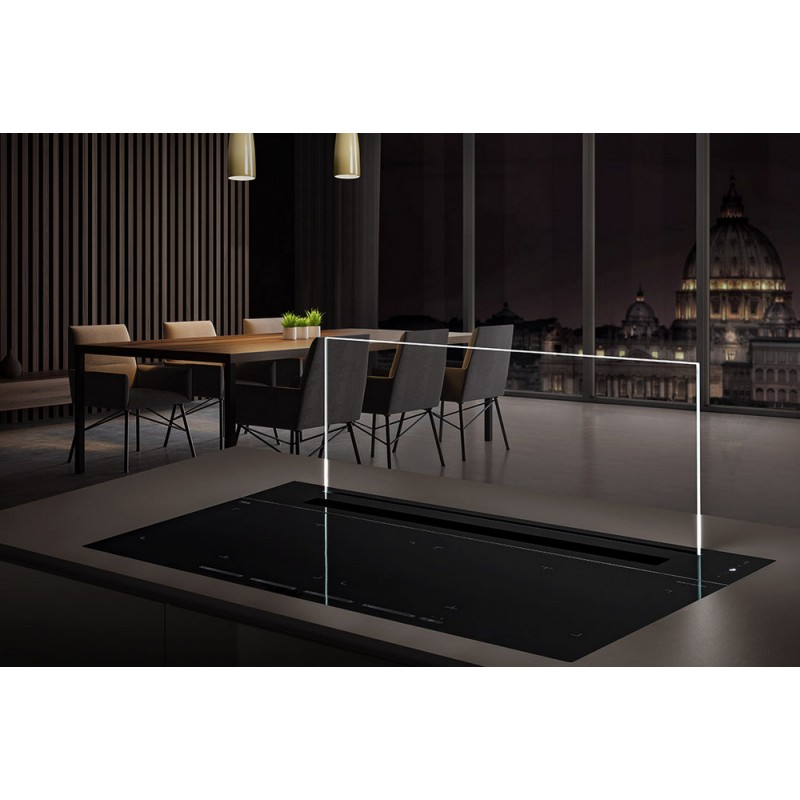

Full glass "down draft" hood, to be combined with induction hobs. The rear transparent glass, illuminated around the edges, guarantees excellent extraction regardless of the position of the pans on the hob

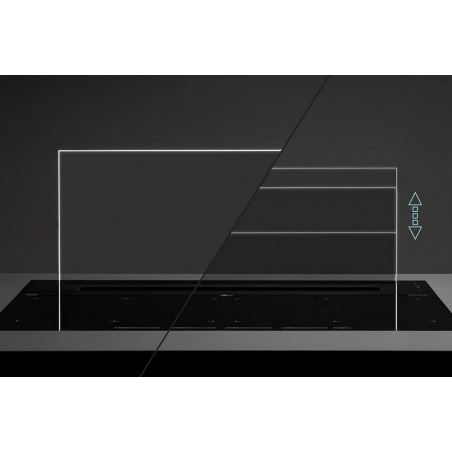

With the hood off the transparent glass can remain visible or retract, in both cases the glass can remain illuminated to guarantee minimal and elegant ambient lighting. The installation, both in the filtering and suction versions, can involve the use of a dedicated motor or a remote motor at a maximum recommended distance of 6 metres. In the filtering version it is possible to install the professional plinth filter kit, which contains granular activated carbon, of high quality and high efficiency, to be replaced approximately after 3 years. The hood is supplied as standard with 8+2 layer aluminum grease filters
The control is 4-SPEED TOUCH CONTROL, with auto-off function and filter cleaning signal
