Airone Zaira downdraft hood 120 cm AISI 304 steel finish - Without motor

Zaira model

•VERSION:120 cm (with AMD) - 120 cm (without motor)
•COMMAND:Remote control / Remote Control
•OPTIONAL MOTOR:AMD dedicated motor cassette
•ENERGY EFFICIENCY CLASS:A (with AMD dedicated motor box)
•ANNUAL ENERGY CONSUMPTION:57.5 kW/a (with AMD dedicated motor box)
•IEC MOTOR FLOW RATE:233-525 (748 intensive) m3/h (with dedicated AMD motor cassette)
•ENGINE PRESSURE. SPEED. INTENSIVE:582 Pa (with dedicated AMD motor cassette)
•LIGHTING:9.5W LED strip (4200°K)
•SOUND LEVEL:43-63 (69 intensive) dBa (with dedicated AMD motor cassette)
•FINISH:AISI 304 steel
•FILTERS:Aluminium
•Ø FITTING:Ø 150 mm /Ø 200 mm
•REMOTE MOTORS/ EFF. CLASS. ENERGY:
AMR 09/ C
AMR 10/ B
AMR 20/ C
AME12/ B
AMF13/ B

Optional accessories
• DEDICATED AMD S800 ENGINE
• KFCPZ PROFESSIONAL PLINTH CARBON FILTER
• 3 KG ACTIVATED CARBON BAG
• KPL ZAIRA 120 WOODEN TOPS

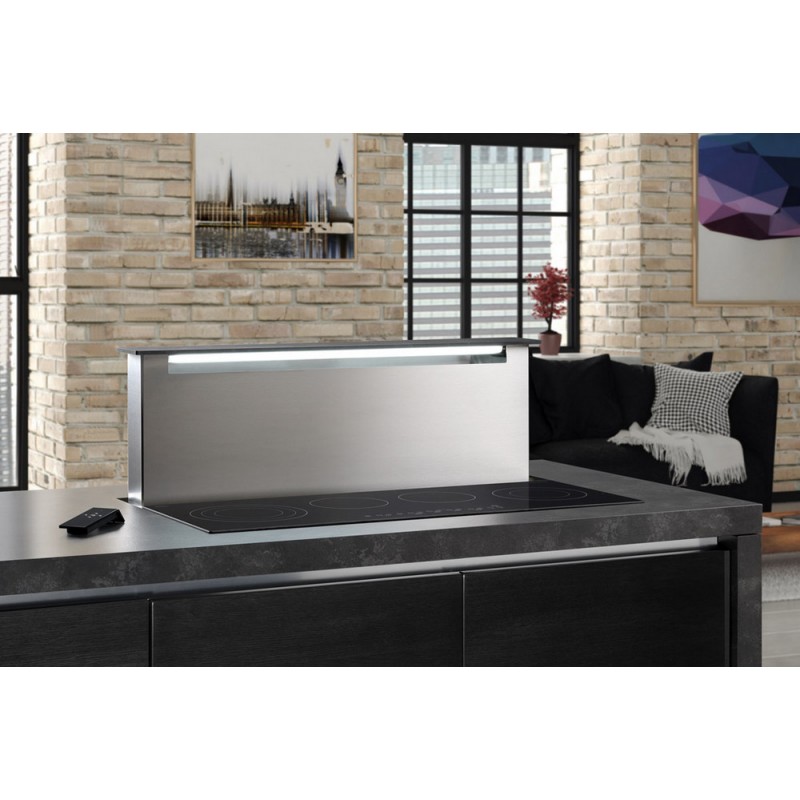

Hood available in steel or black glass version, supplied as standard with LED lighting and high-design remote control. Installation flush with the top is foreseen and the use of linear hobs (gas, induction or ceramic glass) is recommended.

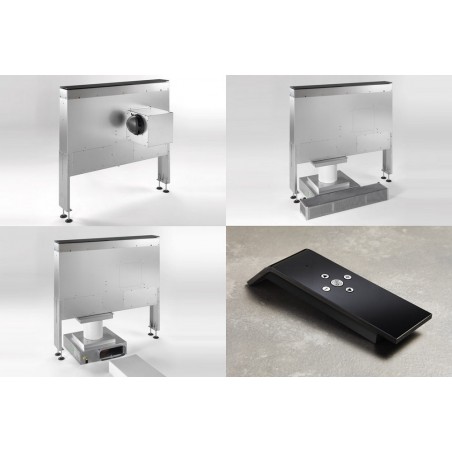

A highly efficient and stable mechanism allows the hood to extend by 30 cm, it is also equipped with of a patented anti-crushing system (safety microswitches to block movement). The lid can be customized with the same finish as the top. The hood can be installed with a dedicated AMD motor (4 possible smoke outlet positions) which must be installed on the hood or with a flat motor to be positioned under the hood
For use of the recirculating hood, it can be combined with the flat motor the plinth carbon filter (contains 4 kg of granular activated carbon, of high quality and high efficiency, with a lifespan of up to 3 years without maintenance)
Installation with remote motor is also possible. All motors guarantee high efficiency suction. The grease filters are easily accessible for easy cleaning
