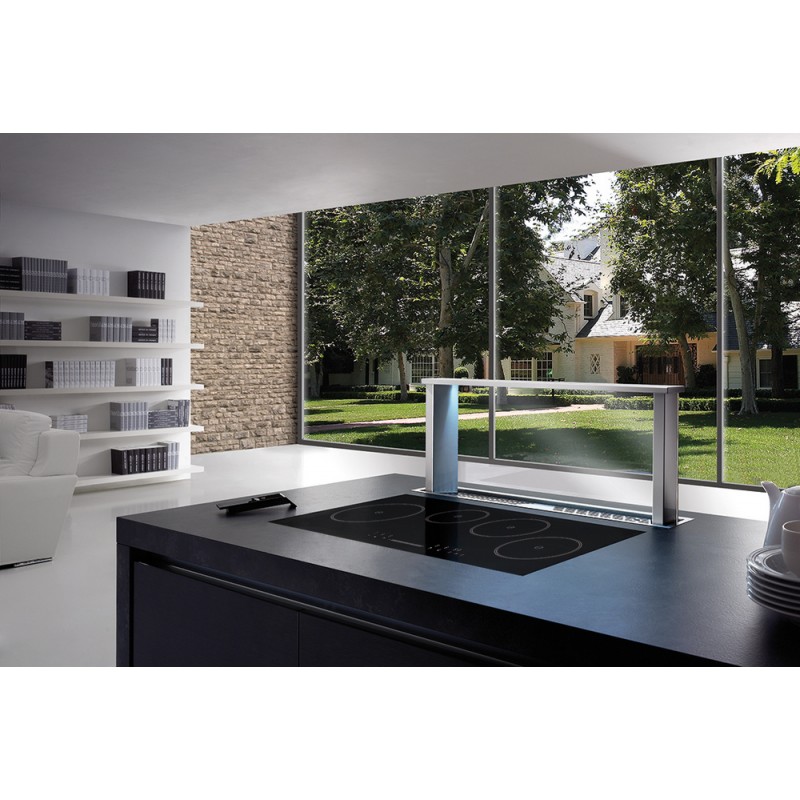

Airone Mozart downdraft hood AISI 304 steel finish with 90 cm transparent glass - Without motor

Mozart model

•VERSION:90 cm
•COMMAND:Remote control / Remote Control
•OPTIONAL MOTOR:AMD dedicated motor box
•ENERGY EFFICIENCY CLASS:A (with AMD dedicated motor box)
•ANNUAL ENERGY CONSUMPTION:53.4 kW/a (with AMD dedicated motor box)
•IEC MOTOR CAPACITY :230-500 (730 intensive) m3/h (with dedicated AMD motor cassette)
•ENGINE PRESSURE. SPEED. INTENSIVE:607 Pa (with dedicated AMD motor cassette)
•LIGHTING:6.5 W LED strip (4200 °K)
•SOUND LEVEL :42-59 (66 intensive) dBa (with dedicated AMD motor cassette)
•FINISH:AISI 304 steel, transparent glass
•FILTERS:Aluminium

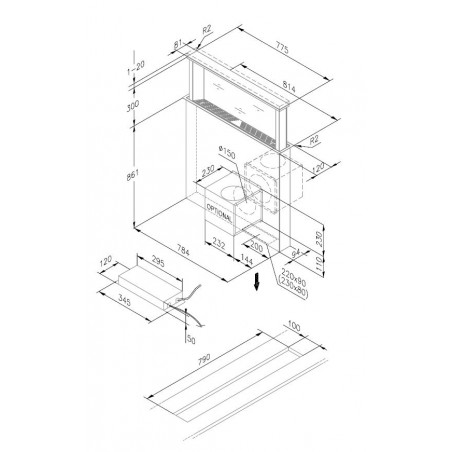

•Ø FITTING:Ø 150 mm / 220x90 mm / 230x80 mm
•REMOTE MOTORS/ EFF. CLASS. ENERGY:
AMR 09/ C
AMR 10/ B
AMR 20/ C
AME12/ B
AMF13/ B

Optional accessories
• DEDICATED AMD S800 ENGINE
• KFCPZ PROFESSIONAL PLINTH CARBON FILTER
• 3 KG ACTIVATED CARBON BAG
• RECT. CARBON FILTER KIT. 215X240X10 - PCR3

Hood with a modern design which, thanks to the use of transparent glass, guarantees a greater aesthetic impact and better integration with the living environment
A highly efficient mechanism and stability allows the hood an extension of 30cm, it is also equipped with a patented anti-crushing system (safety microswitches block movement)
The hood can be installed with a dedicated AMD motor, (4 possible smoke outlet positions) which goes installed on the hood or with a remote motor. All motors guarantee high efficiency suction. The hood extracts from the base and under the lid
The hood can be installed in recirculation with the use of traditional carbon filters, to be combined with anti-grease filters or with the use of the plinth carbon filter, which contains 4 kg of high quality and high efficiency granular activated carbon, with a lifespan of up to 3 years without maintenance
Supplied with standard LED lighting and high-design remote control. Flush-to-top installation with a steel frame is foreseen and the use of linear hobs (gas, induction or ceramic glass) is recommended.
The grease filters are easily accessible for easy cleaning
