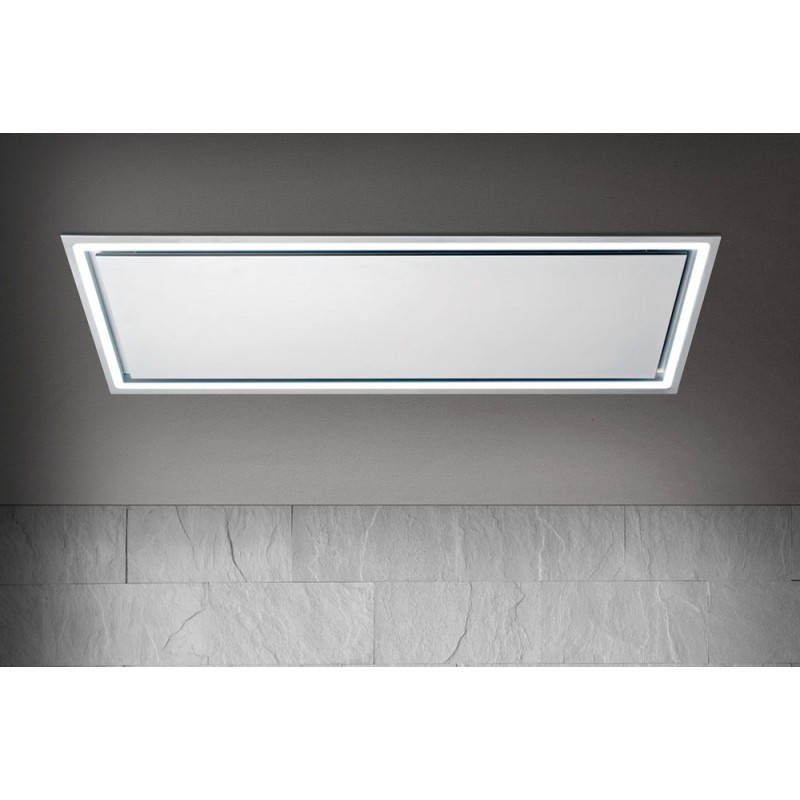

Airone Carmen ceiling hood 120 cm matt white finish - Without motor

Carmen Bianca model

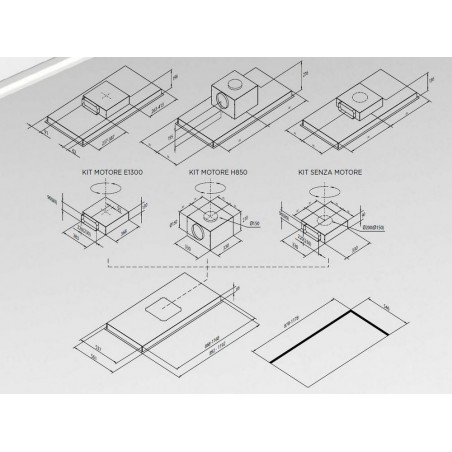

•VERSION:120cm (kit m. H850 ) - 120cm (kit m. E1300) - 120cm (remote motor kit)
•COMMAND:Remote control / Remote Control
•OPTIONAL MOTOR:KIT H850 MOTOR - E1300 MOTOR KIT - REMOTE MOTOR KIT (for version with remote m.)
•ENERGY EFFICIENCY CLASS:B (kit m. H 850) / C (kit m. E1300)
•ANNUAL ENERGY CONSUMPTION:77.5 kW/a (kit m. H850) / 92.5 kW/a (kit m. E1300)
•IEC MOTOR CAPACITY:305 - 515 (776 intensive) m3/h (kit m. H850) / 406 - 668 (676 intensive) m3/h (kit m. E1300)
•ENGINE PRESSURE. SPEED. INTENSIVE:576 Pa (kit m. H850) / 697 Pa (kit m. E1300)
•LIGHTING:Strip LED (33 W - 3000° K)
•SOUND LEVEL:49-63 (69 intensive) dBa (kit m. H850) / 58-69 (70 intensive) dBa (kit m. E1300)
•FINISH :Matt white
•FILTERS:Aluminium
•Ø CONNECTION:Ø 150mm/Ø 200mm - 220x90mm/230x80mm
•REMOTE MOTORS/ EFFECTIVE CLASS. ENERGY:
AMR 09/ B
AMR 10/ B
AMR 20/ C
AME12/ B
AME13/ B

Optional accessories
• E1300 ENGINE KIT
• H850 ENGINE KIT
• REMOTE ENGINE KIT
• RETT.200X270X10 CARBON FILTER KIT - PCR1

Ceiling hood with perimeter extraction (with white frame and white panel) to be installed with a motor on the hood or to be combined with our remote motors. Installation is facilitated, thanks to an innovative system which provides for the connection of the pipes in a very easy way (see assembly instructions booklet on our website)
The hood is supplied as standard with a high-design remote control and it is equipped with an on-board control for emergency switching off or on. The control on the hood indicates the motor speed and the filter cleaning signal. Homogenous lighting of the cooking area is guaranteed by the ultra slim perimeter LED strip, 2214 lumen for the 90 cm size and 2706 lumen for the 90 cm size. from 120 cm
