812 m3/h class B hood (with H850 motor kit) / 827 m3/h class B hood (with E1300 motor kit)
Airone Raffaello ceiling hood with 120 cm white frame - Without motor
Raffaello 120 bianca senza motore
Available in 15/20 working days
812 m3/h class B hood (with H850 motor kit) / 827 m3/h class B hood (with E1300 motor kit)
€1,723.86
€965.36
Save 44%
VAT included
Shipments may be delayed due to the summer warehouse closure. For further information, please contact us via email at vendite@opportunitycommerce.com or via chat.
We accept different types of payment:
- Payment by credit and debit cards
- Amazon Pay
- Paypal
- Bank transfer
- Cash on delivery (cash on delivery)
- Paga anche a Rate con Soisy o Scalapay
Right of withdrawal
Satisfied or refunded: up to 14 days from the delivery date to return your purchase
Satisfied or refunded: up to 14 days from the delivery date to return your purchase
Shipments:
Quick and fast shipping. Do you have emergencies? contact us now and see our products ready for delivery
Quick and fast shipping. Do you have emergencies? contact us now and see our products ready for delivery
Airone Raffaello ceiling hood with 120 cm white frame - Without motor
Raffaello model
•VERSION:120 cm (with H850) / 120 cm (with E1300) / 120 cm (without motor)
•COMMAND:Remote control / Remote Control
•ENERGY EFFICIENCY CLASS:B (with H 850 and with E1300)
•ANNUAL ENERGY CONSUMPTION:81 kW/a (with H850) / 94 kW/a (with E1300)
•MOTOR CAPACITY IEC:336-587 (812 intensive) m3/h (with H850) / 418-706 (827 intensive) m3/h (with E1300)
•ENGINE PRESSURE. SPEED. INTENSIVE:566 Pa (with H850) / 772 Pa (with E1300)
•LIGHTING:LED panel 36W (3000°K)
•LEVEL SOUND:50-64 (69 intensive) dBa (with H850) / 50-63 (70 intensive) dBa (with E1300)
•FINISH:WHITE with white frame
•FILTERS:Aluminium
•Ø FITTING:Ø 150mm/Ø 200mm - 220x90mm/230x80mm
•REMOTE MOTORS/ CLASS EFF. ENERGY:
AMR 09/ C
AMR 10/ B
AMR 20/ C
AME12/ B
AME13/ B
Optional accessories
• CARBON FILTER KIT RETT.200X270X10 - PCR1 (4x)

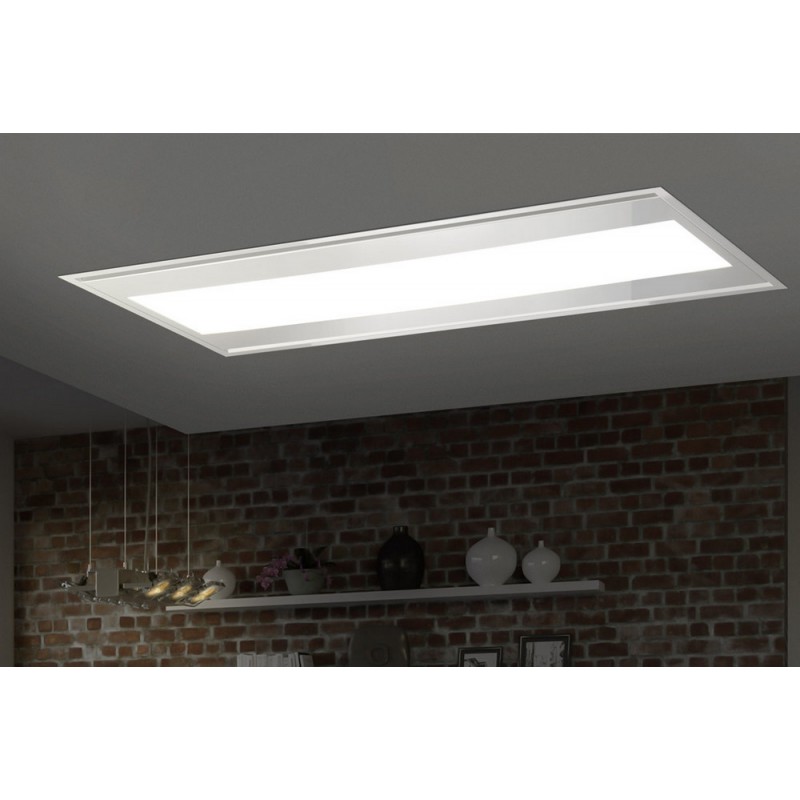

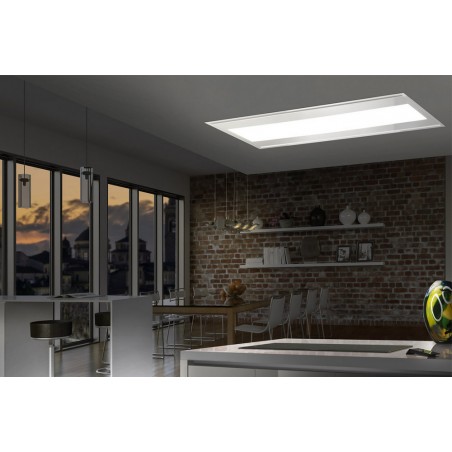

Ceiling hood with perimeter extraction (with white frame or stainless steel frame) available with motor on board or without motor to be combined with one of our remote motors
The installation is facilitated, thanks to the dedicated opening for fixing the smoke outlet fitting (see assembly instructions booklet on our website internet)
The hood is supplied as standard with a high-design remote control and is equipped with an on-board control for emergency switching off or on. The control on the hood indicates the motor speed and the filter cleaning signal
Homogeneous lighting of the cooking area is guaranteed by a powerful LED panel dimmable at 3000°K which develops 2900 lumens, with only 36W consumption
Raffaello 120 bianca senza motore
Data sheet

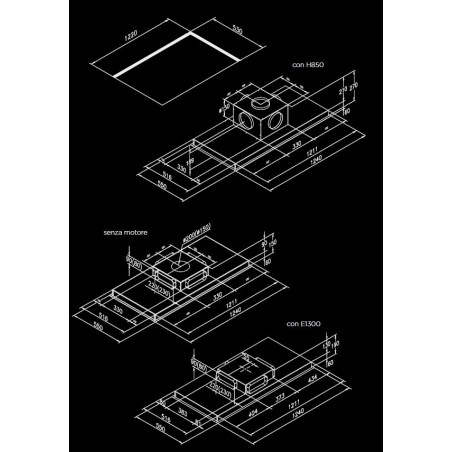

- Dimensions (WxHxD)
- 1240x150-270x550 mm
- Finishing
- White
- Typology
- Ceiling
