Smeg KCU94MB 90cm wall mounted extractor hood in black finish

Smeg wall-mounted extractor hood KCU94MB 90 cm black finish

Cod. KCU94MB

Code. EAN 8017709367848

Aesthetics
• Aesthetics: Portofino
• Color: Black
• Design: Trapezoid
• Component finish: Steel
• Material: Steel
• Stainless steel type: Brushed

Programs / Functions
• Number of speeds: 3
• Intensive speed
• V-Condense System
• Auto-Vent 2.0

Type
• Family: Hood
• Type: Decorative wall
• Hood width: 90 cm
• Filtering: Exhaust

Technical features
• Number of lights: 2
• Light type: LED
• Light power: 2 W
• Light intensity adjustable
• Light colour temperature (K): 4000 K
• Maximum extraction capacity in free mode (P0): 815 m3/h
• Motor power: 275 W
• Number of filters: 3
• Grease filters: Stainless steel
• Minimum installation distance from gas hob: 750 mm
• Minimum installation distance from electric hob: 650 mm
• Motor inlet diameter: 150 mm
• Non-return valve

Controls
• Control adjustment: Touch control

Performance / Energy label
• Energy efficiency class (EEC): A++
• Fluid dynamic efficiency class (FDEC): A
• Grease filtering efficiency class (GFEC): B
• Lighting efficiency class (LEC): A
• Annual energy consumption efficiency (AEC): 34 kWh/a
• Fluid Dynamic Efficiency (FDE): 39.6
• Lighting Efficiency (LE): 33 lux/W
• Grease Filtering Efficiency (GFE): 92.6 %
• Air flow rate at minimum speed (Qmin): 237 m3/h
• Air flow rate at maximum speed (Qmax): 577 m3/h
• Air flow rate at intensive speed (Qboost): 741 m3/h
• Weighted acoustic power emission at minimum speed (SPEmin): 43 dBA
• Weighted acoustic power emission at maximum speed (SPEmax): 65 dBA
• Weighted acoustic power emission at intensive speed (SPEboost): 70 dBA
• Time Enhancement Factor (F): 1.0
• Energy Efficiency Index: 40.3
• Air flow rate measured in maximum efficiency condition (Qbep): 413 m3/h
• Air pressure measured in maximum efficiency condition (Pbep): 476 Pa
• Electrical power consumption in maximum efficiency condition (Wbep): 151 W
• Rated power of the lighting system (WL): 2 W
• Average illumination of the lighting system on the hob (Emiddle): 172 lux
• Sound level in the highest setting (Lwa): 66 dBA

Electrical connection
• Voltage: 220-240 V
• Frequency: 50-60 Hz
• Plug: No
• Power cord length: 1000 mm

Speed 1
• Extraction capacity (IEC 61591): 237 m3/h
• Noise level (IEC 60704-2-13): 43 dBA
• Power: 11 W

Speed 2
• Suction capacity (IEC 61591): 403 m3/h
• Noise level (IEC 60704-2-13): 56 dBA
• Power: 43 W

Speed 3
• Suction capacity (IEC 61591): 577 m3/h
• Noise level (IEC 60704-2-13): 64 dBA
• Power: 73 W

Intensive speed
• Suction capacity (IEC 61591): 741 m3/h
• Noise level (IEC 60704-2-13): 70 dBA
• Power: 154 W

Logistics information

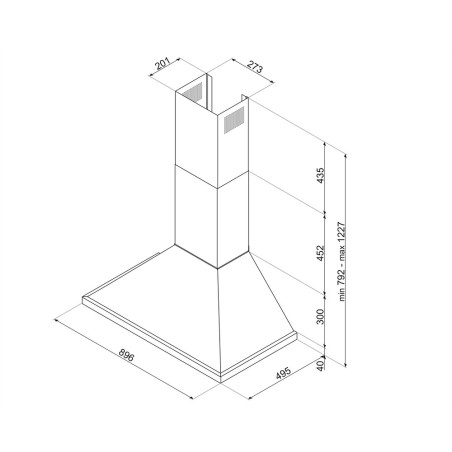

• Product dimensions: 1227x896x495 mm
• Gross weight: 24.41 kg
• Net weight: 18.22 kg
