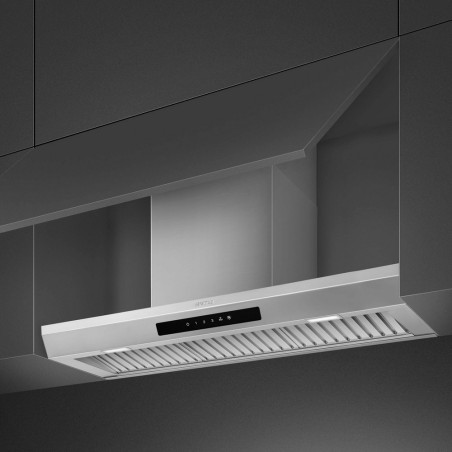

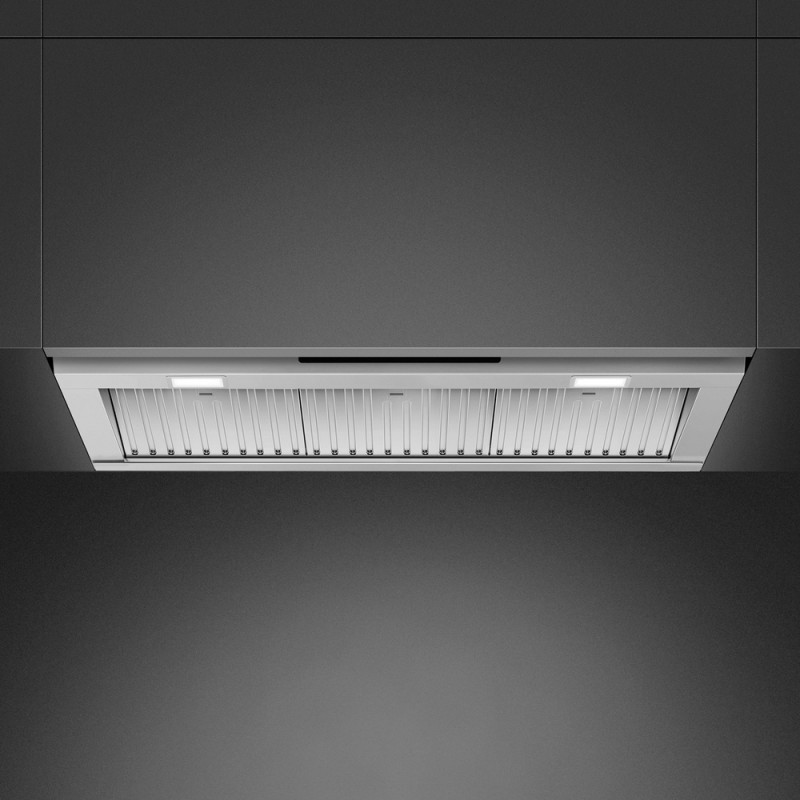

Smeg KSGT94X 90cm integrated extractor hood in stainless steel finish

Smeg integrated extractor hood KSGT94X 90 cm stainless steel finish

Cod. KSGT94X

Code. EAN 8017709328368

Aesthetics
• Aesthetics: Universal
• Color: Stainless Steel
• Design: Retractable
• Finish: Satin
• Material: Stainless Steel
• Stainless Steel Type: Satin

Programs / Functions
• Number of speeds: 3
• Intensive speed
• 24 h air exchange function
• Time programming options: Automatic switch-off
• V-Condense System
• Auto-Vent 2.0

Type
• Family: Hood
• Type: Integrated group
• Hood width: 90 cm
• Filtering: Exhaust
• Electronic control

Technical features
• Number of lights: 2
• Light type: LED
• Light power: 2.3 W
• Adjustable light intensity
• Light colour temperature range (K): 2700 - 4000 K
• Maximum extraction capacity in free mode (P0): 820 m3/h
• Motor power: 275 W
• Number of filters: 3
• Grease filters: Stainless steel
• Filter change indicator
• Minimum installation distance from gas hob: 650 mm
• Minimum installation distance from electric hob: 500 mm
• Motor inlet diameter: 150 mm
• Non-return valve

Controls
• Control adjustment: Touch control back-lit White
• LED colour: White

Performance / Energy label
• Energy efficiency class (EEC): A
• Fluid Dynamic Efficiency Class (FDEC): A
• Grease Filtering Efficiency Class (GFEC): B
• Lighting Efficiency Class (LEC): A
• Annual Energy Efficiency (AEC): 49 kWh/a
• Fluid Dynamic Efficiency (FDE): 31.7
• Lighting Efficiency (LE): 37.0 lux/W
• Grease Filtering Efficiency (GFE): 88.9 %
• Air flow rate at minimum speed (Qmin): 256 m3/h
• Air flow rate at maximum speed (Qmax): 616 m3/h
• Air flow rate at intensive speed (Qboost): 703 m3/h
• Weighted acoustic power emission at minimum speed (SPEmin): 49 dBA
• Weighted acoustic power emission at maximum speed (SPEmax): 71 dBA
• Weighted acoustic power emission at boost speed (SPEboost): 71 dBA
• Time increase factor (F): 0.9
• Energy efficiency index: 52.1
• Air flow rate measured at maximum efficiency condition (Qbep): 347 m3/h
• Air pressure measured at maximum efficiency condition (Pbep): 460 Pa
• Electrical power input at maximum efficiency condition (Wbep): 140 W
• Rated power of the lighting system (WL): 5 W
• Average illumination of the lighting system on the hob (Emiddle): 170 lux
• Sound level at the highest setting (Lwa): 71 dBA

Electrical connection
• Rated electrical connection data: 280 W
• Voltage: 220-240 V V
• Frequency: 50-60 Hz
• Plug: No
• Power cord length: 1500 mm

Standby consumption
• Standby absorption (Ps): 0.49 W

Speed 1
• Suction capacity (IEC 61591): 256 m3/h
• Noise level (IEC 60704-2-13): 49 dBA
• Power: 164 W

Speed 2
• Suction capacity (IEC 61591): 407 m3/h
• Noise level (IEC 60704-2-13): 65 dBA
• Power: 207 W

Speed 3
• Suction capacity (IEC 61591): 616 m3/h
• Noise level (IEC 60704-2-13): 68 dBA
• Power: 232 W

Intensive speed
• Suction capacity (IEC 61591): 703 m3/h
• Noise level (IEC 60704-2-13): 71 dBA
• Power: 237 W

Logistics information
• Product dimensions: 361x862x290 mm
• Gross weight: 13.3 kg
• Net weight: 9.75 kg
