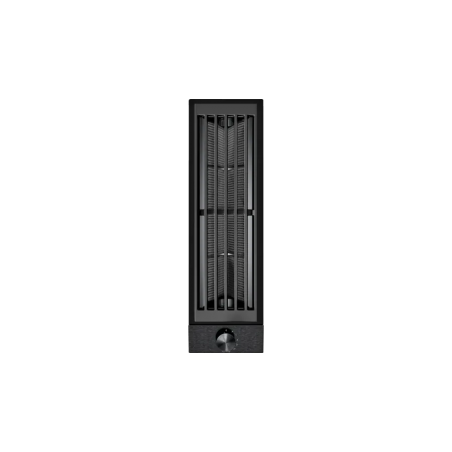

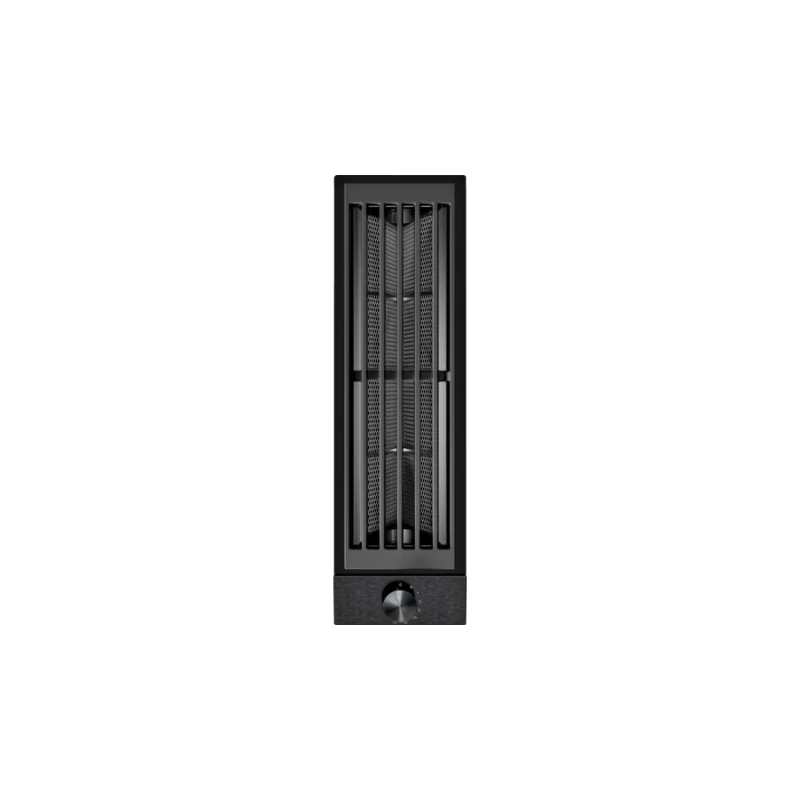

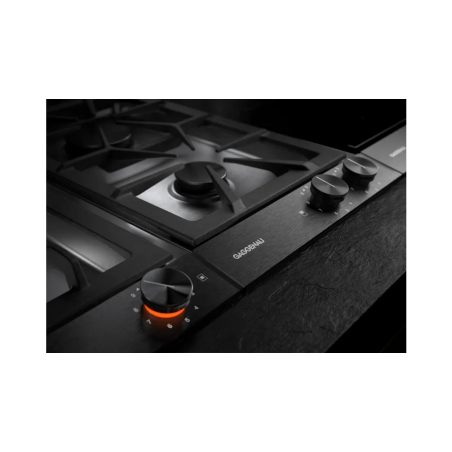

Gaggenau VL 200 120 base hood with 15 cm black control panel

Cod. VL 200 120

Cod. EAN 4242006280604

Performance:

• Power level depending on the Gaggenau engine used

Features:

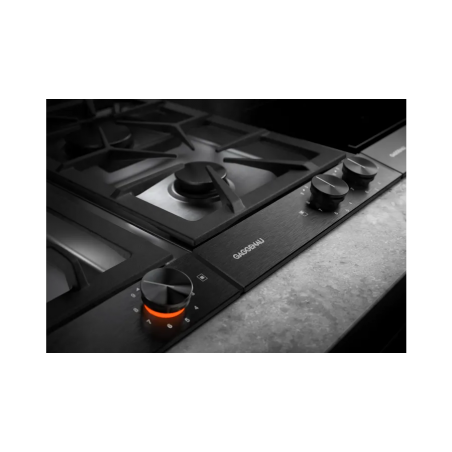

• Control knobs with light ring
• 3 electronically controlled power levels and intensive operating mode
• Option automatic sensor operation
• Metal filter for the collection of fats with high absorption capacity
• Dishwasher-safe grease filter
• Filter saturation indicator for grease filter and activated carbon filter
• Interior optimized for extremely efficient air circulation
• Interval suction, 6 minutes
• Enamelled suction grille, dishwasher safe
• Drain connection included with the appliance
• Drip tank with 250ml overflow capacity

Consumption values:

• Consumption data referring to d a configuration with AR403122 motor
• Energy consumption 48.3 kWh / year
• Ventilation efficiency class: A
• Filter efficiency class: B
• Sound level min. 56 db / max. 71 db with normal suction level

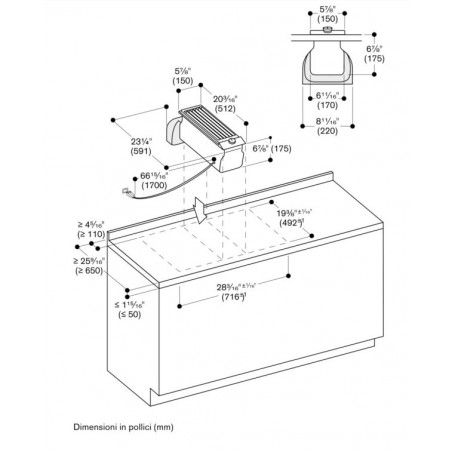

Mounting precautions:

• Recirculation mode in combination with AR remote motor unit 410 110 or AR 413 122
• Extraction mode in combination with remote motor unit AR 403 122
• Each VL must be connected to a remote motor unit

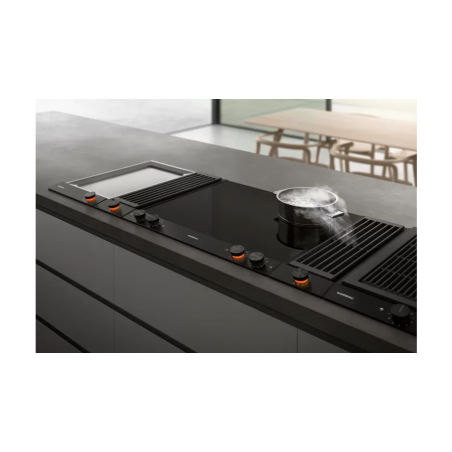

• The width of the worktop between two LVs must be a maximum of 60 cm

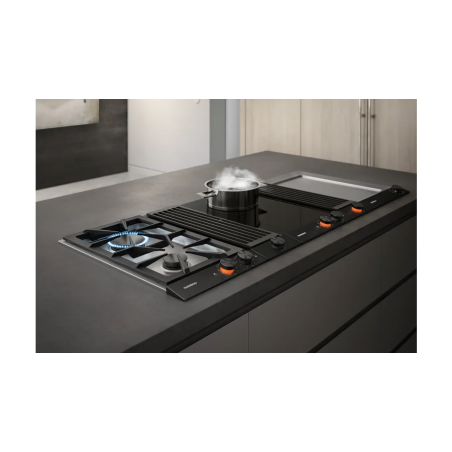

• If installed in combination with gas hobs, the LS 041 001 deflector must be provided to ensure maximum performance of the appliances
• Do not use the WP 400 001 wok pan when installing the LS 041 001 accessory

Connection values:

• 1.7 m connection cable between the VL and the remote motor unit
