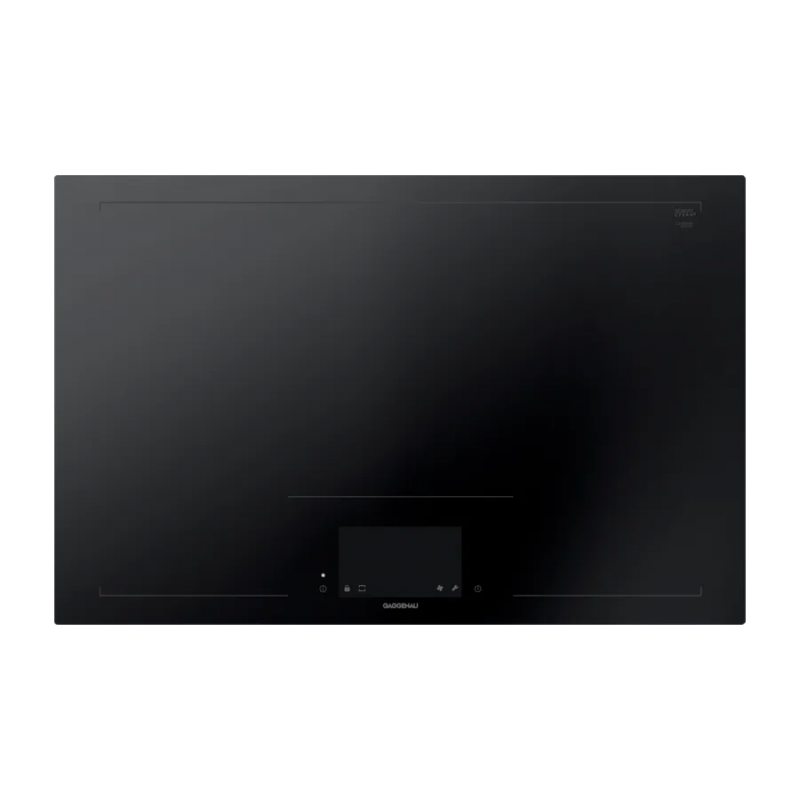

Gaggenau Induction hob CX 492 101 without frame 90 cm

Cod. CX 492 101

Cod. EAN 4242006294298

Cooking zones:

• A single cooking surface of 3200 cm2
• Up to 6 cooking positions

Operation:

• Immediate touch control display with serigraphs with instructions for use
• 17-level electronic power control

Features:

• Cooking Sensor function
• Professional cooking function
• Dynamic cooking function
• TeppanYaki function
• Booster function for pots
• Booster function for pans
• Keep warm function
• Pot recognition system
• Cooking timer for each single zone
• Stopwatch
• Programmable cooking time
• Information button
• Power Management function: electronic regulation and limitation of electrical absorption according to need
• System control integrated extraction system (with compatible hood model)
• Home Connect: Digital services integrated with the home network via LAN cable (recommended) or via WiFi
• Home mode operation Connect depends on the availability of the Home Connect service in each country

Security:

• Main switch (on / off)
• Residual heat indication
• Child lock
• Safety switch
• Pause function

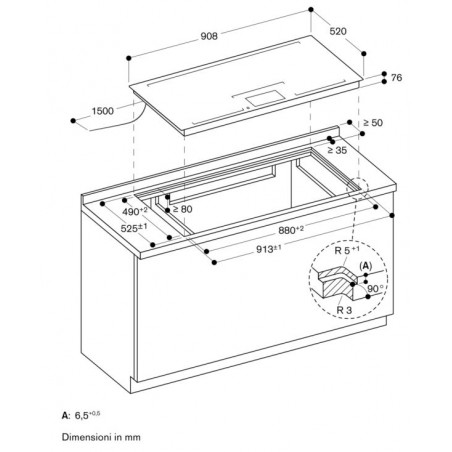

Assembly precautions:

• To be used only with ferromagnetic pots
• The Wok - WP 400001- cannot be used on this surface
• The installation is possible in stone, synthetic or solid wood surfaces. The thermal resistance and watertightness of the edges of the notch must be respected
• The load-bearing capacity and stability, especially in the case of thin worktops, must be supported by suitable substructures. Take into account the weight of the appliance and additional loads
• The groove must be continuous and uniform, so as to ensure the correct positioning of the appliance on the gasket
• The appliance can be installed from below
• The size of the gap between the hob and the top varies according to the accuracy of the notch on the worktop
• Appliance weight approx. 31

Connection values:

• Total absorption 7.4 kW
• Connection cable length 1.5 m without plug
• Check the manual to turn off the WiFi module
