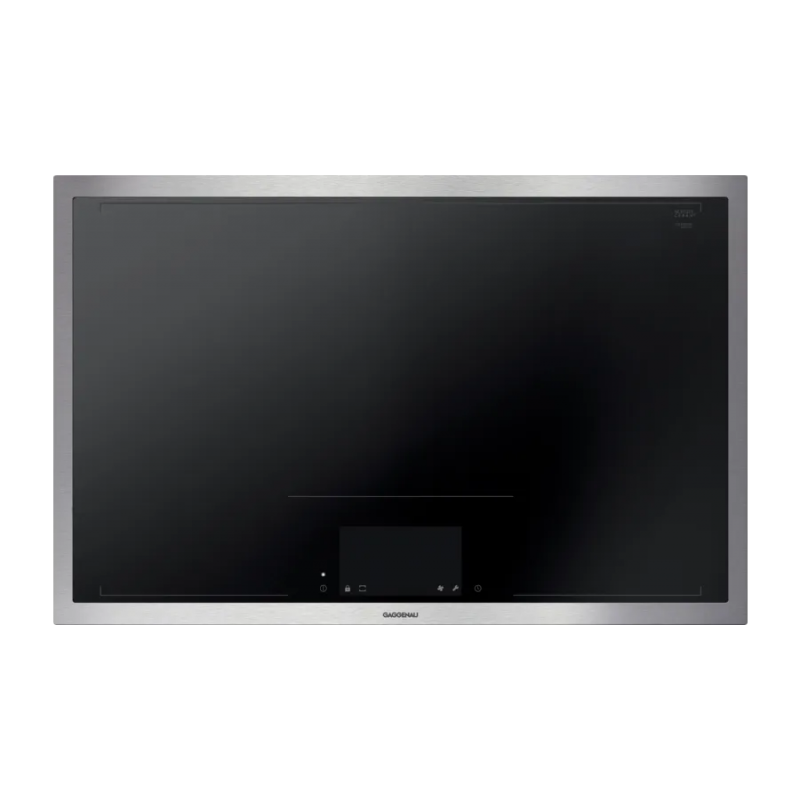

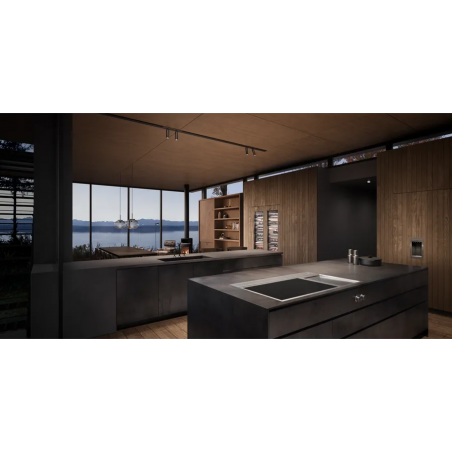

Gaggenau Induction hob CX 492 111 with 90 cm stainless steel frame

Cod. CX 492 111

Cod. EAN 4242006294816

Cooking zones:

• A single cooking surface of 3200 cm2
• Up to 6 cooking positions

Operation:

• Immediate touch control display with serigraphs with instructions for use
• 17-level electronic power control

Features:

• Cooking Sensor function
• Professional cooking function
• Dynamic cooking function
• TeppanYaki function
• Booster function for pots
• Booster function for pans
• Keep warm function
• Pot recognition system
• Cooking timer for each single zone
• Stopwatch
• Programmable cooking time
• Information button
• Power Management function: electronic regulation and limitation of electrical absorption according to needi>

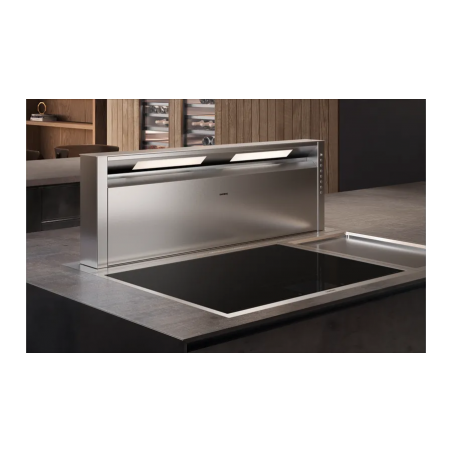

• Integrated extraction system control (with compatible hood model)
• Home Connect: Digital services integrated with the home network via LAN cable (recommended) or via WiFi
• The operation of the Home Connect mode depends on the availability of the Home Connect service in each country

Safety:

• Switch main (on / off)
• Residual heat indication
• Child lock
• Safety switch
• Pause function

Mounting precautions:

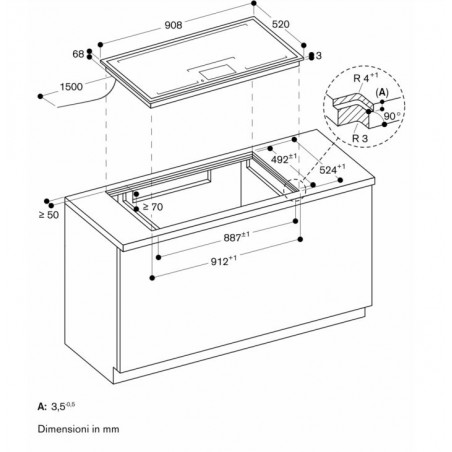

• According to the type of installation (with frame or flush with the top), respect the dimensions of the notch
• If several devices of the Vario 400 series are combined, it is necessary to use the VA 420 connecting element between the various devices
• The range and stability, especially in the case of floors thin work, must be supported by suitable substructures. Take into account the weight of the appliance and additional loads
• Installation is possible in stone, synthetic or solid wood tops. The thermal resistance and watertightness of the edges of the notch must be respected
• The groove must be continuous and uniform, so as to guarantee the correct positioning of the appliance on the gasket
• The width of the joint may vary due to dimensional tolerances of the combinations and the notch on the worktop
• If you install several appliances in single niches, provide a space of at least 50 mm between the niches
• To be used only with ferromagnetic pots
• The Wok - WP 400001- cannot be used on this hob
• The appliance is equipped with fixing springs which lock the top after insertion from above
• Appliance weight approx. 31

Connection values:

• Total absorption 7.4 kW
• Connection cable length 1.5 m without plug
• Check the manual to switch off the WiFi module
