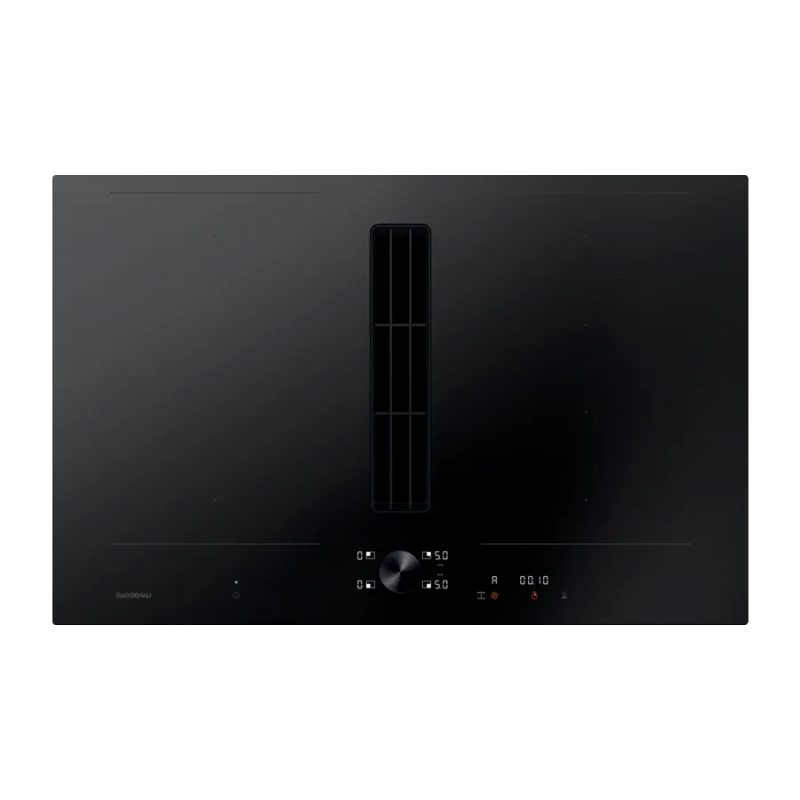

Gaggenau Filotop induction hob with integrated hood CV 282 101 without frame 80 cm

Cod. CV 282 101

Cod. EAN 4242006289737

Cooking zones:

• 2 Flexi zones of 20x24 cm (2200 W, with 3700 W booster). If joined 40x24 cm (3300 W, with 3700 W booster)
• 2 Flexi zones of 20x24 cm (2200 W, with 3700 W booster). When combined 40x24 cm (3300 W, with 3700 W booster)

Performance:

• Performance and noise: 3 levels power + intensive
• Max. suction (according to DIN EN 61591):
  • Extraction: 530/636 m3 / h
  • Recirculation: 497/627 m3 / h
• Sound power (according to EN 60704-3):
  • Extraction: 70/74 dB (A) re 1 pW
  • Recirculation: 67/72 dB (A ) re 1 pW
• Sound pressure (according to EN 60704-2-13):
  • Extraction: 59/62 dB (A) re 20 microPa
  • Recirculation: 55/61 dB (A) re 20 microPa

Operation:

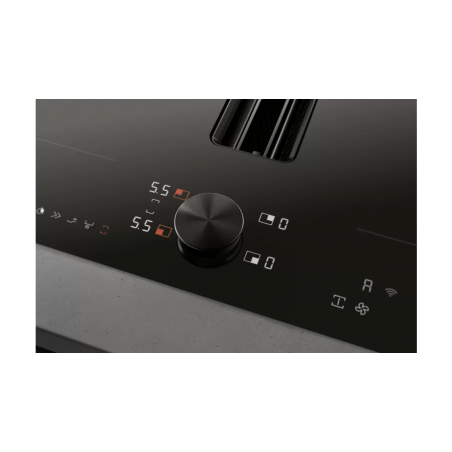

• Twist-Pad control with removable magnet selector for easier cleaning of the hob
• User friendly control with 2-color display (white / orange)
• Cooking zone indicators on the glass ceramic
• 17-level electronic cooking zone control
• 3-level control + 1 intensive level of the ventilation system

Features:

• Rectangular flexi zones
• Automatic pan recognition
• Professional cooking function
• Po ssible operation combined with Cooking Sensor CA 060 300
• Frying sensor
• Booster function for pots
• Booster function for pans
• Maintenance function hot
• Sensor-controlled ventilation system operation
• Automatic activation of the ventilation system when a cooking zone is used
• Interval suction, 6 minutes
• Sensor-controlled post-cooking function
• Fat filter saturation indicator and air filter
• Removable and dishwasher-safe filter
• Cover element of the suction cavity in high grade black zinc, dishwasher safe
• BLDC brushless electromagnetic motor operation technology for top efficiency
• Interior optimized for air circulation extremely efficient
• Stopwatch
• Cooking timer (up to 99 minutes)
• Programmable cooking time
• Function ne Memory
• Options menu
• Power Management function: electronic regulation and limitation of power consumption as needed
• Home Connect: Digital services integrated with home network via LAN cable (recommended) or via WiFi
• The operation of the Home Connect mode depends on the availability of the Home Connect service in each country

Consumption values:

• Energy efficiency class A
• Energy consumption 56.9 kWh / year
• Ventilation efficiency class: A
• Filter efficiency class: B
• Min. 61 db / max. 70 db with normal suction level

Safety:

• Main switch (on / off)
• Operation indicator
• Pan recognition system
• 2-stage residual heat indicator
• Child lock
• Safety thermocouple
• Upper protection dishwasher safe
• Drip container with 0.9 liter capacity, dishwasher safe

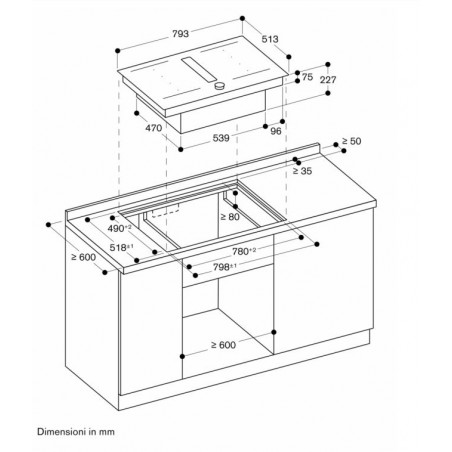

Assembly precautions:

• Minimum width of the mobile bottom: 60 cm
• Depth of immersion in the work surface: min. 60 cm with non-ducted recirculation, min 65 cm with ducted recirculation / extraction
• Depth in the cabinet 227 mm
• The non-ducted recirculation set CA 082 010 requires a vertical opening of min. 25 mm behind the rear panel of the cabinet. 50 mm is recommended for optimal performance
• The air outlet on the rear of the appliance is directly accessible with a flat duct (diameter 150)
• In extraction mode a one-way deflector with a maximum opening pressure of 65 Pa must be installed
• For optimal performance in air recirculation, a discharge area of at least 440 cm2 is recommended
• To be used only with ferromagnetic pots
• For recirculation installations planned towards non-insulated external walls, a design with ducted suction is recommended.
• The efficient suction motor allows a ducting system up to at 8 meters and 3 bends at 90 degrees, with the guarantee of satisfactory performance
• The luminaire can be installed from below
• Weight of the luminaire approx. 27
• The appliance must be easily accessible from below
• Installation is possible in stone floors, synthetic or solid wood. The thermal resistance and watertightness of the edges of the carving must be respected
• The size of the gap between the hob and the top is variable according to the precision of the carving on the worktop

Connection values:

• Total absorption 7.4 kW
• Connection cable length 1.5 m without plug
• Check the manual to turn off the WiFi module
