Class 5 boiler | Power output to water 41.8 kW-H2O | 1250 m3 heatable | Class A+
Eva Calòr Pellet boiler with integrated DHW EV 50 9016006300 aluminium/black finish
9016006300
Available in 15/20 working days
Class 5 boiler | Power output to water 41.8 kW-H2O | 1250 m3 heatable | Class A+
Are you interested in purchasing more products?
You did not find the product you were looking for in the category
Pellet boilers? Contact us now to receive a
Quote
Write us
Whatsapp
Call us
Use the Coupon NEWREG10: for new registered 10.00 euro discount*
* with a minimum purchase of only 200 euros
€9,691.68
€6,590.34
Save 32%
VAT included

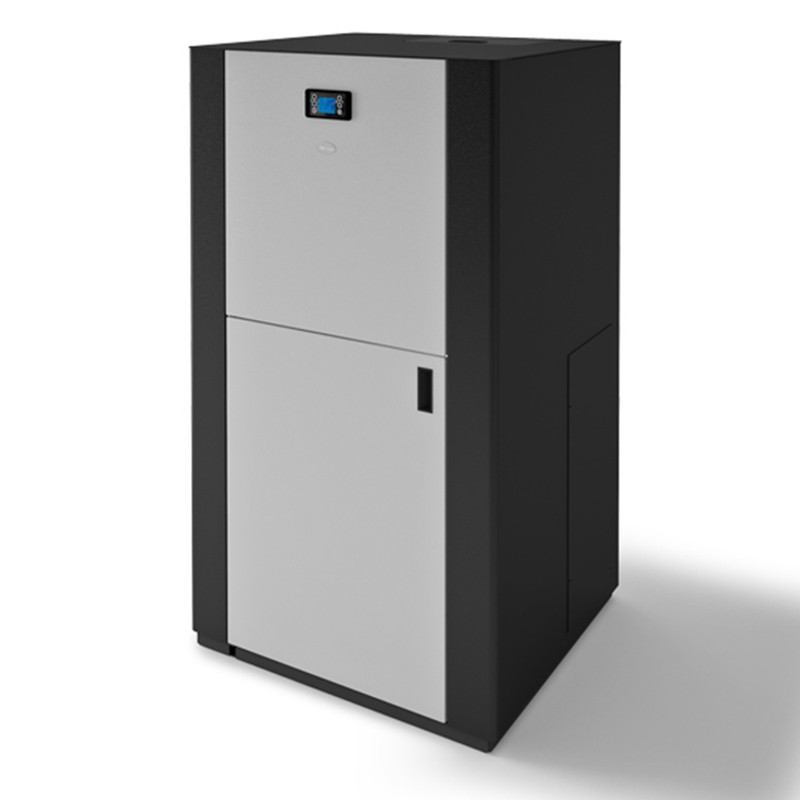

Eva Calòr Pellet boiler with integrated DHW EV 50 9016006300 aluminium/ black finish
Ev 50 model
Cod. 9016006300
FEATURES
• Class 5 boiler
• Double door
• 85 kg pellet tank
• 5 operating powers
• Display with 6-language menu
• Self-cleaning
• System for reconveying unburned pellets
• Automatic Eco-box cleaning
• Automatic turbulator cleaning
• Continuous operation of the auger motor for maximum silence
• Removable ash drawer for ash recovery in a separate compartment
• High efficiency insulation
• Reduced maintenance
• Safety thermostat
• Predisposition for external thermostat
• Double safety pressure switch
• Pressure transducer for water
• Chronothermostat
• Circulation pump
• Expansion vessel
• Safety valve
• Three-way valve (EV 50 ACS)
TECHNICAL DATA
• Burned power: max 45.5 kW - min 12.0 kW
• Power output to water: max 41.8 kW - min 11.4 kW
• Energy Efficiency Class: A+
• Efficiency: Pmax 92.0% - Pmin 95.3% (to water )
• CO value with 13% O2 (%): Pmax 0.011% - Pmin 0.035%
• Hourly pellet consumption: max 9.4 kg/h - min 2.5 kg/h
• Tank capacity: 85 kg
• Heated room size: 1250 m3
• Boiler water: 40 l
• Minimum distances from flammable walls: side: 25 cm - back: 25 cm - front: 100 cm
• Power supply voltage/Freq.: 230V - 50 Hz
• Nominal electrical power: 400 W

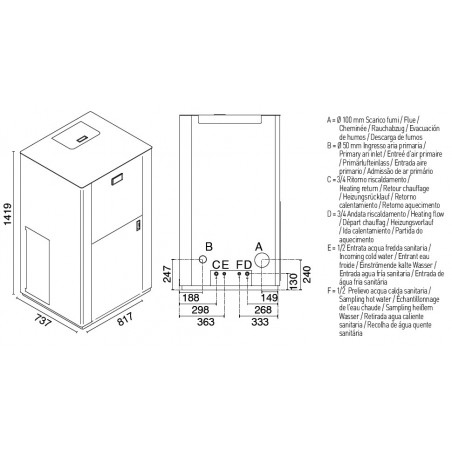

• Dimensions: L 81.7 x D 73.7 x H 141.9 cm
• Weight: 318 kg
• Steel combustion chamber
• Stainless steel brazier
• Complies with standards: EN 303-5:2012 - BImSchV II - 15a B-VG - LRV/VKF - BAFA
• Removable ash drawer for ash recovery in a separate compartment
• Fume exhaust: Rear
• Automatic Eco-Box cleaning
• Automatic turbulator cleaning
• Integrated ACS
OPTIONAL
• Remote control
• WI-FI module for remote control
• Protection platform
• Kettle
9016006300
Data sheet
- Finishing
- Aluminum
Black - Installation
- Freestanding
- Energy rating
- A+
- Typology
- Ad Acqua
Pellet - Height
- 1419 mm
- Depth
- 737 mm
- Larghezza
- 817 mm
- m3 riscaldabili
- 1250
