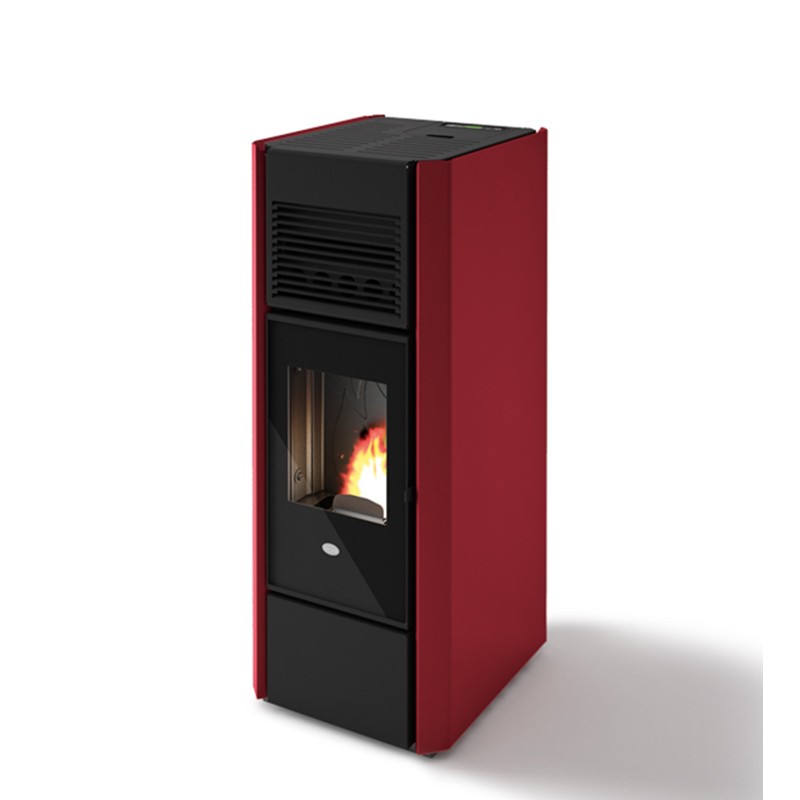

Eva Calòr Pellet stove INES 901646900 red finish

Ines model

Cod. 901646900

FEATURES
• Hand-molded and finished steel cladding
• Door front in black silk-screened glass
• Forced ventilation
• 22 kg pellet tank
• 5 operating powers
• Cast iron combustion chamber
• Uses pellets and chopped solid biomass (BMS)
• Self-regulated combustion via control air flow (DFCS)
• Removable ash drawer for ash recovery
• Removable handle
• PREMIUM ducting (double ventilation)
• Upper - rear smoke outlet
• Safety thermostat
• Predisposition for external thermostat
• Safety pressure switch
• Chronothermostat

TECHNICAL DATA
• Power burned: max 15.4 kW - min 4.2 kW
• Power output in heating: max 14.0 kW - min 4.0 kW
• Energy efficiency class: A+
• Efficiency: Pmax 88.4% - Pmin 95.0%
• CO value with 13% O2 (%): Pmax 0.014% - Pmin 0.023%
• Hourly pellet consumption: max 3.4 kg/h - min 1.1 kg/h
• Tank capacity : 22 kg
• Heated room size: 240 - 320 m3
• Minimum distances from flammable walls: side: 30 cm - back: 20 cm - front: 100 cm
• Power supply voltage/Freq .: 230V - 50 Hz
• Rated electrical power: 340 W

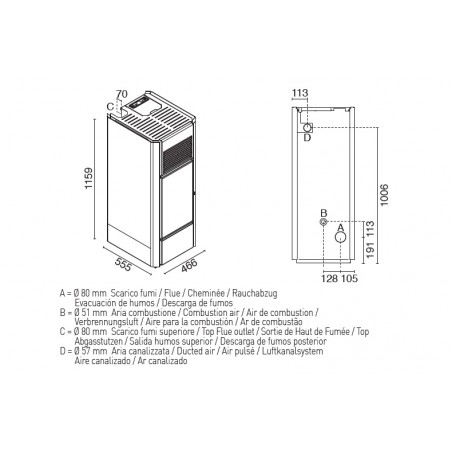

• Dimensions: L 46.6 x D 55.5 x H 115.9 cm
• Weight: 122 kg
• Combustion chamber in cast iron
• Stainless steel brazier
• Complies with standards: EN14785 - BImSchV II - 15a B-VG - LRV/VKF
• Ash drawer: Removable for ash recovery

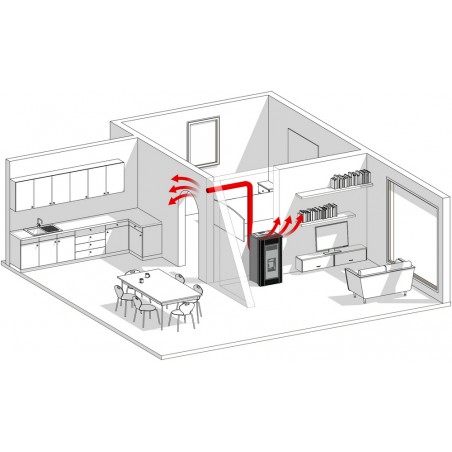

• Double ventilation ducted stove: Premium
• Smoke exhaust: Top / Rear

OPTIONAL
• Remote control
• WI-FI module for control remotely
• Protection platform

Pellet stoves
The Eva Calòr Pellet range covers powers from 6 kW up to 15 kW, with coverings in steel or natural stone, in majolica and glass to be able to offer a vast choice of products and finishes
They are stoves equipped with an ash drawer, have multiple combinations for exhausting fumes and can be ducted; thanks also to reduced consumption and ease of programming, Eva Calòr stoves are the right product for heating your home
