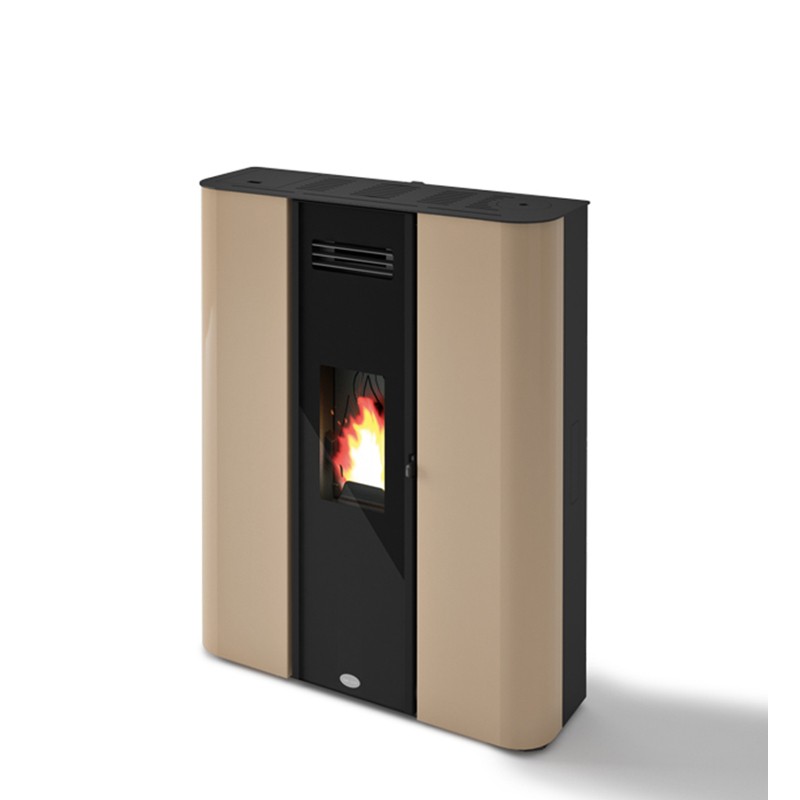

Eva Calòr Slim airtight pellet stove DILETTA 901660700 dove gray finish

Diletta model

Cod. 901660700

FEATURES
• Sides shaped with a wide radius
• Door front in black silk-screened glass
• Space saving
• Ventilation forced
• 5 operating powers
• Cast iron combustion chamber
• Cast iron brazier
• Airtight stove
• Removable ash drawer for ash recovery
• Removable handle
• Double ducting that can be partitioned with dedicated fan
• Upper - rear smoke outlet
• Safety thermostat
• Predisposition for external thermostat
• Safety pressure switch
/>• Chronothermostat

TECHNICAL DATA
• Power burned: max 10.5 kW - min 3.2 kW
• Power output in heating: max 9.2 kW - min 3.0 kW
• Energy efficiency class: A+
• Efficiency: Pmax 88.0% - Pmin 92.2%
• CO value with 13% O2 (%): Pmax 0.009% - Pmin 0.023%
• Hourly pellet consumption: max 2.2 kg/h - min 0.7 kg/h
• Tank capacity: 13.5 kg
• Heated room size: 140 -200 m3
• Minimum distances from flammable walls: side: 20 cm - back: 5 cm - front: 100 cm
• Power supply voltage/Freq.: 230V - 50 Hz
• Nominal electrical power: 360 W

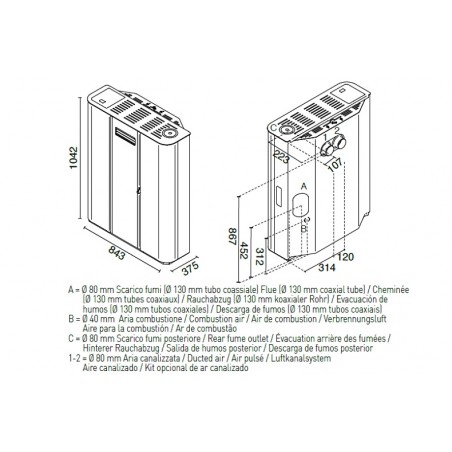

• Measurements: L 84.3 x D 37.5 x H 104.2 cm
• Weight: 108 kg
• Combustion chamber: Cast iron
• Cast iron brazier
• Complies with standards: EN14785 - BImSchV II - 15a B-VG - LRV/VKF
• Hermetic stove
• Smoke exhaust: Top / Rear
• Double ducting that can be partitioned with dedicated fan
• Removable ash drawer for recovery ashes

OPTIONAL
• Remote control
• WI-FI module for remote control
• Protection platform

Slim Pellet Stoves
The space-saving SLIM stoves are the ideal stoves for small apartments, corridors, narrow rooms and to save space inside the rooms where they will be positioned
The possibility of choosing the direction of smoke exhaust allows multiple installations, some models can even be suspended and positioned just 5 cm away from the wall
