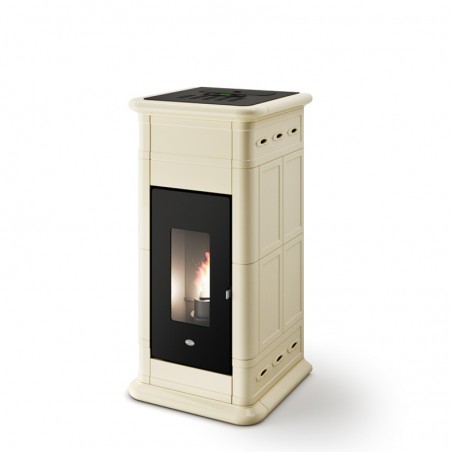

Eva Calòr Pellet thermo stove VENERE 17.5 9016004800 cream finish

Venere 17.5 model

Cod. 9016004800

FEATURES
• Majolica cladding
• 23 kg pellet tank
• 5 operating powers
• Display with 6 language menu
• Removable handle
• Remote control supplied
• Safety thermostat
• Predisposition for external thermostat
• Safety pressure switch
• Pressure transducer water pressure
• Chronothermostat
• Circulation pump
• Expansion vessel
• Safety valve

TECHNICAL DATA
• Burned power: max 17.5 kW - min 4.5 kW
• Power output in heating: max 16.3 kW - min 4.1 kW
• Power output to water: max 13.0 kW - min 2.5 kW
• Energy efficiency class: A+
• Efficiency: Pmax 91.9% - Pmin 95.5%
• CO value with 13% O2 (%): Pmax 0.008% - Pmin 0.007 %
• Hourly pellet consumption: max 3.7 kg/h - min 0.9 kg/h
• Tank capacity: 23 kg
• Heated room size: 250 - 350 m3
• Distances minimum from flammable walls: side: 20 cm - back: 20 cm - front: 100 cm
• Power supply voltage/Freq.: 230V - 50 Hz
• Rated electrical power: 380 W
• Measurements: L 55.2 x D 58.7 x H 110.3 cm
• Weight: 165 kg
• Steel combustion chamber
• Stainless steel brazier
• Complies with standards: EN14785 - BImSchV II - 15a B-VG - LRV/VKF - BAFA
• Remote control: included
• Flue exhaust: Rear

OPTIONAL
• Protection platform
• Kettle
• WI-FI module for remote control

Hydro stoves: up to 65% energy savings
For this purpose, the Hydro stoves have been designed with a corten steel coil exchanger, which eliminates the possibility of leaks over time and reduces ordinary maintenance to a minimum
The Hydro stoves are the maximum expression of Eva's design Calòr, the study and use of different types of materials guarantee cutting-edge thermo products. Different versions are available: insulated, space-saving or with additional tank; all models characterized by high efficiency and reduced maintenance intervals. Once turned on, they heat the radiators in a few minutes. Furthermore, some models can be connected to the sanitary circuit for total coverage of home heating
