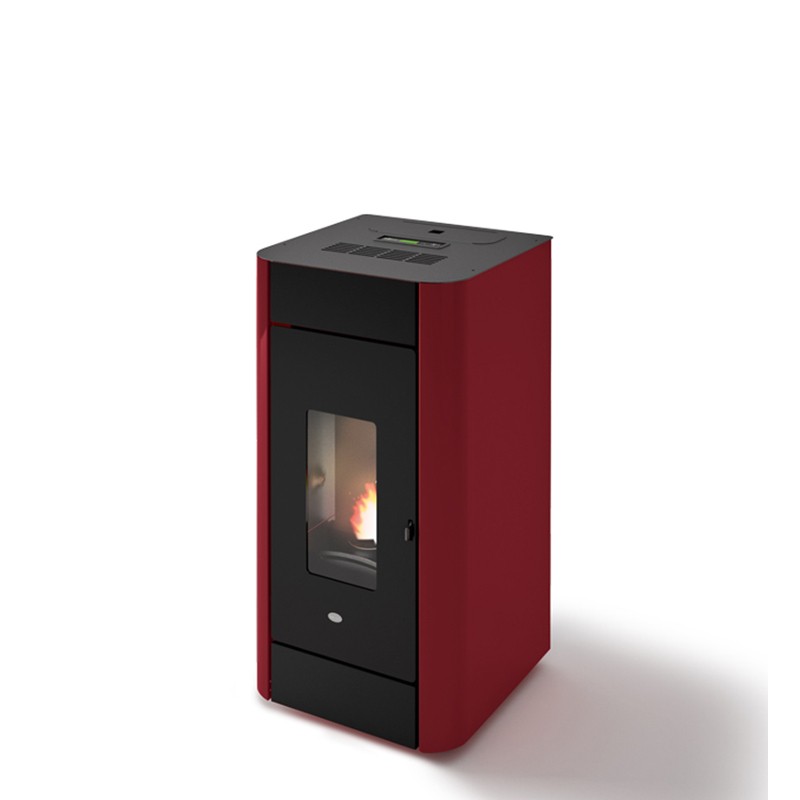

Eva Calòr Ventilated pellet thermostove FRIDA 13 901670600 red finish

Frida 13 model

Cod. 901670600

FEATURES
• Forced ventilation
• Upper hot air outlet
• 5 operating powers

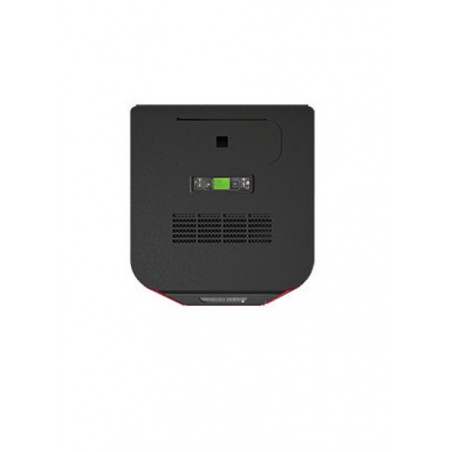

• Display with menu 6 languages
• Removable handle
• Remote control supplied
• Safety thermostat
• Predisposition for external thermostat
• Safety pressure switch
• Pressure transducer for the water
• Chronothermostat
• Circulation pump
• Expansion vessel
• Safety valve

TECHNICAL DATA
• Burned power: max 12.5 kW - min 3.5 kW
• Power output in heating: max 11.3 kW - min 3.2 kW
• Power output to water: max 9.0 kW - min 2.2 kW
• Energy efficiency class: A+
• Efficiency: Pmax 91.3% - Pmin 93.3%
• CO value with 13% O2 (%): Pmax 0.003% - Pmin 0.017%
• Hourly pellet consumption: max 2.6 kg/h - min 0.7 kg/h
• Tank capacity: 20 kg
• Heated room size: 180 - 240 m3
• Minimum distances from flammable walls: side: 20 cm - back: 20 cm - front: 100 cm
• Power supply voltage/Freq.: 230V - 50 Hz
• Nominal electrical power: 380 W

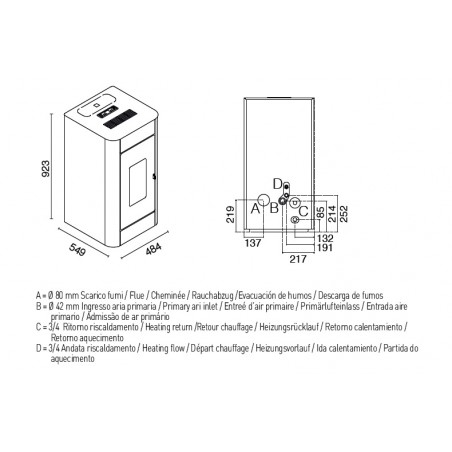

• Measurements: L 48.4 x D 55.3 x H 92.3 cm
• Weight: 114 kg
• Steel combustion chamber
• Stainless steel brazier
• Complies with standards: EN14785 - BImSchV II - 15a B-VG - LRV/VKF - BAFA
• Remote control: included
• Smoke exhaust: Rear

OPTIONAL
• Platform protection
• Kettle
• WI-FI module for remote control

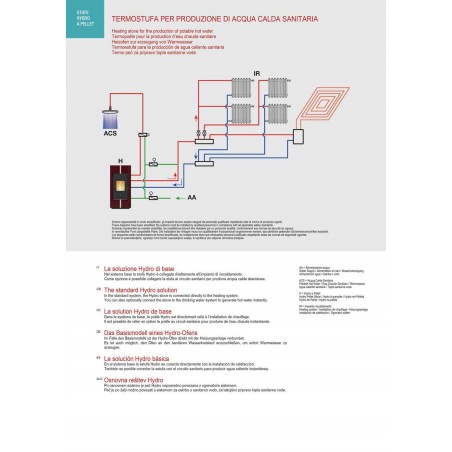

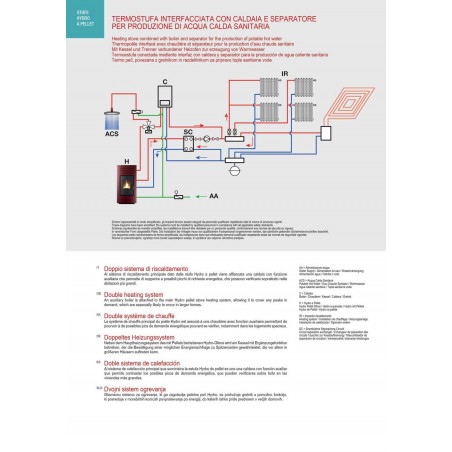

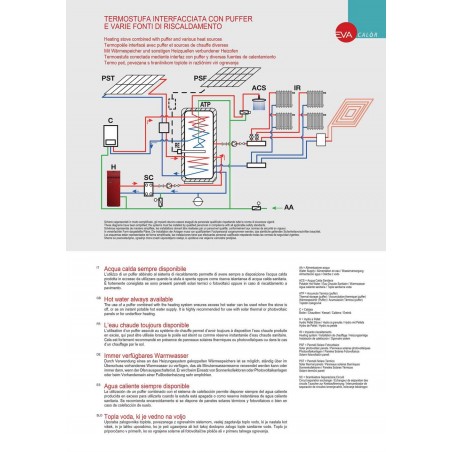

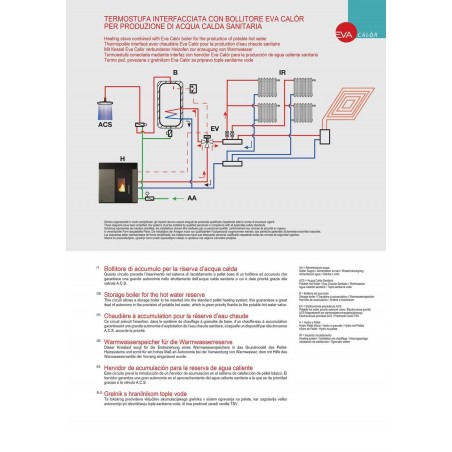

Hydro stoves: up to 65% energy savings
For this purpose, the Hydro stoves have been designed with a corten steel coil exchanger, which eliminates the possibility of leaks over time and reduces ordinary maintenance to a minimum.
The Hydro stoves are the maximum design expression of Eva Calòr, the study and use of different types of materials guarantee cutting-edge thermo products. Different versions are available: insulated, space-saving or with additional tank; all models characterized by high efficiency and reduced maintenance intervals. Once turned on, they heat the radiators in a few minutes. Furthermore, some models can be connected to the sanitary circuit for total coverage of home heating
