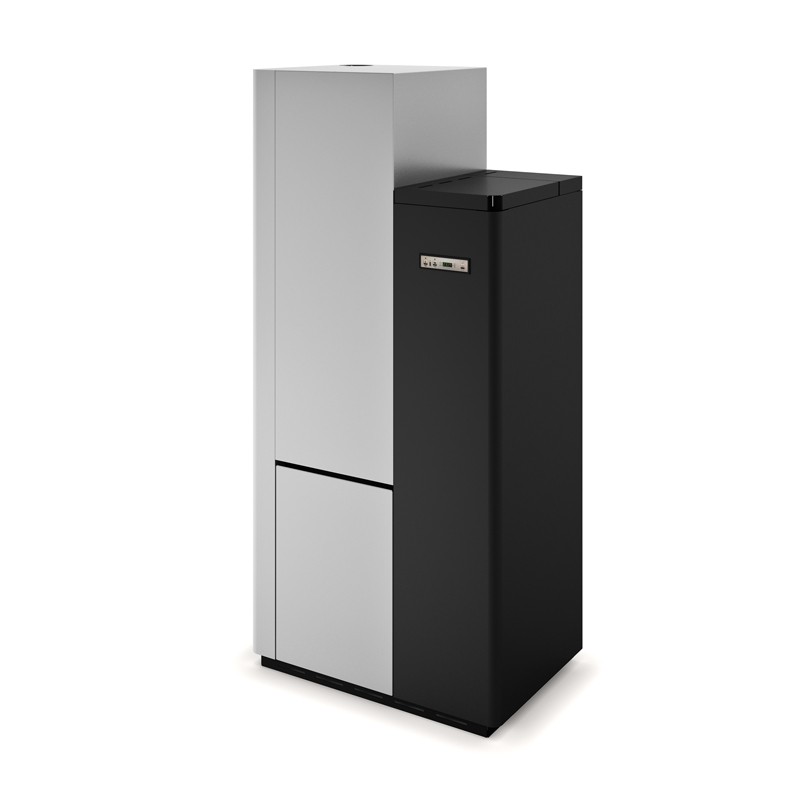

Eva Calòr hermetic pellet thermostove TS 80 9016017800 white/black finish

Model Ts 80

Cod. 9016017800

FEATURES
• Heating system with storage
• Double door
• 45 kg pellet tank
• 5 powers operating instructions
• Display with 6-language menu
• Vermiculite combustion chamber
• Airtight stove
• Removable handle
• Upper smoke outlet
• Safety thermostat
• Predisposition for external thermostat
• Safety pressure switch
• Chronothermostat

TECHNICAL DATA
• Power burned: max 11.4 kW - min 5.3 kW
• Power output in heating: max 10.2 kW - min 5.0 kW
• Power output to water: max 8.0 kW - min 3.4 kW
• Efficiency class energy: A+
• Efficiency: Pmax 90.0% - Pmin 93.5%
• CO value with 13% O2 (%): Pmax 0.018% - Pmin 0.020%
• Hourly pellet consumption: max 2.4 kg/h - min 1.1 kg/h
• Tank capacity: 45 kg
• Heated room size: 170 - 230 m3
• Boiler water: 80 l
• Distances minimum from flammable walls: side: 40 cm - back: 20 cm - front: 70 cm
• Power supply voltage/Freq.: 230V - 50 Hz
• Nominal electrical power: 350 W

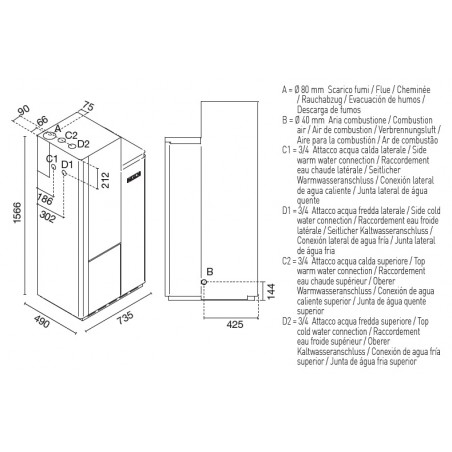

• Measurements: L 73.5 x D 49.0 x H 156.6 cm
• Weight: 142 kg
• Combustion chamber in vermiculite
• Stainless steel brazier
• Complies with standards: EN14785 - BImSchV II - 15a B-VG - LRV/VKF - BAFA
• Airtight stove
• Smoke outlet: Upper

OPTIONAL
• Remote control
• WI-FI module for remote control
• Protection platform

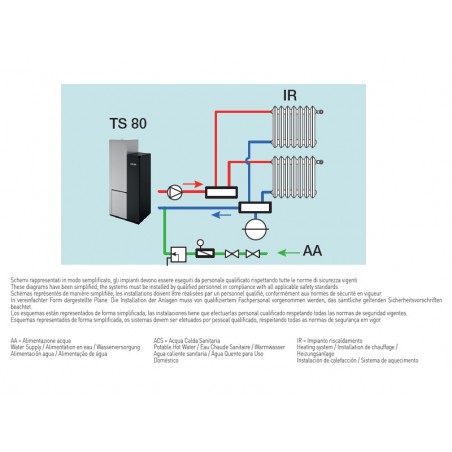

Hydro stoves: up to 65% energy savings
For this purpose, the Hydro stoves have been designed with a corten steel coil exchanger, which eliminates the possibility of leaks over time and reduces ordinary maintenance to a minimum.
The Hydro stoves are the maximum design expression of Eva Calòr , the study and use of different types of materials guarantee cutting-edge thermo products. Different versions are available: insulated, space-saving or with additional tank; all models characterized by high efficiency and reduced maintenance intervals. Once turned on, they heat the radiators in a few minutes. Furthermore, some models can be connected to the sanitary circuit for total coverage of home heating
