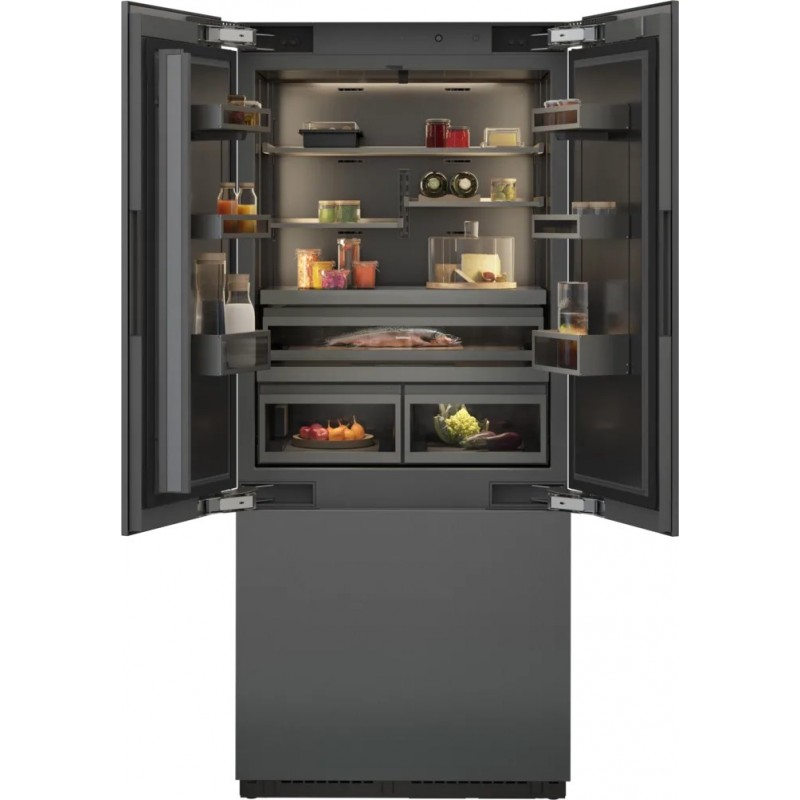

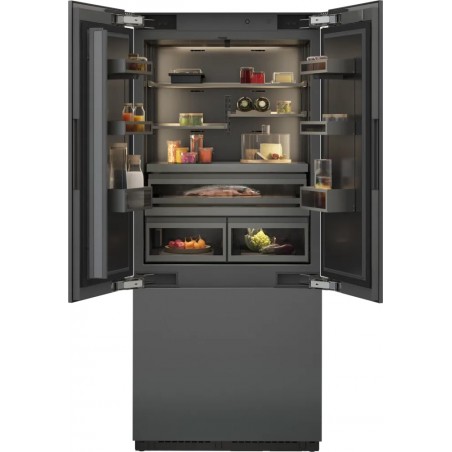

Gaggenau RVY497190 built-in side by side refrigerator, 89 cm

Cod. RVY 497 190

Cod. EAN 4242006305123

• Dark brushed stainless steel interior with solid anthracite-coloured aluminium elements
• Warm, glare-free LED lighting for perfect food presentation in all compartments
• Doors equipped with Open Assist for integration in handle-free compositions
• Door interiors in dark brushed stainless steel
• Flexible and discreet guide system for shelves and door balconies

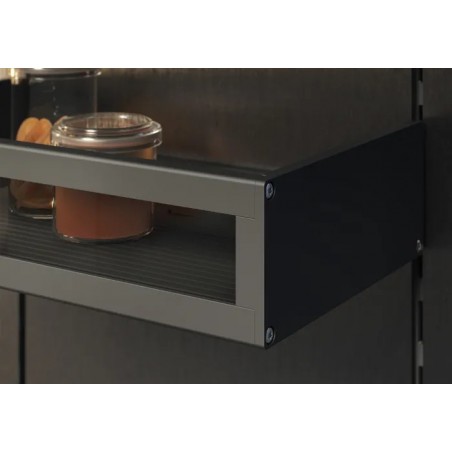

• Solid anthracite-coloured aluminium supports in the inner door

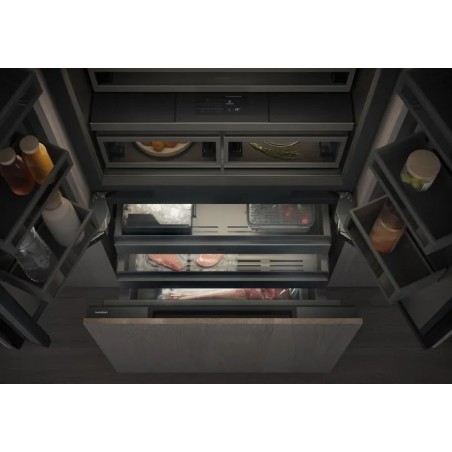

• Professional freshness maintenance system with 2 Fresh climate drawers and 1 chiller drawer
• Integrated ice maker with direct connection to the water supply
• Spacious freezer compartment, completely removable with 2 drawers interior

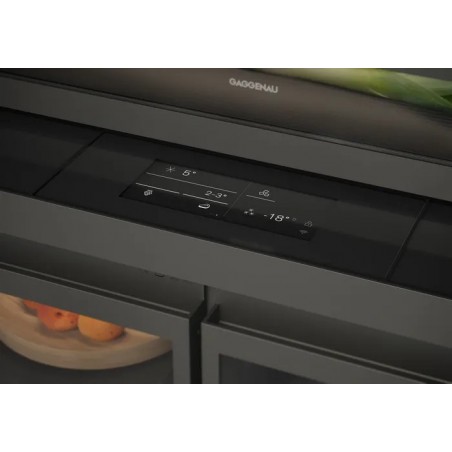

• Full touch TFT display
• Net capacity 576 litres

Operation
• Door opening with Open Assist
• Cushioned door closing thanks to the system SoftClosing
• Automatic light and display response with drawer interactions
• Automatic brightness adjustment based on ambient light
• Easily accessible TFT full touch display
• Intuitive text display
• Animated quick guide for maintenance assistance

Technical features
• Dynamic cooling
• Automatic defrosting
• Water purification 'constant air with two activated carbon filters
• Acoustic and visual signalling in case of anomalies

Home Connect
• Content management via cameras
• Customization function to save customized programs
• Remote control and monitoring
• Remote diagnosis

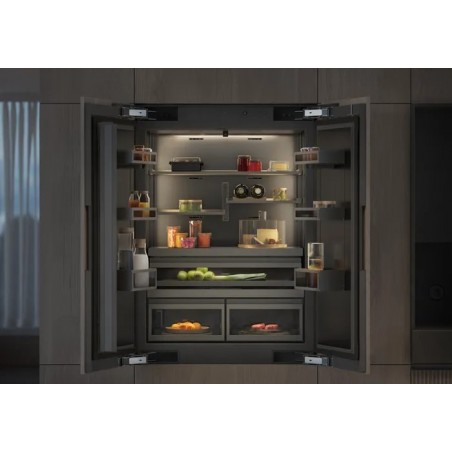

Refrigerator compartment
• Professional freshness maintenance system
• No-frost system with rapid freezing function
• Adjustable temperature from +2 °C to +8°C
• 3 unbreakable glass shelves with frame in aluminium, height-adjustable
• 1 shatterproof glass shelf with matt satin finish
• Optimal storage with warm, white, glare-free light, with hidden LED light bars (3000 K)

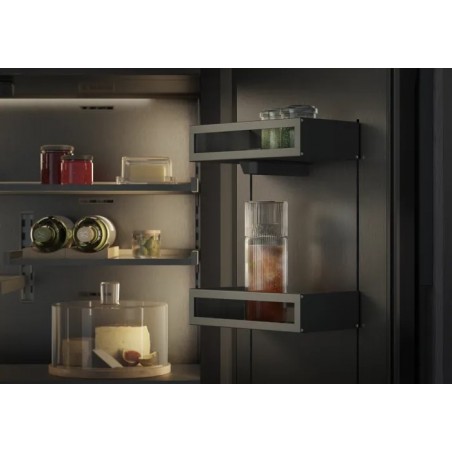

• Extremely flexible positioning of the door shelves
• 6 door shelves, 4 height-adjustable

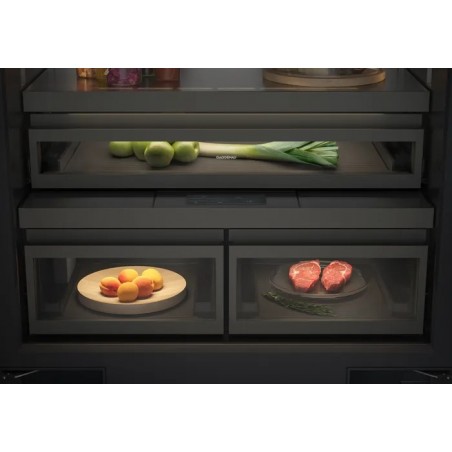

Fresh climate drawer
• 2 Fresh climate drawers with climate control humidity
• Adjustable temperature from -1 °C to +2 °C
• Ideal storage conditions for different foods thanks to dedicated programs (e.g. fruit, vegetables, meat)
• Regulation individual temperature and humidity control
• Increased storage time with ethylene absorber
• Indirect lighting, transparent front
• Fully extractable, with soft closing

Drawer chiller
• Temperature depends on the refrigerator compartment (always 2K - 3K lower)
• Indirect lighting, transparent front
• Fully extractable, with soft closing

Freezer compartment
• No-frost technology with intensive freezing at -30 °C
• Freezer compartment ****
• Adjustable temperatures from -16 °C to -24 °C
• Protection against freezer burns
• Oxidation protection
• Freezing capacity 14 kg /24 h
• Autonomy in case of failure 19 h
• Spacious and fully extractable freezer drawer with synchronous sliding telescopic guides
• 2 removable internal drawers
• Warm white, anti-glare LED light (3000 K) inside the freezer compartment
• Net capacity 197 litres

Ice maker
• Ice maker integrated into the freezer compartment, with direct connection to the mains water
• Can be deactivated separately
• Particulate filter for water inlet, integrated in the ventilation grille area
• Filter health indicator on the full touch TFT display
• Ice production approx. 3 kg /24 h
• Removable ice cube container with capacity of approximately 3
• Integrated and easily removable ice scoop

Consumption values
• Energy efficiency class D on a scale of energy efficiency classes from A to G
• Energy consumption 285 kWh/year
• Noise level 39 db (A) re 1 pW

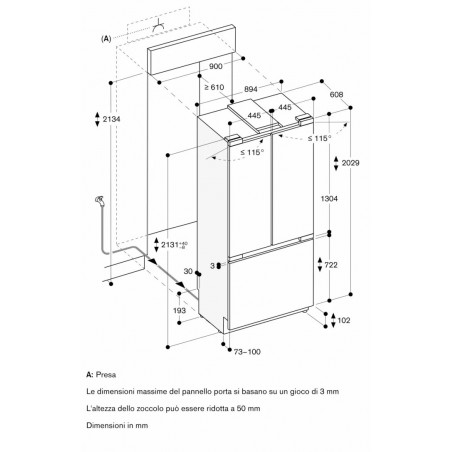

Assembly precautions
• Flat hinges
• Door opening angle 115°, can be locked at 90°
• Max. weight door panels: Each door 64 kg. Drawer14 kg
• When the sleep mode is active the appliance can only be opened by means of the handle
• The valve for the water connection must be positioned near the appliance and always be accessible
• If the water pressure exceeds 0.8 MPa (8 bar), connect a bleed valve between the tap and the connection pipe

Connection values
• Power consumption total 0.090 kW
• Connection cable length 3.0 m, with Schuko plug
• Connection for water loading
• Supply hose 2.8 m with 3/4" connection
• Water pressure 2 bar to 8 bar
• Sleep mode certified by Star-K
• Total capacity of all refrigerator compartments: 379 litres
