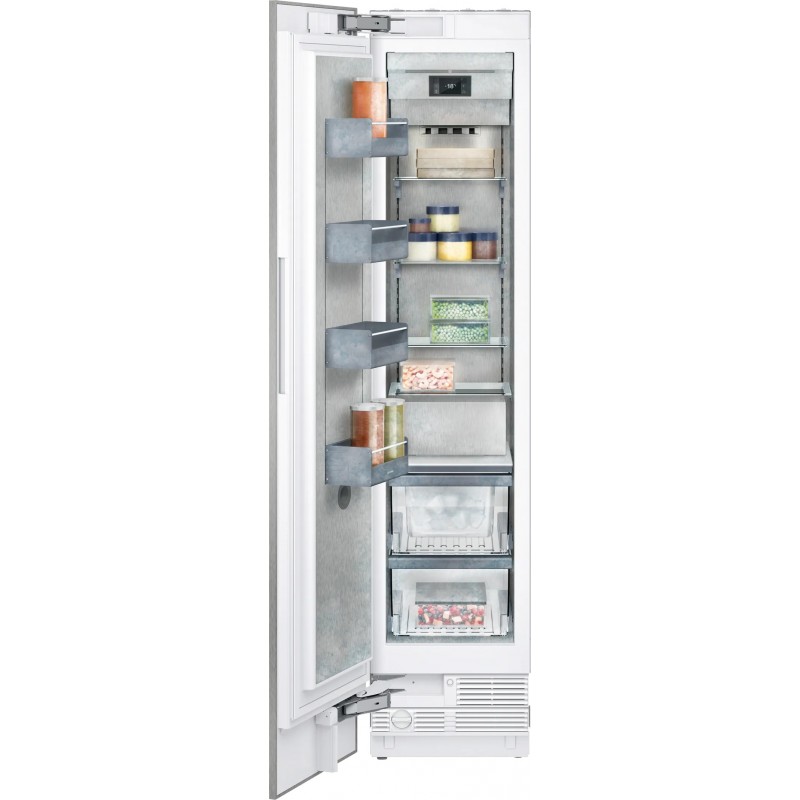

Gaggenau RF411306 45 cm built-in single-door freezer

Cod. RF 411 306

EAN Code 4242006301996

• Stainless steel interior and solid anthracite-coloured aluminium elements
• Lighting points with warm, anti-glare LED light
• Doors equipped with Open Assist in two modes: 1. Push-to-Open function to integrate the fridge into handle-less compositions 2. Pull-to-Open function to facilitate opening using the handle
• The drawers in the RC and RF are positioned at the same height. In case of side-by-side installation, the glass shelves and the supports in the inner doors can be aligned on the same level
• Internal material and aesthetics as RC models: - glass shelves - solid anthracite-coloured aluminium supports in the inner door
• Flat stainless steel door interior
• Flexible and discreet guide system for shelves and balconies
• Integrated ice maker with direct connection to the water supply
• TFT touch display
• Net capacity 240 litres

Operation
• TFT display
• Intuitive text display

Technical features
• Dynamic cooling
• Automatic defrosting
• Cushioned door closing thanks to the SoftClosing system
• Sleep mode certified by Star-K
• When sleep mode is active, the appliance can only be opened using the handle
• Acoustic and visual signal in case of anomalies
• Integrated digital services (Home Connect) with the wireless home network via WiFi
• The functioning of the Home Connect mode depends on the availability of the Home Connect service in each country. For more information visit www.home-connect.com

Freezer compartment
• No-frost technology with intensive freezing at -30 °C
• Adjustable temperature from -14 °C to -24 °C
• Freezer compartment ****
• Freezing capacity 16 kg /24 h
• 6 h fault autonomy
• 4 shatterproof glass shelves, white glass, 3 of which are height-adjustable
• 2 fully removable drawers with transparent front
• LED spotlights with warm white, glare-free light (3500 K)
• Extremely flexible positioning of door shelves
• 4 height-adjustable door holders

Ice maker
• Ice maker integrated into the freezer compartment, with direct connection to the water supply
• Particulate filter for water inlet, integrated in the area of the ventilation grille
• Saturation indicator available on TFT touch display
• Can be deactivated separately
• Ice production approx. 1.4 kg/24 h
• Removable ice cube container with 4 kg capacity

Consumption values
• Energy efficiency class E on a scale of energy efficiency classes from A to G
• Energy consumption 246 kWh/year
• Noise level 42 db (A) re 1 pW

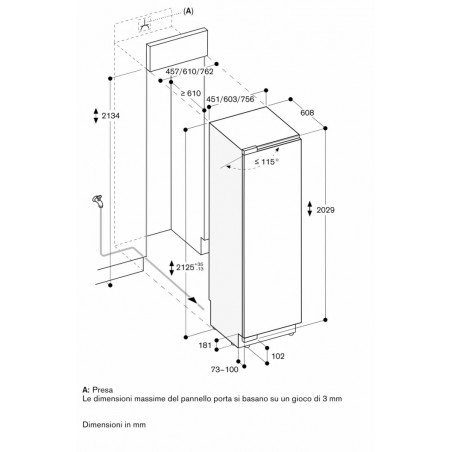

Installation precautions
• Flat hinges
• Left hinge, reversible
• Door opening angle 115°, can be locked at 90°
• For an installation with a 90° door opening angle, the ice container must be replaced with the small ice container (RA 448 220). This must be done before fixing the door
• Max. door panel weight: 59 kg
• The water connection valve must be positioned close to the appliance and always accessible
• If the water pressure exceeds 0.8 MPa (8 bar), connect a bleed valve between the tap and the connection pipe

Connection values
• Total power consumption 0.090 kW
• Connection cable length 3.0 m, with Schuko plug
• Water supply connection
• Connection cable length 2.0 m with 3/4" ring nut
• Water pressure from 2 to 8 bar
