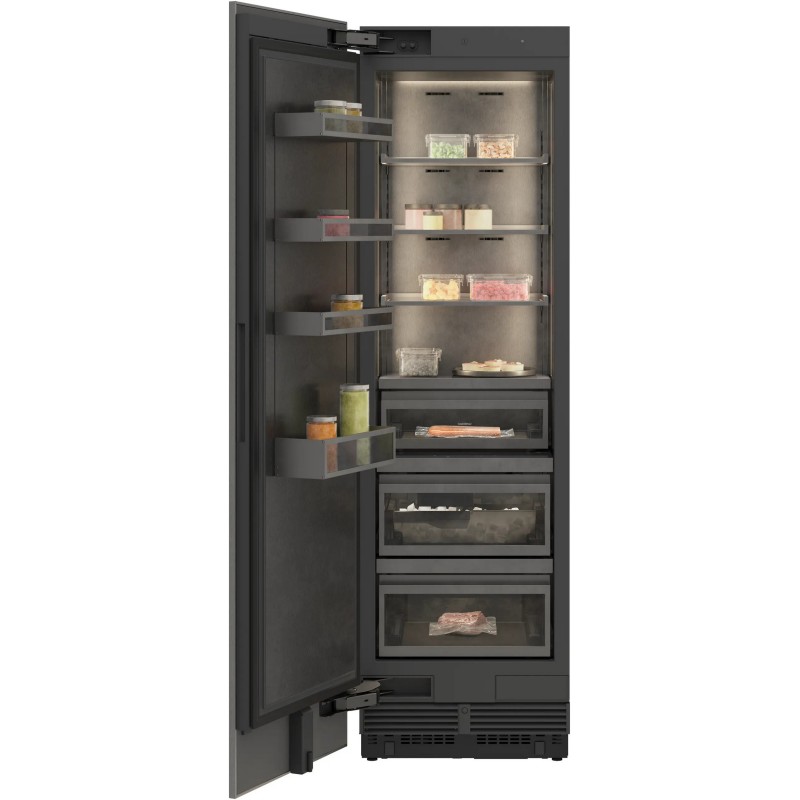

Gaggenau 60 cm Vario RVF467190 built-in single-door freezer

Gaggenau Vario RVF467190 60cm Built-in Single Door Freezer

Code RVF 467 190

EAN Code 4242006317300

Included
• 1 ice scoop
• 1 ice cube tray

Highlights
• Dark brushed stainless steel interior with solid anthracite aluminum elements
• Warm white, glare-free LED lighting
• Doors equipped with Open Assist with two options:
- Push-to-open function for integration into handle-less fronts
- Pull-to-open function for easier opening of the door with a handle
• The drawers in the RVC and RVF models are positioned at the same height. With side-by-side installation, the glass shelves and door shelves can be aligned on the same level
• Door interiors in dark brushed stainless steel
• Flexible and discreet rail system for shelves and door shelves
• Solid anthracite-coloured aluminium supports in the inner door
• Total capacity: 400 litres

Operation
• Door opening with Open Assist
• Soft closing door
• Automatic response of light and display with interactions on the drawers
• Automatic brightness adjustment based on the ambient light
• Hidden touch display

Technical features
• Dynamic cooling
• Automatic defrosting
• Constant air purification with two activated carbon filters
• Sleep mode certified by Star-K
• When sleep mode is active, the appliance can only be opened via the handle
• Open door alarm and in case of anomalies

Selected digital services (Gaggenau Home Connect)
• Remote control and monitoring

Freezer compartment
• NoFrost technology with rapid freezing to -30°C
• Freezer compartment ****
• Adjustable temperature from -16°C to -24°C
• Freezer burn protection
• Oxidation protection
• Freezing capacity: 18 kg/24 hours
• Autonomy in the event of a fault: 15 hours
• Warm white, glare-free LED light (3000 K)
• 3 safety glass shelves with aluminum frames, individually adjustable in height
• Flexible positioning of the storage compartments thanks to the hidden rail system
• 4 height-adjustable storage compartments
• 3 fully extendable drawers with soft-closing system

Manufacturer Ice maker
• Ice maker integrated into a drawer to optimize the available space
• With direct connection to the water supply (load)
• Can be deactivated
• Ice production approximately 2.4 kg/24 hours
• Removable ice cube container with 3 kg capacity
• Integrated and easily removable ice scoop
• Particle filter for water inlet, integrated in the ventilation grille area
• Filter saturation indicator on the display

Consumption values
• Energy efficiency class E on a scale of energy efficiency classes from A to G
• Energy consumption 306 kWh/year
• Noise level 39 dB(A) re 1 pW

Installation precautions
• Flat hinges
• Right hinge, reversible

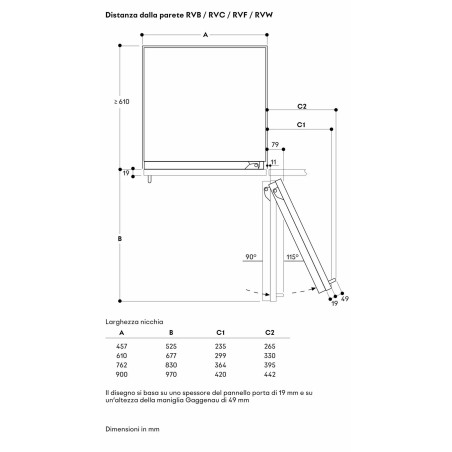

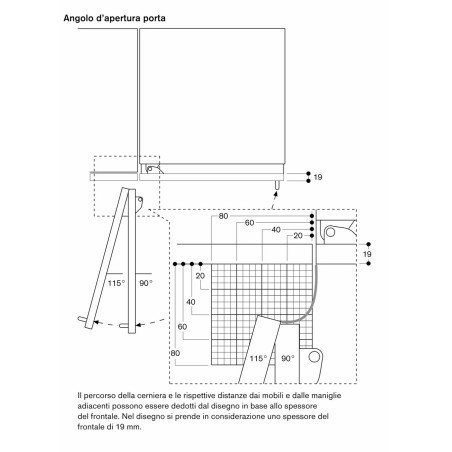

• Door opening angle of 115°, can be locked at 90°
• Max. weight door panels: 39 kg
• The water connection valve must be positioned close to the appliance and always accessible
• If the water pressure exceeds 0.8 MPa (8 bar), connect a vent valve between the tap and the connection hose

Connection values
• Total absorption 0.300 kW
• Connection cable 3.0 m, with Schuko plug
• Water supply connection
• Connection cable length 1.8 m with 3/4" ring nut
• Water pressure from 2 to 8 bar

Installation accessories (sold separately)
• RA 425 110: Handle, steel, long. With 3 fixing brackets, length 1,131 mm, height 49 mm, distance between the holes of the mounting brackets 554 mm
• RA 460 020: Connecting element for vertically split fronts (for flush-fitting fronts)
• RVA 421 120: Door panel in dark brushed stainless steel, with handle. For 45.7 cm wide appliances, 19 mm panel thickness
• RVA 421 620: Door panel in dark brushed stainless steel, with handle. For 61 cm wide appliances, 19 mm panel thickness
• RVA 421 722: Door panel in dark brushed stainless steel, with handle. For 76.2 cm wide appliances, 19 mm panel thickness
• RVA 421 924: Door panel in dark brushed stainless steel, with handle. For 89.4 cm wide appliances, 19 mm panel thickness
• RVA 423 141: Side profiles. 2 pieces, 3 mm
• RVA 428 120: Door panel in dark brushed stainless steel, without handle. For 45.7 cm wide appliances, 19 mm panel thickness.
• RVA 428 620: Door panel in dark brushed stainless steel, without handle. For 61 cm wide appliances, 19 mm panel thickness.
• RVA 428 722: Door panel in dark brushed stainless steel, without handle. For 76.2 cm wide appliances, 19 mm panel thickness.
• RVA 428 924: Door panel in dark brushed stainless steel, without handle. For 89.4 cm wide appliances, 19 mm panel thickness.
• RVA 460 000: Side-by-Side installation kit.
• RVA 460 020: Side-by-Side installation kit. Required for side-by-side installations of a Vario Expressive series appliance with a Vario 400 series appliance.
• RVA 460 900: Side-by-Side Installation Kit. Required for side-by-side installations of RVY 497, RVB 497, RVC 497, or RVF 497 (35.4" wide) when installed side-by-side in a niche previously used for side-by-side installation of RY 492, RB 492, or RC 492 (35.4" wide).
• RVA 460 910: Installation kit. Required for installation of RVY 497, RVB 497, RVC 497, or RVF 497 (35.4" wide) in a niche previously used for installation of RY 492, RB 492, or RC 492 (35.4" wide).
• RVA 466 100: Accessory for changing the door opening direction. For 18" wide RVCs and RVFs.
• RVA 466 600: Accessory for changing the door opening direction. For 61 cm wide RVCs and RVFs.
• RVA 466 700: Accessory for changing the door opening direction. For 76.2 cm wide RVCs and RVFs.
• RVA 466 900: Accessory for changing the door opening direction. For 90 cm wide RVCs and RVFs.

Special accessories (sold separately)
• RA 450 012: Activated carbon filter for water filtration system. For RVYs, RVBs and RVFs.
