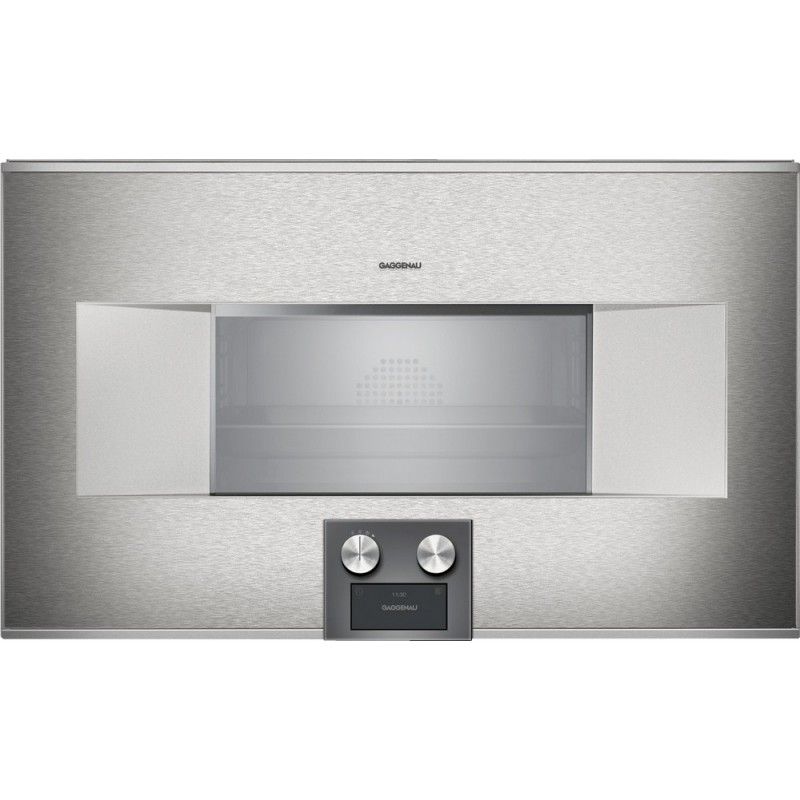

Gaggenau BS484112 76cm built-in right-hinged combi steam oven in stainless steel finish

Gaggenau BS 484 112 76 cm built-in right-hinged steam oven with stainless steel finish

Cod. BS 484 112

Cod. EAN 4242006277611

Heating systems:

• Hot air + 100% humidity
• Hot air + 80% humidity
• Hot air + 60% humidity
• Hot air + 30% humidity
• Hot air + 0% humidity
• Low temperature cooking
• Sous-vide cooking
• Grill level 1 + residual humidity
• Grill level 2 + residual humidity
• Grill + fan assisted
• Proofing
• Defrosting
• Regeneration

Operation:

• Automatic door opening
• TFT display touch with knobs for easy and intuitive use
• Clear text display
• Option to save personalized recipes
• Possibility to customize automatic programs
• Information button
• Side opening up to 180 degrees

Features:

• Full-surface grill behind glass ceramic up to 2000 W
• Steam condensation function
• Added steam
• 3-point temperature probe with automatic switch-off and cooking time indication
• Automatic programs
• Display with temperature indicator
• Timer functions:
• cooking time
• end of cooking time
• short timer
• long timer
• minute minder
• Automatic calibration of the cooking temperature boiling
• Water filter saturation indicator (if the GF 111 100 descaling filter is installed)
• 2 side LED lights
• Stainless steel cooking compartment
• 3 cooking levels
• Integrated digital services (Home Connect) with the home network via LAN cable (recommended) or via WiFi
• The operation of the Home Connect mode depends on the availability of the Home Connect service in each country

Safety:

• Child lock
• Safety thermocouple
• Cooling fan

Cleaning:

• Fully automatic cleaning program
• Descaling program for steam generator
• Drying program
• Automatic drying of the cavity at the end of the cooking process
• Filter removable
• Demo for cleaning program

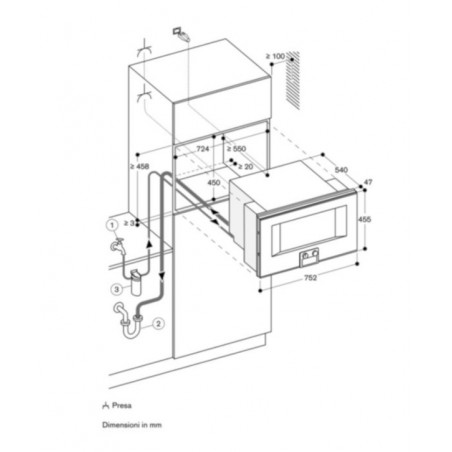

Installation precautions:

• Non-reversible hinges
• Do not install other appliances above the oven
• The water drain hose must not exceed the lower edge of the appliance at any point. It must be positioned at least 100 mm lower than the appliance drain pipe
• Extensible water inlet pipe
• The drain pipe must not be longer than 5 m
• The connection for the water inlet pipe must always be accessible and never positioned behind the appliance
• The appliance protrudes 47 mm from the front of the cabinet niche
• To install an oven in a corner cabinet, consider that the door must open at a minimum of 90 degrees
• The electrical socket must be located outside the cabinet niche

Connection values:

• Energy efficiency class A
• Total absorption 3.1 kW
• Cold water connection only
• 3 m inlet pipe with 26.4 mm extendable connection
• Drain pipe (diameter 24 mm). 3 m
• Connection cable length 1.8 m with Schuko plug
• Provide a LAN cable
• Check the manual to turn off the WiFi module
