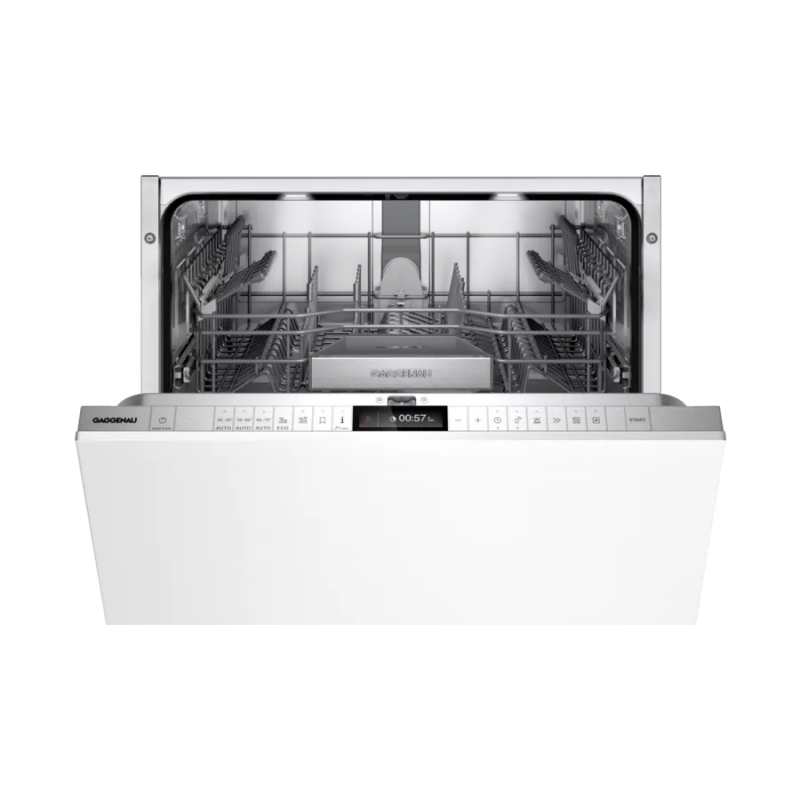

Gaggenau 60 cm fully integrated dishwasher DF 271 101

Cod. DF 271 101

Cod. EAN 4242006296667

Operation:

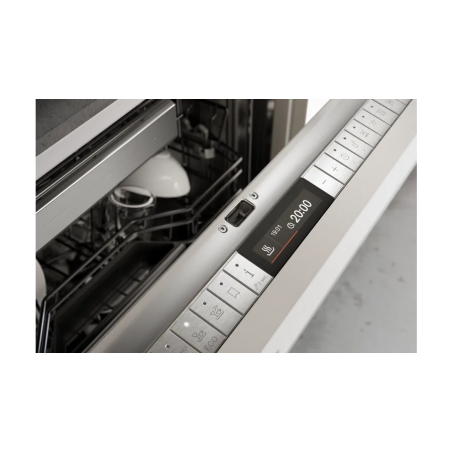

• TFT display with indication of remaining time / end of wash, lack of salt / rinse aid
• Sensor controls
• Flexible reduction of cycle time, even during an active cycle
• Personalization function for storing individual program combinations
• Temporary reduction noise level (only available with the Home Connect function activated)
• Information button
• Preselection of the start time of 24 hours
• Visual and acoustic signal of end of program
• Time projection: projection on the ground of the time you remain at the end of the wash

Technical features:

• Wide internal lighting
• Glass protection with Zeolite
• AquaSensor
• Load sensor
• Auto 3in1 system: recognition of use of combined detergents
• Electronic regeneration of resins
• Heat exchanger
• Electronic temperature control
• Three-filter system, self-cleaning
• Soft lock
• AquaStop: flood protection with conventional lifetime warranty provided by the manufacturer in case of water damage
• Home Connect: Digital services integrated with the home network via WiFi
• The functioning of the mode Home Connect depends on the availability of the Home Connect service in each country

Programs:

• 6 programs:
  • Auto 35 - 45 degrees
  • Auto 45 - 65 degrees
  • Auto 65 - 75 degrees
  • Eco 50 degrees
  • Quick wash 45 degrees (29 min)
  • Personalization function (default setting: Pre-wash)
• 3 options:
  • Intensive
  • Power
  • Half load
• Dishwasher care

Features:

• Basket system fl exible with smooth sliding telescopic guides on all levels

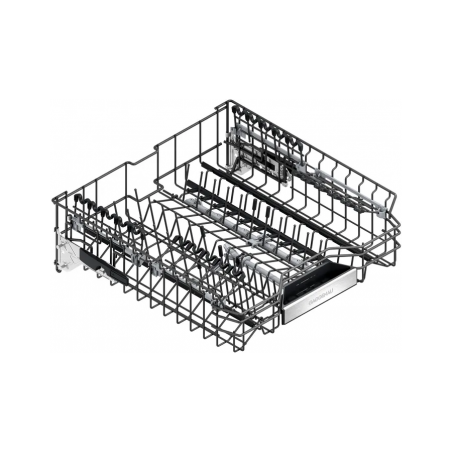

• Upper basket: completely removable
  • Extra washing area through the activation of special nozzles for the release of further jets with water spray
  • Rackmatic with 3 levels, adjustable in height up to 5 cm
  • 6 collapsible grids
  • 4 collapsible straps for optimal protection of glasses

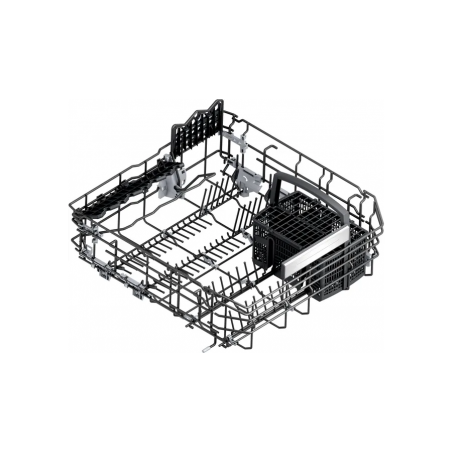

• Lower basket:
  • 8 collapsible grids
  • 2 collapsible straps for optimal protection of glasses
  • Support divisible for glasses
• Cutlery basket
• Maximum plate size (upper / lower basket) 29/28, 26.5 / 30.5 or 24/34 cm respectively
• 12 place settings
• Maximum load capacity 23 glasses

Assembly precautions:

• Height-adjustable feet

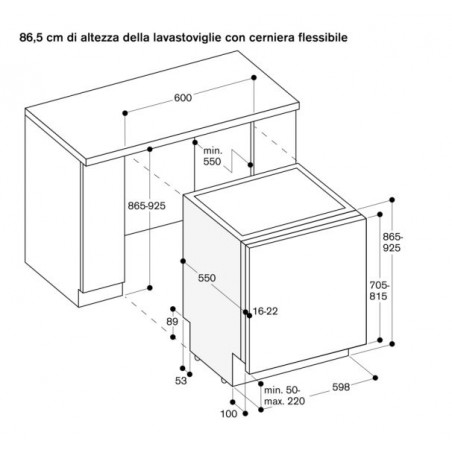

• Front plinth recess 101 mm (see technical drawing)
• For the floor display of the remaining time there must be a minimum projection of the plinth (40 mm + thickness of the cabinet front)
• The maximum height of the plinth must be reduced by 30 mm to optimize the time display remaining at the end of washing
• Rear adjustable feet from the front
• Door panel weight allowed up to 10 kg
• The dimensions of the door depend on the height of the furniture plinth of the kitchen
• Installation is also possible with furniture handles: opening via push-to-open system remains functional

connection:

• Total absorption 2000-2400 W
• Electric connection cable
• Water connection with 3/4 "fitting
• Connection to hot or cold water pipe possible
• Check the manual to turn off the WiFi module
