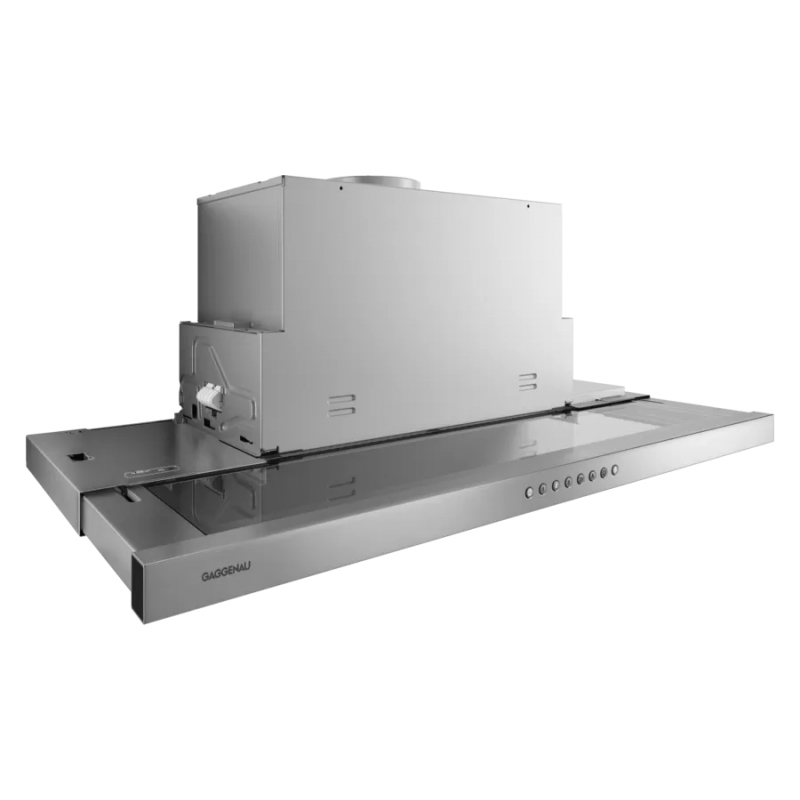

Gaggenau Concealed hood AF 210 192 90 cm stainless steel finish

Cod. AF 210 192

Cod. EAN 4242006294588

Performance:

• Performance and noise: 3 power levels + intensive
• Max. suction (according to DIN EN 61591):
  • Extraction: 517/965 m3 / h
  • Recirculation: 506/876 m3 / h
• Sound power (according to EN 60704-3):
  • Extraction: 57/71 dB (A) re 1 pW
  • Recirculation: 62/69 dB (A ) re 1 pW
• Odor reduction in recirculation mode 91%

Features:

• Front controls
• 3 electronically controlled power levels and intensive operating mode
• Automatic sensor operation option
• Anti filter saturation indicator -grease
• Steel grease filter, dishwasher safe
• Adjustable white LED light (3500 k)
• Lighting 355 lx
• Lighting separately bootable
• BLDC brushless electromagnetic motor operation technology for top efficiency
• Integrated isolation for low noise operation
• Fan activates when the sc hermo suction is extracted
• Patented technology for the extension of the suction panel
• Extension of the suction screen up to 198 mm
• Optimized internal air flow for optimal air circulation and cleaning
• Easy installation
• The packaging includes a non-return valve

Consumption values :

• Energy efficiency class A
• Energy consumption 41.4 kWh / year
• Ventilation efficiency class: A
• Lighting efficiency class: A
• Filter efficiency class: B
• Min. 42 db / max. 57 db with normal suction level

Assembly precautions:

• Recirculation module with activated carbon filter that can be installed in the upper part of the wall unit. The filter is replaceable by pulling it out from the front
• The door of the wall unit must be opened completely when the filter is changed
• It can be installed in a wall unit without base

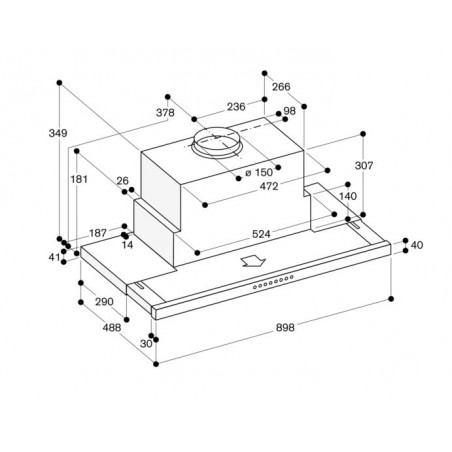

• The internal depth of the wall unit and the space for the telescopic lowering system measure 335 mm
• The height of the cavity of the upper part of the wall unit niche added to the lowered frame measures 600 mm
• Distance min. from the gas hobs below: 65 cm; if the absorption of the hob is greater than 12 kW min. 70 cm
• Distance min. from the electric hobs below: 43 cm
• Possibility of installing open window switch

Connection values:

• Total absorption 266 W
• Connection cable 1.8 m with plug
