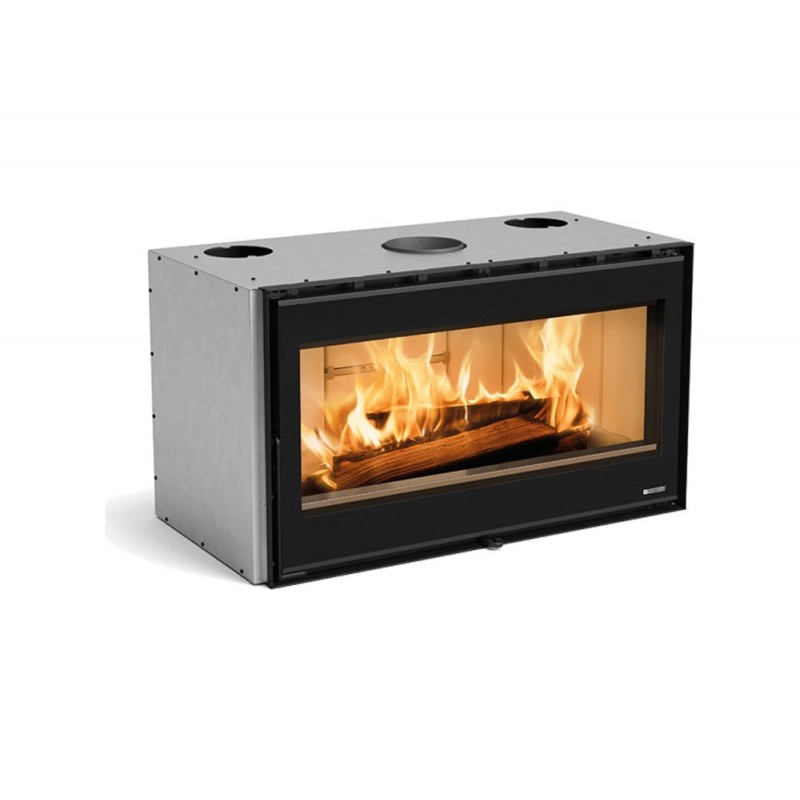

La Nordica Wood-burning insert with panoramic view of the fire INSERTO 100 WIDE.16 3001340

La Nordica Wood-burning insert with panoramic view of the fire INSERTO 100 WIDE.16 3001340

Model INSERTO 100 WIDE.16

Cod. 3001340

Cod. EAN 8022724004791

TECHNICAL DATA
• Nominal power 8.1 kW-N
• Efficiency 80 %
• Hourly consumption 2.3 kg/h

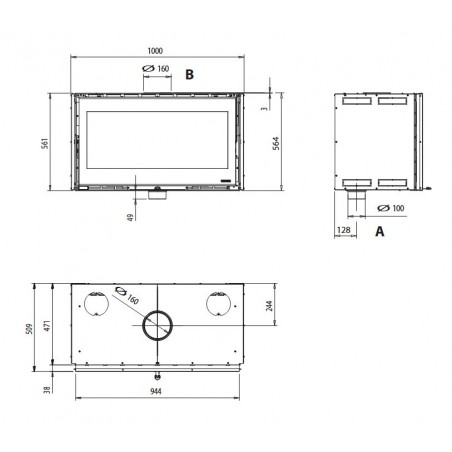

• Dimensions (LxHxD) 1000x561x509 mm
• Net weight 178 kg
• Smoke outlet diameter (Ø) 160 mm S
• Fire mouth size (LxH) 826x278 mm
• Firebox size (LxHxD) 856x327x350 mm
• Wood max length 30 cm

FEATURES
• Nordiker firebox
• Cast iron door and grille
• Removable ash drawer
• Without ventilation motors
• Primary air and adjustable secondary combustion for better combustion management
• Post-combustion system for low emissions
• Ceramic glass
• Possibility of taking air from the outside and introducing it directly into the stove registers
• Lowered firebox for a better view of the flame
• Optional ventilation with Wind Air Kit
• Reversible door

OPTIONS
• Nordiker hearth
• Post-combustion
• Glass cleaning system
• Direct external air intake (BBC)

OPTIONAL
• Wide insert frame kit cod. 6016181
• Insert pedestal kit cod. 6016792
• "Wind Air" kit cod. 6016030
• Shade diffuser cod. 6016005
• Wave diffuser cod. 6016025
• Additional ventilation ring Ø 150 mm code 1130310
• Stainless steel frame code 6016180

The ideal solution for your fireplace
Warmth, atmosphere, elegance: the light of the fire lit inside a fireplace always creates true magic. But every home, every room, has its own needs, and La Nordica-Extraflame offers a solution for each of them to heat your home efficiently and environmentally friendly.
The inserts, for example, are designed to replace an old open fireplace, increasing performance in terms of both heating power and emissions. But they are also the ideal solution for a new installation

NB:For the correct functioning of the appliance, two ventilation grilles of adequate size must be prepared during assembly, a lower inlet and an upper outlet, to allow the diffusion of heat into the room and the correct cooling of the product (see manual attached to the product)
