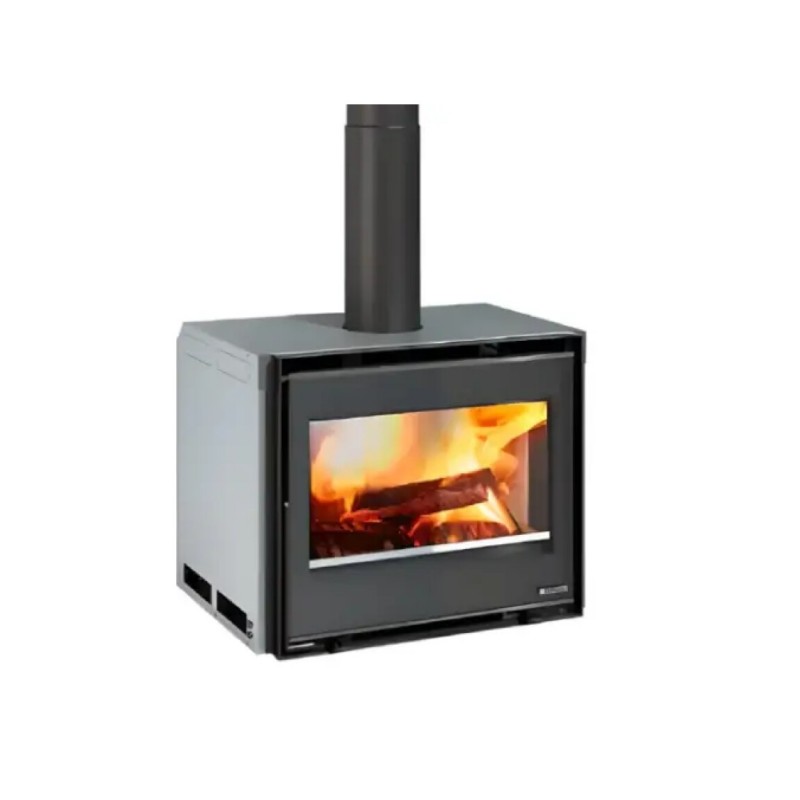

La Nordica ventilated wood-burning insert INSERTO 70 EOS 3007140

La Nordica Ventilated wood insert INSERTO 70 EOS 3007140

Model INSERTO 70 EOS

Cod. 3007140

Cod. EAN 8022724006832

TECHNICAL DATA
• Rated power 8.5 kW-N
• Efficiency 85.0 %
• Hourly consumption 2.3 kg/h

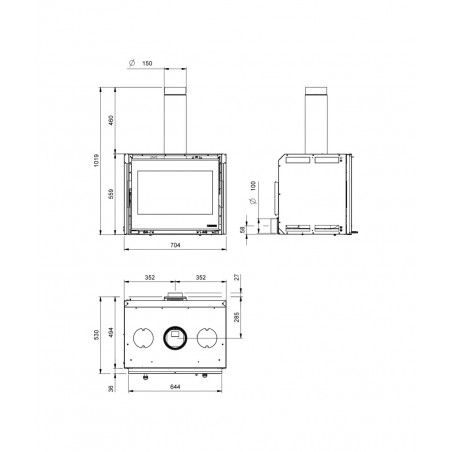

• Dimensions (WxHxD) 705x1019x530 mm
• Net weight 142 kg
• Smoke outlet diameter (Ø) 150 mm S
• Fire mouth size (WxH) 525x255 mm
• Firebox size (WxHxD) 540x290x265 mm
• Wood max length 30 cm
• Electrical absorption 30 W

FEATURES
• Cast iron firebox-Nordiker
• Cast iron door
• Steel structure painted
• Removable ash drawer
• Front ventilation outlet
• 1 standard tangential fan on the back
• Adjustable primary and secondary air for better combustion management
• Post-combustion system for low emissions
• Ceramic glass
• Possibility of channelling the product with Kit (optional)
• Ceramic catalytic filter
• Manual by-pass valve (for lighting wood loading)
• Retractable opening handle

OPTIONS
• Nordiker hearth
• Post combustion
• Cast iron doors
• Glass cleaning system
• Direct external air intake (BBC)

STANDARD EQUIPMENT
• Fan speed regulator
• Additional ventilation ring Ø 100 mm air connection (1 piece)
• EPS system (Model with recovery system heat)

OPTIONAL
• Additional ventilation ring Ø 150 mm code 1130310
• "Wind Air" kit code 6016030
• Insert pedestal kit code 6016792
• Wide insert frame kit code 6016961
• Stainless steel frame code 6016960

The ideal solution for your fireplace
Warmth, atmosphere, elegance: the light of the fire lit inside a fireplace always creates real magic. But every home, every room, has its own needs and La Nordica-Extraflame offers a solution for each of them to heat your home efficiently and ecologically.
The inserts, for example, are designed to replace an old open fireplace, increasing performance both in terms of heating power and emissions. But they are also the ideal solution for a new installation

NB:For the correct functioning of the appliance, two ventilation grilles of adequate size must be prepared during assembly, a lower inlet and an upper outlet, to allow the diffusion of heat into the room and the correct cooling of the product (see manual attached to the product)
