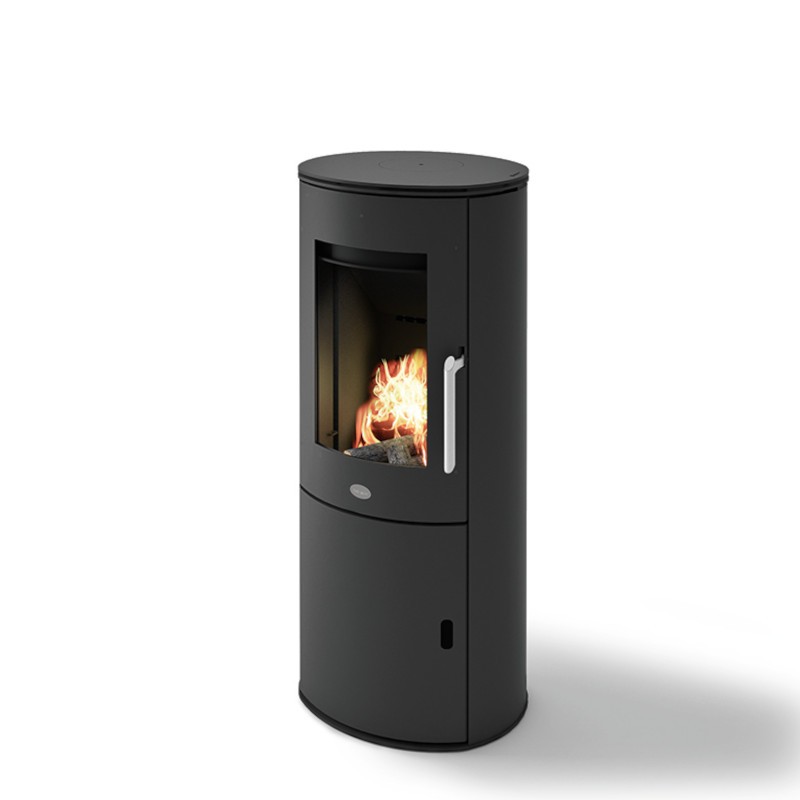

Eva Calòr hermetic wood stove PATTY 9016045900 black finish

Patty model

Cod. 9016045900

FEATURES

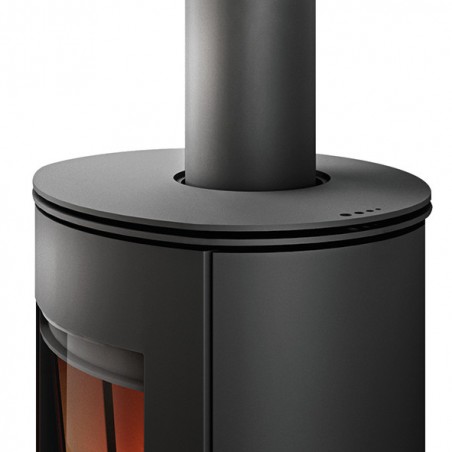

• 6 mm thick top
• Vermiculite combustion chamber
• Airtight stove
• Triple adjustable combustion
• Combustion air adjustment
• Removable ash drawer for ash recovery in a separate compartment
• Upper - rear smoke outlet

TECHNICAL DATA
• Power burned: 9.5 kW
• Power output in heating: 8.0 kW
• Energy efficiency class: A+
• Efficiency: 86.0%
• Value of CO with 13% of O2 (%): 0.052%
• Hourly wood consumption: 2.4 kg/h
• Wood length: 250 mm
• Heated room size: 140 - 200 m3
• Minimum distances from flammable walls: side: 40 cm - back: 20 cm - front: 150 cm

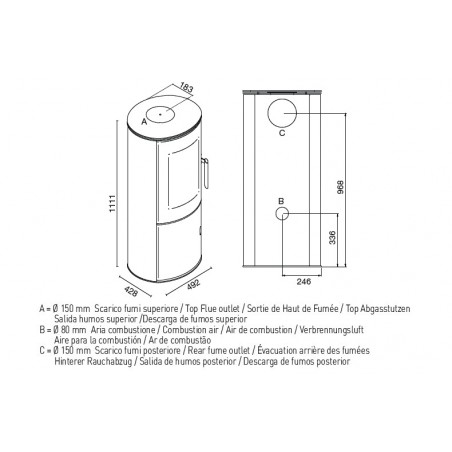

• Dimensions: L 49.2 x D 42.8 x H 111.1 cm
• Weight: 133 kg

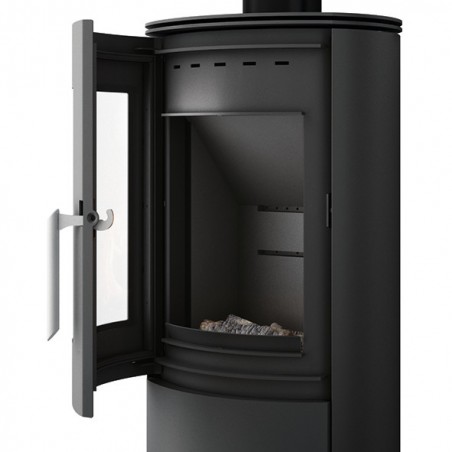

• Chamber: Vermiculite
• Triple combustion: Adjustable
• Combustion chamber weight: 13 kg
• Combustion chamber dimensions: L 30 x D 28 x H 49 cm
• Chimney draft: 10 Pa
• Smoke outlet: 150 mm
• Complies with standards: EN13240 - BImSchV II - 15a B-VG - LRV/VKF
• Airtight stove
• Removable ash drawer for ash recovery in a separate compartment
• Fume exhaust: Top - Rear

OPTIONAL
• Protection platform

The tradition of heat
The heat of a wood stove is special because it is a natural and ecological heat and at the same time recalls that sense of familiarity and hospitality typical of family hearths. our tradition. The Eva Calòr wood stoves were created with tradition in mind but without neglecting innovation, especially with regards to their performance and attention to the environment, reducing consumption and emissions of harmful gases

The advantages of wood stoves
Many factors contribute to making wood an increasingly advantageous choice as a fuel. Some are linked to the nature of the raw material itself, others to the techniques adopted to increase energy yield. Wood is a 100% renewable energy source, its combustion does not increase the carbon dioxide in the atmosphere, it is easy to find and does not require processing to be used, it has a low and stable cost over time and, finally, gives a natural flame. Eva Calòr has created stoves which, thanks to specific technical characteristics, allow the qualities of the raw material to be exploited to the maximum. For example, the combustion chamber is hermetic, thus not taking oxygen from the environment where it is located, while Triple Combustion significantly reduces consumption. Added to this are other typical advantages of wood stoves: they maintain a constant level of humidity in the rooms, they do not require electricity for operation, they require very little maintenance

Triple combustion
The combustion process studied by Eva Calòr allows you to make the most of the caloric power of the wood, reducing harmful emissions to the maximum. Thanks to obligatory paths, the heated oxygen is introduced twice into the combustion chamber, thus managing to re-trigger twice the process of exploiting the fumes laden with carbon monoxide which are produced by the combustion of wood, thus heat production is maximized while reducing emissions and consumption to a minimum
