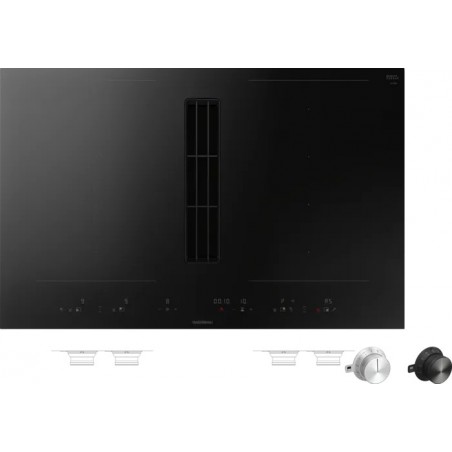

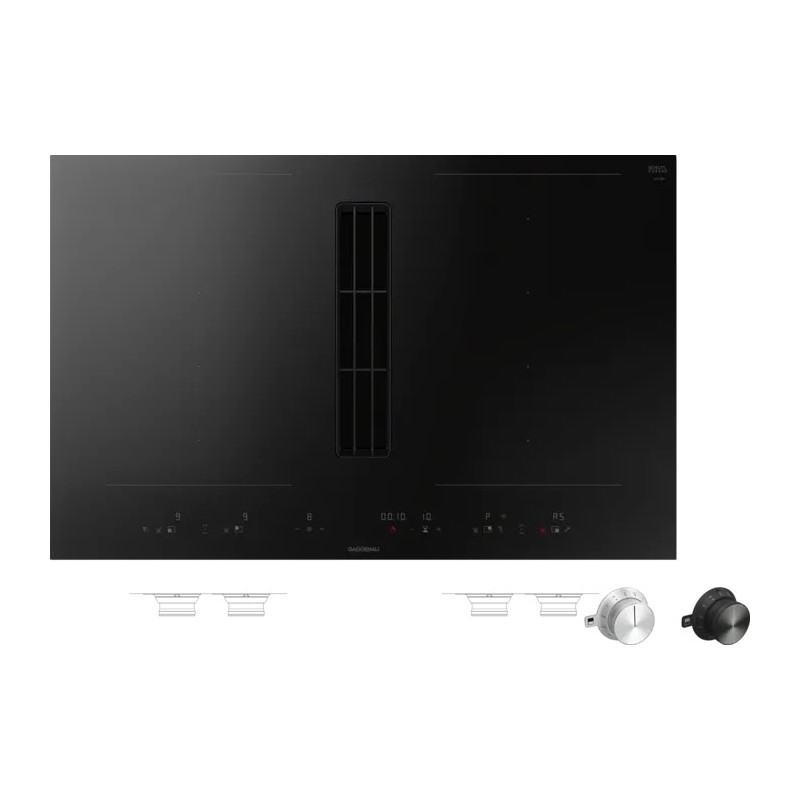

Gaggenau CV482105 80cm black glass ceramic induction hob with integrated hood

Cod. CV 482 105

Cod. EAN 4242006306335

• Free positioning of pots and pans inside the rectangular cooking zones
• Extremely efficient extraction system integrated into the hob
• Automatic extraction function
• Large metal grease filter, easy to remove, dishwasher safe
• Low noise and high energy saving motor
• Air expulsion or recirculation system
• Integrated activated carbon filter easily removable from above for air recirculation
• Frameless for flush-fitting into the top

Cooking zones
• 2 Flexi zones measuring 20x24 cm (2200 W, with 3700 W booster); if combined 40x24 cm (3300 W, with 3700 W booster)
• 2 Flexi zones of 20x24 cm (2200 W, with 3700 W booster); if combined 40x24 cm (3300 W, with booster 3700 W)

Performance
• Performance and noise, 3 power levels + intensive: max suction power according to EN 61591
• Sound power according to EN 60704-3
• Extraction:
530 /636m³/h
70 / 74dB (A) re 1 pW
59 / 62 dB (A) re 20 μPa
• Recirculation:
487 / 611m³/h
67 / 72dB (A) re 1 pW
55 / 61 dB (A) re 20 μPa

Operation

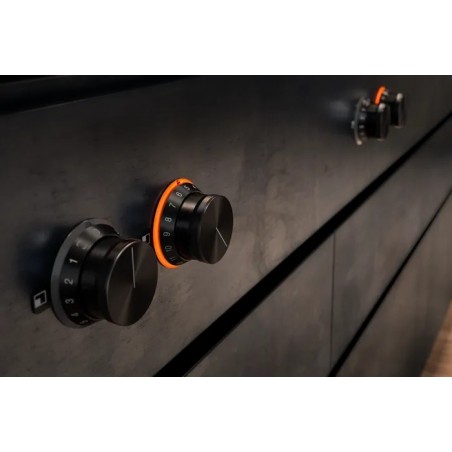

• Knobs with illuminated ring and screen printing for cooking zones and power levels
• 12-level electronic power control
• User-friendly control with 2-colour display (white/orange)
• 3-level control + 1 intensive level of the ventilation system

Features
• Flex function for rectangular zones
• Frying sensor
• Booster function
• Sensor-controlled ventilation system operation
• Automatic activation of the ventilation system when a cooking zone is used
• Interval extraction, 6 minutes
• Sensor-controlled or manual post-cooking function
• Filter saturation indicator for grease filter and activated carbon filter
• Removable and dishwasher-safe filter
• High-grade black zinc extraction cavity cover, dishwasher-safe
• BLDC brushless electromagnetic motor operating technology for top efficiency
• Optimised interior for optimum air circulation highly efficient air
• Stopwatch
• Minute minder
• Memory function
• Options menu
• Power Management function: electronic regulation and limitation of power consumption depending on requirements

Home Connect
• Remote control and monitoring of the extraction unit
• Remote control of the cooking zones
• Remote diagnosis
• Integrated digital services (Home Connect) with the wireless home network via WiFi
• The operation of the Home Connect mode depends on the availability of the Home Connect service in each country. For more information visit www.home-connect.com

Consumption values
• Energy efficiency class A (On a scale of energy efficiency classes from A+++ to D)
• Energy consumption 56.9 kWh/ year
• Ventilation efficiency class: A
• Lighting efficiency class: -
• Filter efficiency class: B
• Min. 61 db / max. 70 db at normal extraction level

Safety
• Operation light
• Pan recognition system
• 2-stage residual heat indicator
• Child safety lock
• Automatic safety switch-off
• Dishwasher-safe top guard
• 0.9 litre liquid collection container, dishwasher-safe

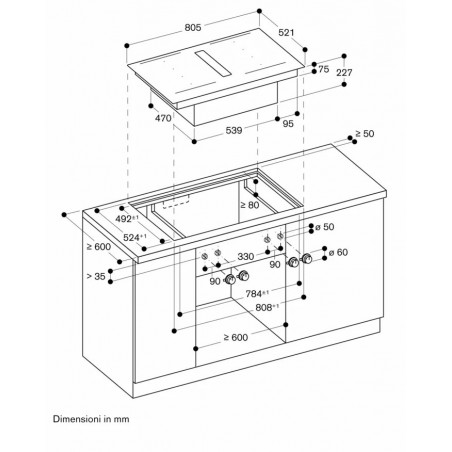

Installation precautions
• Minimum width of base of cabinet: 60 cm
• Immersion depth into worktop: min. 60 cm with non-ducted recirculation, min. 65 cm with ducted recirculation/extraction
• Depth into cabinet 227 mm
• The non-ducted recirculation set CA 082 010 requires a vertical opening of min. 25 mm behind the rear panel of the cabinet. 50 mm is recommended for optimal performance
• The air outlet on the back of the appliance is directly accessible with a flat duct (DN 150)
• In air extraction mode, a one-way deflector with a maximum opening pressure of 65 Pa must be installed
• For optimal performance in air recirculation, an outflow surface of at least 400 cm² is recommended
• For use with ferromagnetic pans only
• The appliance can be installed from below
Weight of the appliance approx. 27 kg
• The appliance must be easily accessible from below
• Ensure greater ventilation of the room if the hood is installed in a room with a working fireplace
• Installation is possible in stone, synthetic or solid wood worktops. The thermal resistance and watertightness of the cut edges must be respected. For other materials, please consult the worktop manufacturer
• The load-bearing capacity and stability, especially in the case of thin worktops, must be supported by suitable substructures. Take into account the weight of the appliance and additional loads
• The groove must be continuous and uniform, so as to ensure correct positioning of the appliance on the gasket. Do not use a discontinuous covering
• The size of the gap between the hob and the top varies depending on the precision of the cut-out in the worktop

Connection values
• Total power consumption 7.4 kW
• Connection cable length 1.5 m without plug
• Consumption in standby/display OFF 0.5 W
• Consumption in standby/network 2 W
• Check the manual to switch off the WiFi module
• Special accessories (can be ordered as spare parts): ET-Nr. 17006018 Frying pan suitable for Frying sensor, Ø 20 cm ET-Nr. 17006184 Frying pan suitable for Frying sensor, Ø 24 cm
• The equivalent length of the duct to ensure good performance is Lmax 28 m
• Respect the distances from under the worktop to the anti-overflow container: min. 300 mm to remove and empty the container

NB: The knobs are optional accessories
