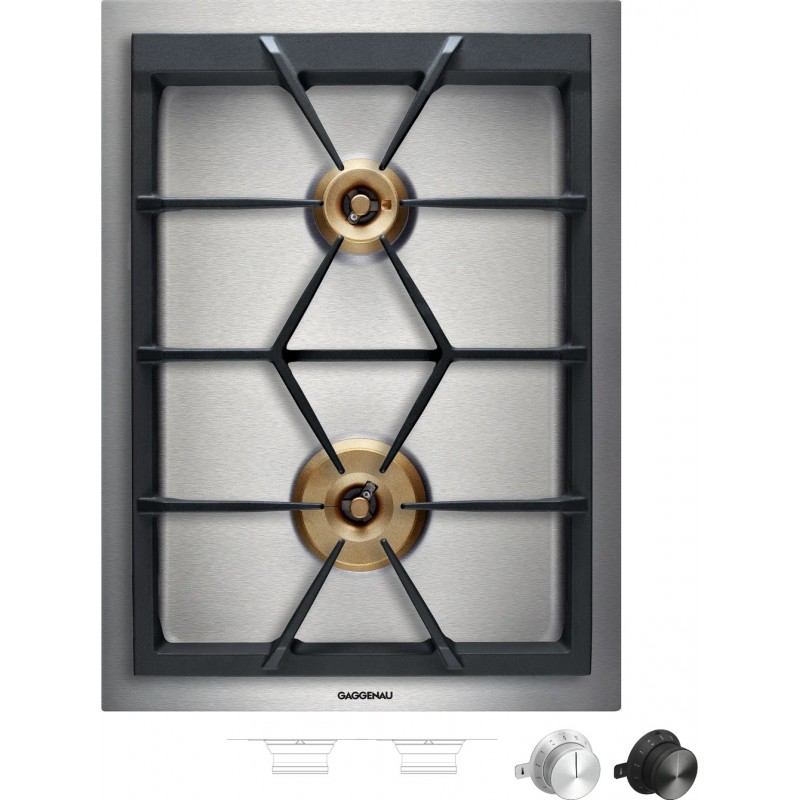

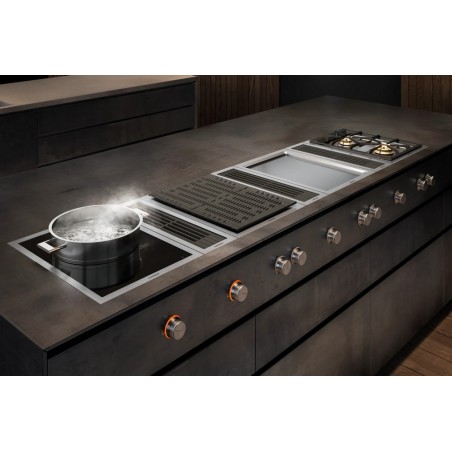

Gaggenau VG 425 215 gas hob 38 cm steel finish

Cod. VG 425 215

• Fully electronic flame regulation, on 12 levels
• 4 kW multiple crown burner
• Precise manufacturing of 3 mm thick steel
• Possible free-standing or flush-to-top installation
• Ultra-precise flame adjustment
• Electronic flame control with automatic re-ignition in case of shutdown
• Slow cooking function
• Solid grills with flat surface

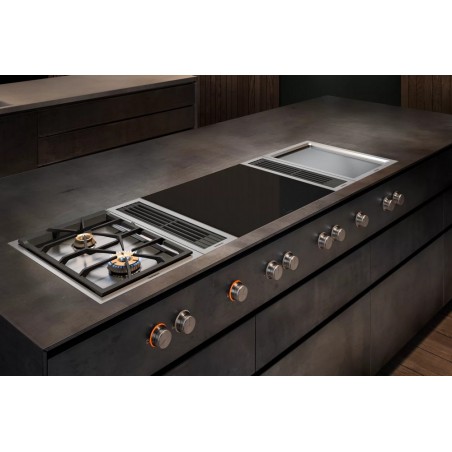

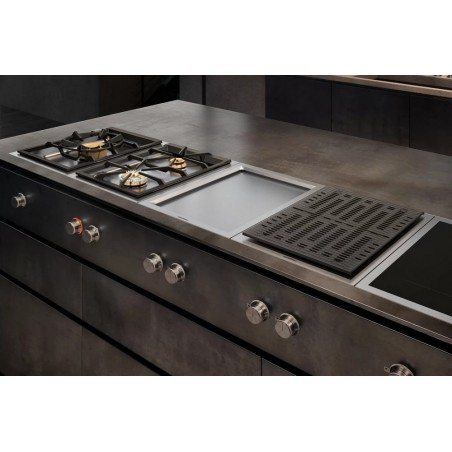

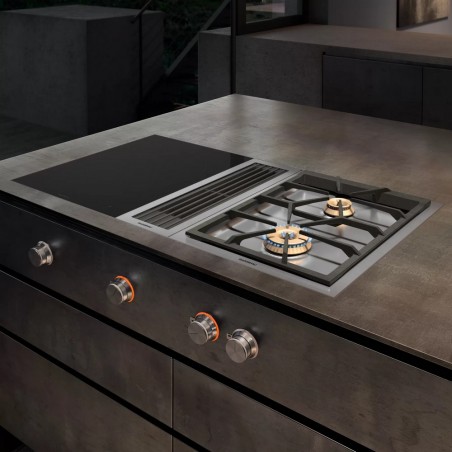

• Perfect combination with all appliances of the Vario 400 series

Cooking zones
• 1 ultra-rapid burner with 2 flame points ( 165 W - 4000 W), suitable for pots with max. Ø. 28 cm
• 1 normal burner with 2 flame points (165 W - 2000 W), suitable for pots with a max. Ø 28 cm

Operation
• Knobs with luminous ring and silk-screen printing for cooking zones and power levels
• Switching on with a single gesture
• Fully electronic control with 12 levels for exact temperature adjustment and slow cooking function
/>• All the comfort of automatic ignition
• Immediate ignition of the flame with a single gesture

Features
• Simmer function
• Cast iron grate
• Brass burners

Safety
• Electronic flame control with automatic re-ignition in case of accidental shutdown
• Residual heat indication
• Automatic safety switch-off

Mounting precautions

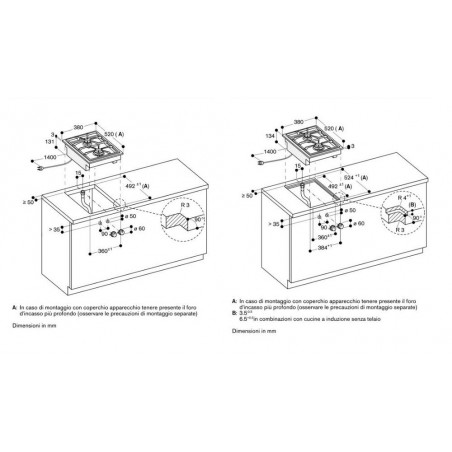

• Depending on the type of installation (free-standing or flush with the top, with or without cover), the position of the built-in niche and the knob may vary
• Always respect the drawings relating to the installation of the knobs. If the panel is thicker than 23 mm, provide a space on the rear side
• If multiple devices from the Vario 400 series are combined, it is necessary to use the VA 420 connecting element between the various devices. Depending on the type of installation, the corresponding connecting element must be provided
• The load-bearing capacity and stability, particularly in the case of thin worktops, must be supported by suitable substructures. Take into account the weight of the appliance and additional loads
• Additional instructions for flush installation: Installation is possible in stone, synthetic or solid wood surfaces. The thermal resistance and watertightness of the edges of the cut must be respected. Regarding other materials, please consult the manufacturer of the worktop
• The groove must be continuous and uniform, so as to guarantee the correct positioning of the appliance on the gasket. Do not use a discontinuous covering
• The width of the joint may vary due to dimensional tolerances of the combinations and the cutout on the worktop
• If you install multiple appliances in single niches, provide a space of at least 50 mm between the niches
• Special nozzles that can be ordered separately
• The electrical connection is essential for the operation of the appliance
• Air supply from above
• Assembly without intermediate shelf
• Provide a non-flammable and heat-resistant material for the rear wall and the slats
• Leave a minimum distance. 150 mm between the hob and heat-sensitive surfaces or apply thermal insulation

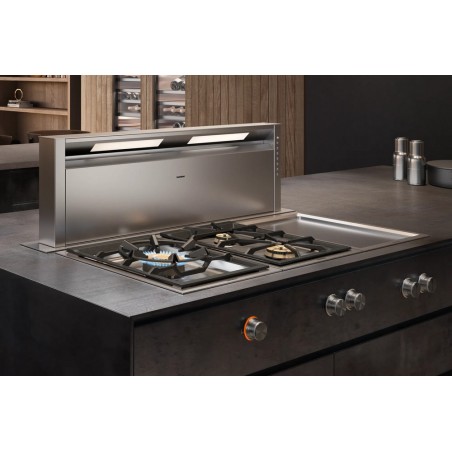

• If positioned near the VL 414 hob extraction centre, the use of the AA 414 deflector is recommended to guarantee maximum performance of the hob
• With a total absorption greater than 11 kW it is necessary to respect local regulations regarding ventilation, room dimensions and combination of extraction or recirculation hoods
• The minimum distance between the hob and the wall unit above it is 70 cm
• The minimum distance between the hob and the hood is indicated in the installation instructions of the extraction unit
• The appliance can be installed from above
• Weight of the appliance approx. 13 kg

Connection values
• Total gas absorption 6.0 kW
• Total electrical absorption 15.0 W
• Cable connection length 1.4 m with Schuko plug

N.B.: The knobs are optional accessories
