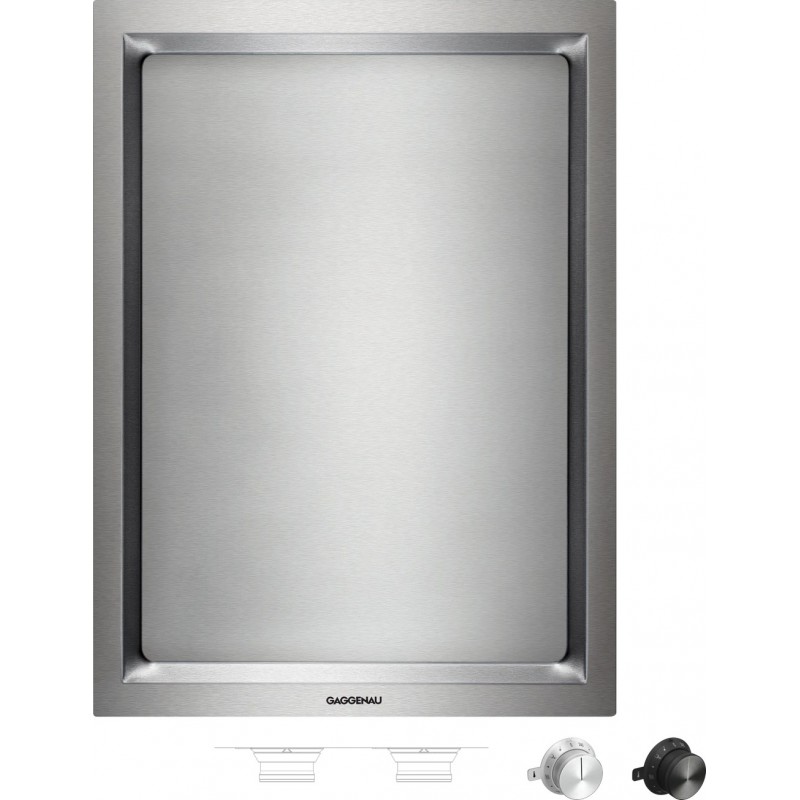

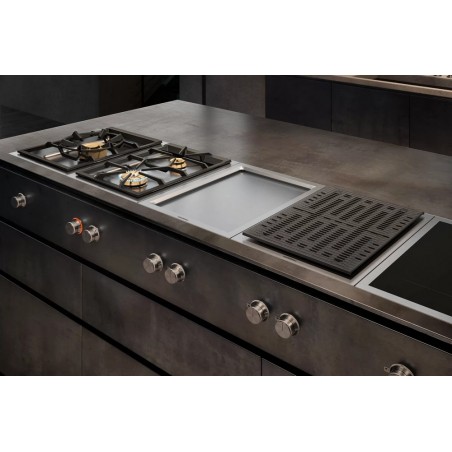

Gaggenau Teppan Yaki plate VP 414 115 38 cm

Cod. VP 414 115

• Plate with chrome surface - for roasting, cooking and keeping warm directly on the plate
• Exact temperature regulation up to 240 °C
• Excellent heat distribution
• Precise manufacturing of steel with a thickness of 3 mm

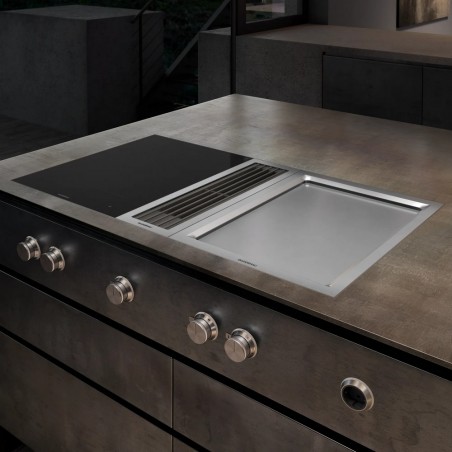

• Possible free-standing or flush-to-top installation

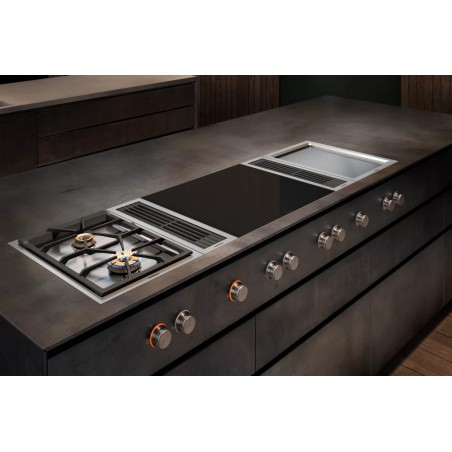

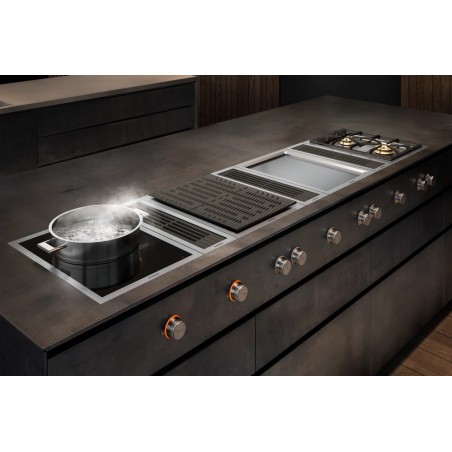

• Perfect combination with all devices in the Vario 400 series

Cooking zones
• Plate dimensions: L 31 x D 44 cm

Operation

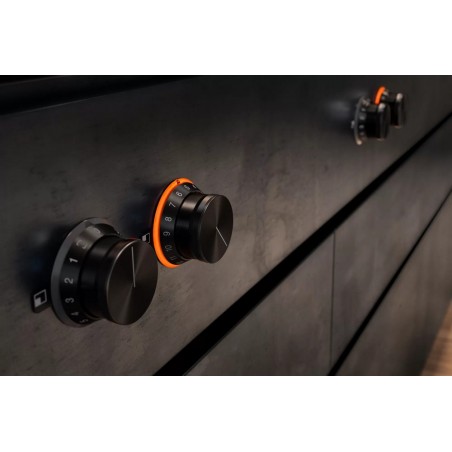

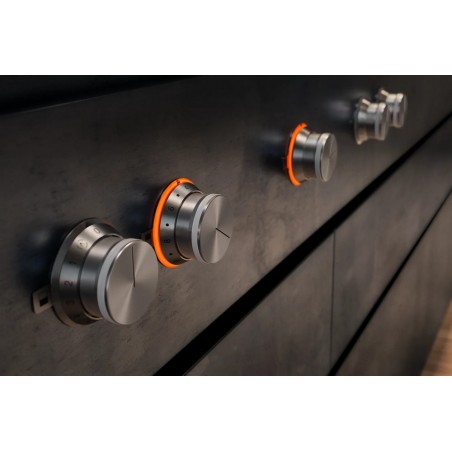

• Knobs with luminous ring and silk-screen printing for the cooking zones and temperature levels
• Electronic temperature regulation from 120 °C to 240 °C

Features
• 2 zones, each with 1500 W, can be used as a single surface or separately
• Keep warm function
• Simplified cleaning
• Simplified cleaning

Safety
• Automatic safety switch-off
• Residual heat indicator

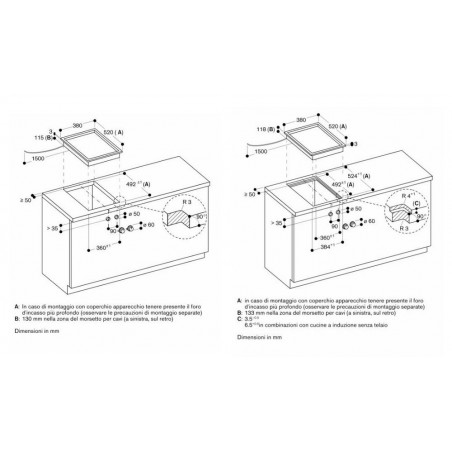

Mounting precautions
• Depending on the type of installation ( free-standing or flush with the top, with or without cover), the position of the built-in niche and the knob may vary
• If multiple appliances from the Vario 400 series are combined, it is necessary to use the VA 420 connecting element between the various devices. Depending on the type of installation, the corresponding connecting element must be provided
• The load-bearing capacity and stability, particularly in the case of thin worktops, must be supported by suitable substructures. Take into account the weight of the appliance and additional loads
• Additional instructions for flush installation: Installation is possible in stone, synthetic or solid wood surfaces. The thermal resistance and watertightness of the edges of the cut must be respected. Regarding other materials, please consult the manufacturer of the worktop
• The groove must be continuous and uniform, so as to guarantee the correct positioning of the appliance on the gasket. Do not use a discontinuous covering
• The width of the joint may vary due to dimensional tolerances of the combinations and the cutout on the worktop
• If you install multiple appliances in single niches, provide a space of at least 50 mm between niches
• Maintain a lateral thickness of at least 40 mm if adjacent to heat-sensitive surfaces or install thermal insulation
• The appliance can be installed from above
• Weight of the appliance approx. 11 kg

Connection values
• Total absorption 3 kW
• Connection cable length 1.5 m without plug

N.B.: The knobs are optional accessories
