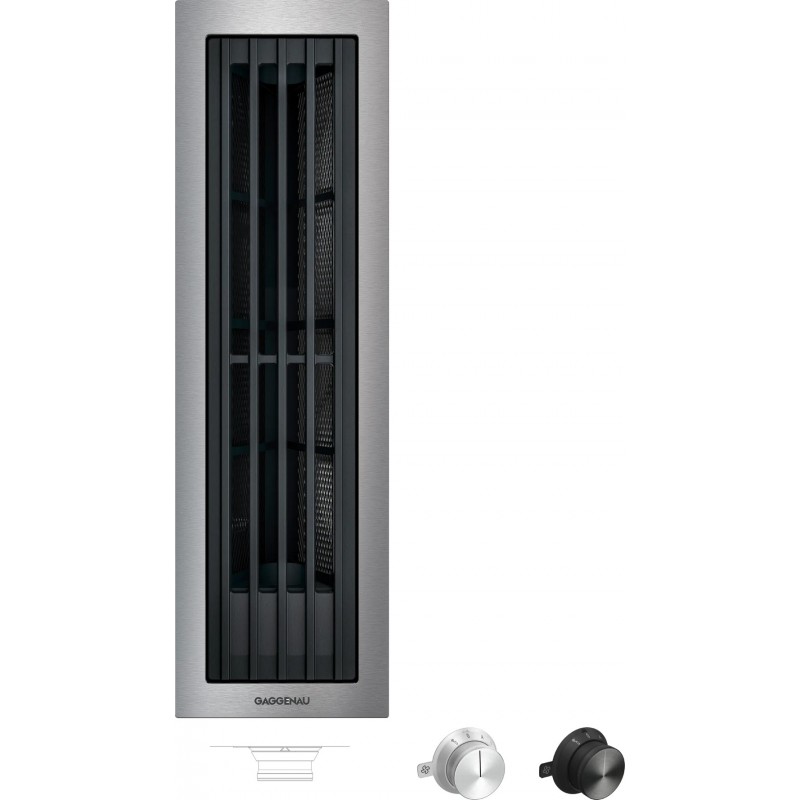

Gaggenau Base hood VL 414 115 in 15 cm stainless steel

Cod. VL 414 115

• High efficiency and low noise suction system, especially when combined with the AR 410 110 remote motor unit
• Suction power automatically regulated via quality control sensor air
• For assembly, consult the installation instructions
• Precise manufacturing of steel with a thickness of 3 mm
• Possible free-standing or flush-mount installation

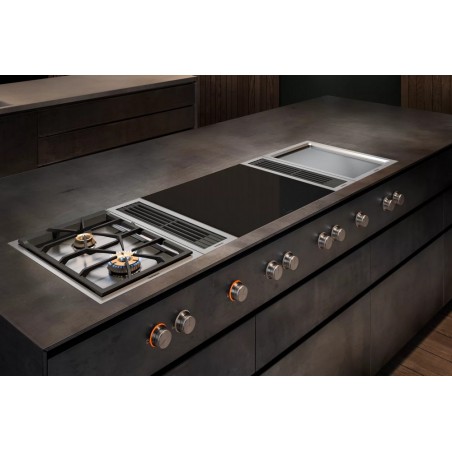

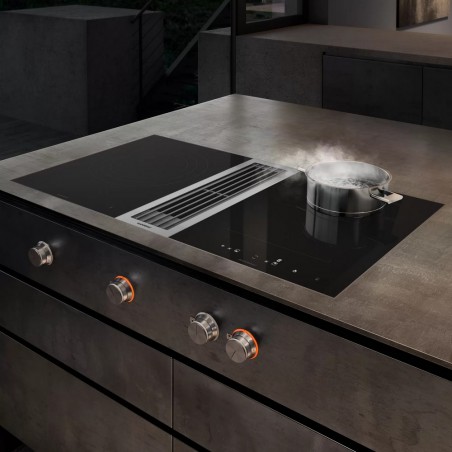

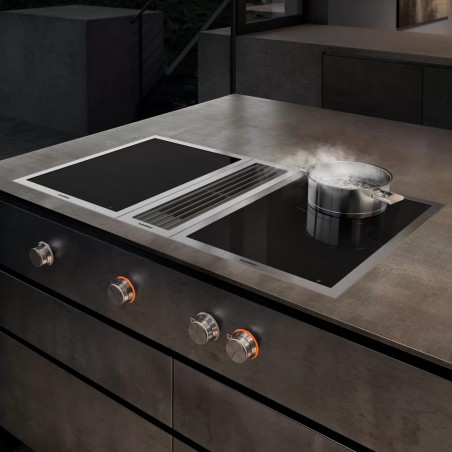

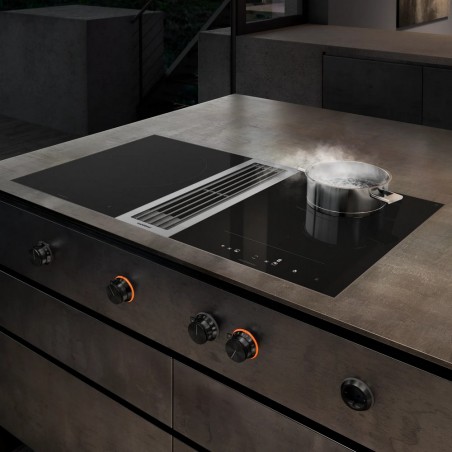

• Perfect combination with all devices of the Vario 400 series

Performance
• Power level dependent on the Gaggenau motor used

Features
• 3 electronically controlled power levels and intensive operation mode
• Automatic operation option thanks to the air quality control sensor
• Post-cooking function controlled via sensors or manually
• Metal filter for collecting grease with high absorption capacity
• Removable and dishwasher safe filter
• Filter saturation indicator for anti-grease filter and activated carbon filter
• Optimized interior for extremely efficient air circulation
• Interval extraction, 6 minutes
• Enamelled intake grille, dishwasher safe
• Exhaust connection included with the appliance
• Drip tank with 250ml capacity

Home Connect
• Equipped with hob-hood control module
• Remote control and monitoring
• Remote diagnosis
• Integrated digital services (Home Connect) with the home network via LAN cable (recommended) or via WiFi
• The operation of the Home Connect mode depends on the availability of the Home Connect service in each nation. For further information visit www.home-connect.com

Consumption values
• Consumption data refer to a configuration with AR403122 engine
• Class of energy efficiency A+ (On a scale of energy efficiency classes from A+++ to D)
• Energy consumption 40.4 kWh/ year
• Ventilation efficiency class: A
• Energy efficiency class of lighting: -
• Filter efficiency class: B
• Sound level min. 57 db / max. 71 db with normal suction level

Mounting precautions
• Each VL must be connected to a remote motor unit
• Between two VLs it is possible install hobs up to 80 cm wide, except CX 482 hobs

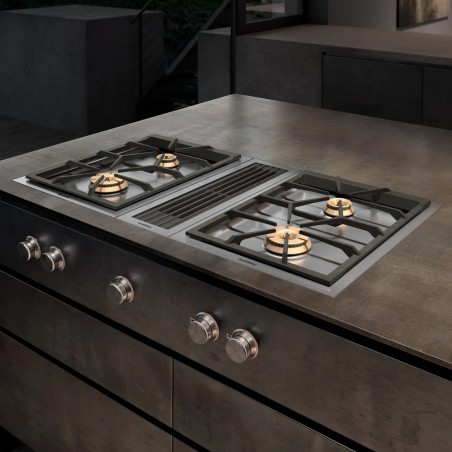

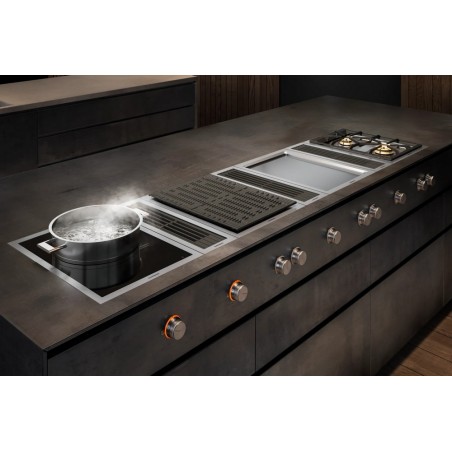

• Vario hobs such as electric grills and gas wok hobs should be positioned between 2 VL
• Recirculation operation is not recommended in combination with Vario electric grills
• For optimal performance in air recirculation, we recommend an outflow surface of at least 440 cm²
• In case of installation near a gas hob, provide the AA deflector accessory 414010
• The appliance is equipped with fixing springs which block the top after insertion from above

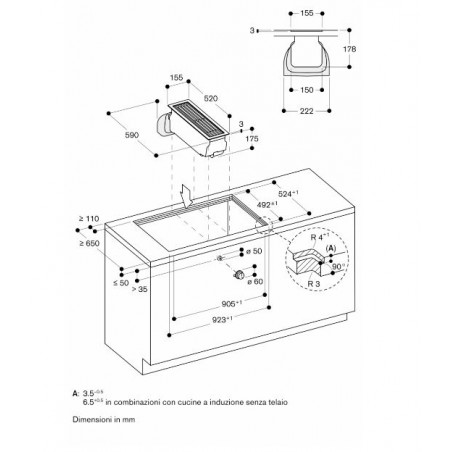

• Depending on the type of installation (free-standing or flush), the configuration of the cutout and the position of the knob may vary
• If multiple devices from the Vario 400 series are combined, it is necessary to use the VA 420 connecting element between the various devices. Depending on the type of installation, the corresponding connecting element must be provided
• The load-bearing capacity and stability, particularly in the case of thin worktops, must be supported by suitable substructures. Take into account the weight of the appliance and additional loads
• Additional instructions for flush installation: Installation is possible in stone, synthetic or solid wood surfaces. The thermal resistance and watertightness of the edges of the cut must be respected. Regarding other materials, please consult the manufacturer of the worktop
• The groove must be continuous and uniform, so as to guarantee the correct positioning of the appliance on the gasket. Do not use a discontinuous covering
• The width of the joint may vary due to dimensional tolerances of the combinations and the cutout on the worktop
• Ensure greater ventilation of the room if the hood is installed in a room where there is a functioning fireplace

Connection values
• Total absorption 10 W
• Connection cable 1.8 m long with Schuko plug
• Provide a LAN cable
• Consumption in standby/display OFF 0.2 W
• Check the manual to turn off the WiFi module
