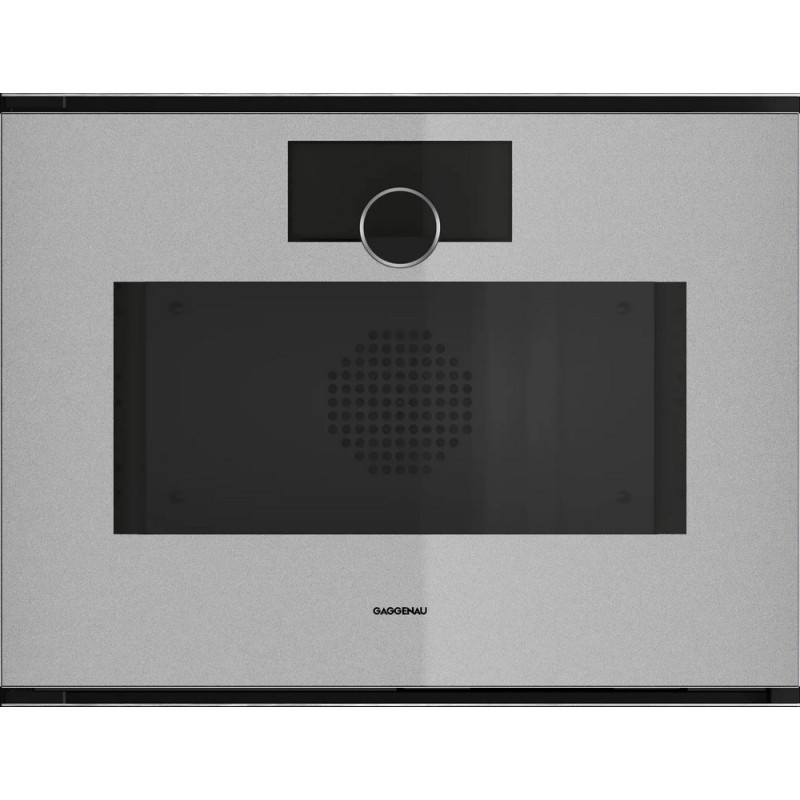

Gaggenau GS271130 60cm built-in left-hinged combi steam oven in Gaggenau Sterling finish

Gaggenau GS271130 60cm built-in left-hinged combi steam oven in Gaggenau Sterling finish

Cod. GS 271 130

Cod. EAN 4242006309367

Included
• 1 stainless steel baking tray, perforated
• 1 stainless steel baking tray, unperforated
• 1 wire rack
• 1 water inlet hose (3m)
• 1 water drain hose (3m)
• 4 cleaning cartridges

Highlights

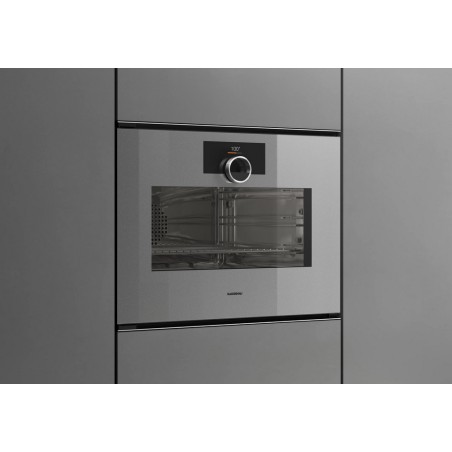

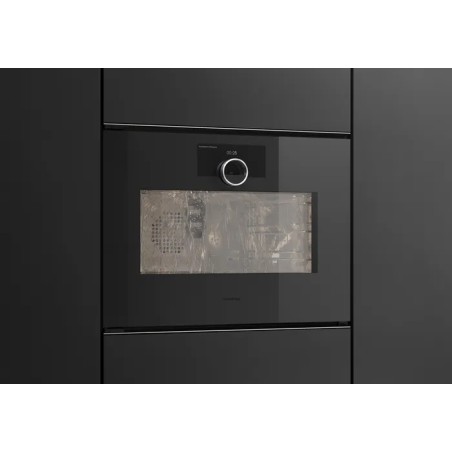

• Flush installation
• Handle-free glass door with electronic door opening

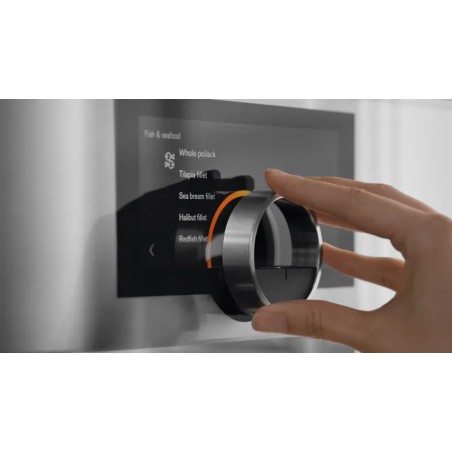

• Full touch display with stainless steel control ring
• User detection with light and display activation
• Direct connection to the water mains with filling and draining
• Steam generation outside the cooking compartment
• Automatic cleaning with perfect results, even with heavy soiling
• Hot air from 30°C to 230°C, combinable with humidity levels 0%, 30%, 60%, 80% or 100%
• Sous-vide cooking with precise temperature regulation
• Full-surface grill behind glass ceramic, combinable with hot air up to 230°C and steam
• Automatic programs and recommended settings
• Net volume 50 litres

Cooking methods / Programs
• Hot air + 100% humidity
• Hot air + 80% humidity
• Hot air + 60% humidity
• Hot air + 30% humidity
• Hot air + 0% humidity
• Grill + fan
• Grill level 1 + humidity
• Grill level 2 + humidity
• Sous-vide cooking
• Low temperature cooking
• Proving
• Keep warm
• Defrosting
• Regeneration
• 200 programmes (automatic programmes and recommended settings)
• Possibility to save up to 30 favourite programmes

Operation

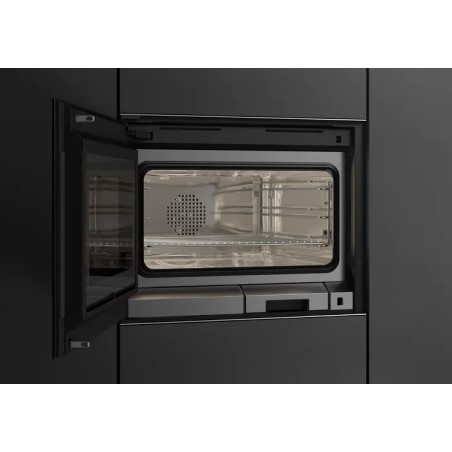

• Soft-closing side-opening door with 110° opening angle
• Electronic door opening

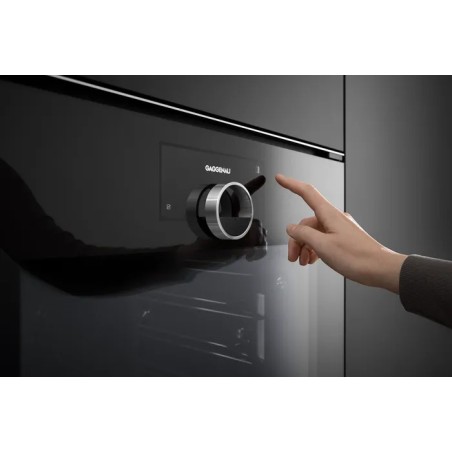

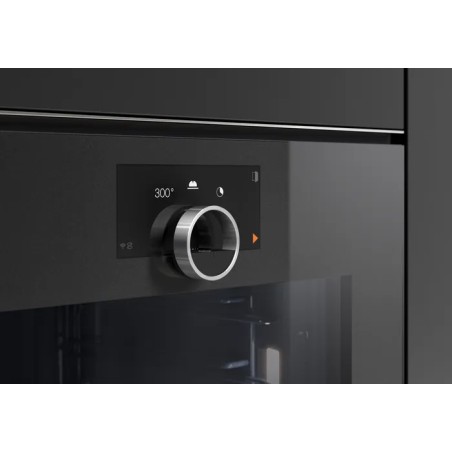

• Full touch display with control ring
• 42 languages available for the display
• User detection, adjustable distance
• Informative texts for more information
• Animated quick guides to facilitate the operation of the appliance

Features
• Full-surface grill behind 2 kW glass ceramic
• Hot air fan rotates in both directions for ideal heat distribution
• Connection for temperature probe (oven temperature probe compatible)
• The grill can be added briefly in hot air mode for extra browning
• Misting for targeted addition of humidity
• Steam removal to prevent moisture from settling on cabinet fronts
• Automatic boiling point detection
• Precise temperature control with current temperature display
• Timer functions: cooking time, end of cooking time, minute minder
• Long-term timer with pre-programmable cooking cycles
• Programmable automatic door opening at the end of cooking to prevent overcooking

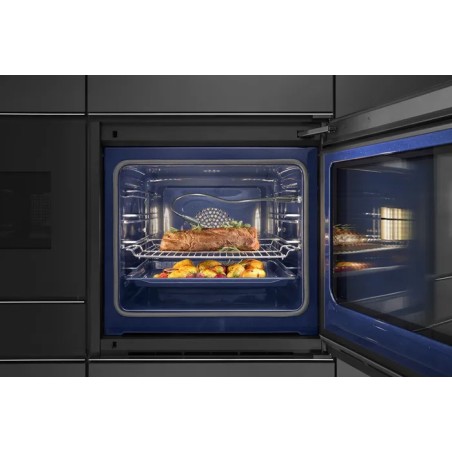

• Optimal visibility of food thanks to side lighting
• 3-level side supports

Selected digital services (Gaggenau Home Connect)
• Remote control and monitoring
• Cooking time estimation when using the temperature probe
• Door opening via voice assistant

Safety
• Child lock to prevent accidental switching on or operation of the appliance
• Electronic door lock to prevent inadvertent opening of the door of the appliance
• Safety switch-off
• Thermally insulated door with triple glass
• Cooled housing with thermal protection

Cleaning
• Hygienic stainless steel cooking interior
• Automatic cleaning
• Automatic descaling of the steam generator
• Drying program
• Automatic drying of the cavity at the end of the cooking process
• All removable parts and accessories are dishwasher safe

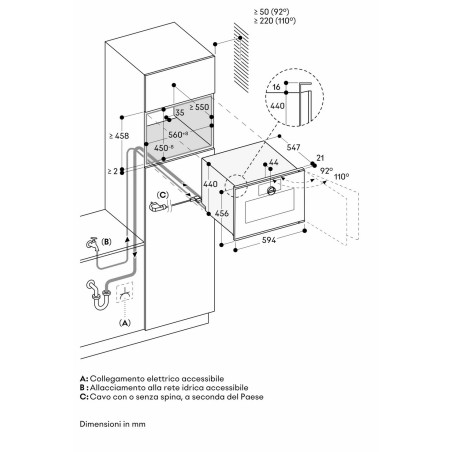

Planning notes
• Plan the niche without a rear wall
• Non-reversible door hinge
• No other electrical appliances must be installed above the GS
• Protrusion from the front of the appliance to the cabinet of 21 mm
• This appliance is intended for flush installation
• To avoid damaging the cabinets, protruding front panels, horizontal handles, etc. must not be fitted directly above the oven Steam. The edges of the cabinet panel must be steam-resistant, as in the case of a dishwasher.

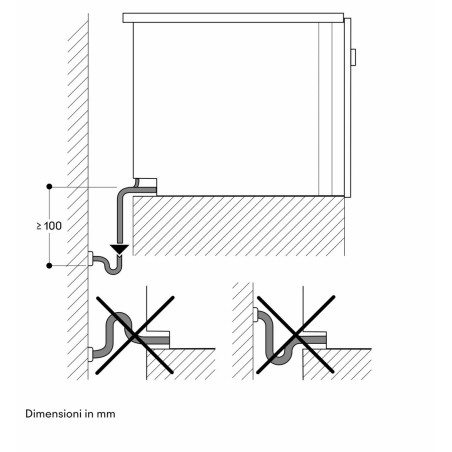

• The outlet hose must never be positioned higher than the lower edge of the appliance. Furthermore, the outlet pipe must be at least 100 mm lower than the appliance outlet.
• The inlet and outlet pipes can be extended once.
• The water connection for the inlet pipe must always be accessible and must not be located directly behind the appliance.
• The connection of the outlet pipe to the siphon must not be located directly behind the appliance and must be accessible.
• When planning a solution close to a wall, pay attention to the side-opening door and the minimum distance required from the wall.
• The door opening angle of approximately 110° can be reduced to approximately 92° if necessary.
• The power socket must be accessible and located outside the built-in niche.

Connection values
• Energy efficiency class A with a range of energy efficiency classes from A+++ to D.
• Total power consumption 3.1 kW.
• Connection to water only. cold
• To enable water detection, the softened water must have a conductivity >200uS/cm

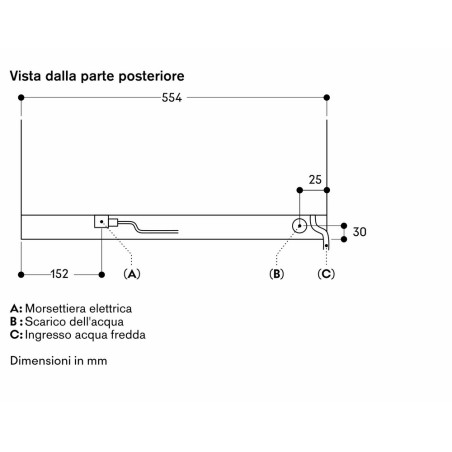

• Inlet hose 3.0m with ISO228-G 3/4" thread (Ø 26.4mm), extendable
• Outlet hose (Ø 25mm) 3.0m (HT-Hose), extendable
• Connection cable 1.75m with plug

Installation accessories (sold separately)
• GA 601 010: Adjustable intermediate shelf. For vertical combination. Including mounting brackets, cover and screws
• GZ 010 011: Extension for water inlet and outlet (2m)

Special accessories (sold separately)
• BA 010 050: Temperature sensor temperature. Compatible with GO, GS, GM
• BA 010 301: Triple telescopic slides for combi-steam ovens
• BA 020 361: Stainless steel baking tray, unperforated, 46mm deep, 5.4 lt
• BA 020 370: Stainless steel baking tray, perforated, 40mm deep, 5 lt
• BA 020 382: Baking tray, unperforated, PFAS-free non-stick coating, 46mm deep, 5.4 lt
• BA 020 391: Baking tray, perforated, PFAS-free non-stick coating, 40mm deep, 5 lt
• BA 046 118: Glass baking tray. 24mm deep
• CLS 100 40: Cleaning cartridges, set of 4. For combi-steam ovens steam
• GN 010 330: Adapter for Gastronorm trays and baking dish
• GN 114 130: Gastronorm tray, stainless steel, GN 1/3. Unperforated, 40mm deep, 1.5 lt
• GN 114 230: Gastronorm tray, stainless steel, GN 2/3. Unperforated, 40mm deep, 3 lt
• GN 124 130: Gastronorm tray, stainless steel, GN 1/3. Perforated, 40mm deep, 1.5 lt
• GN 124 230: Gastronorm tray, stainless steel, GN 2/3. Perforated, 40mm deep, 3 lt
• GN 340 231: Gastronorm baking dish in aluminium Die-cast. GN 2/3, height 165 mm, PFAS-free non-stick coating. In combination with the GN 010 330 adapter and the BA 010 301 pull-out system.
• 17 002 490: Descaling tablets can be ordered through the Gaggenau service center.
