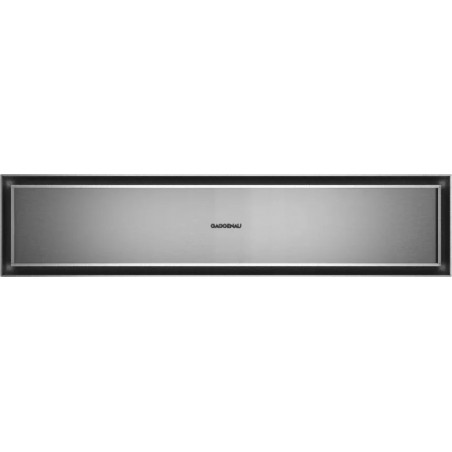

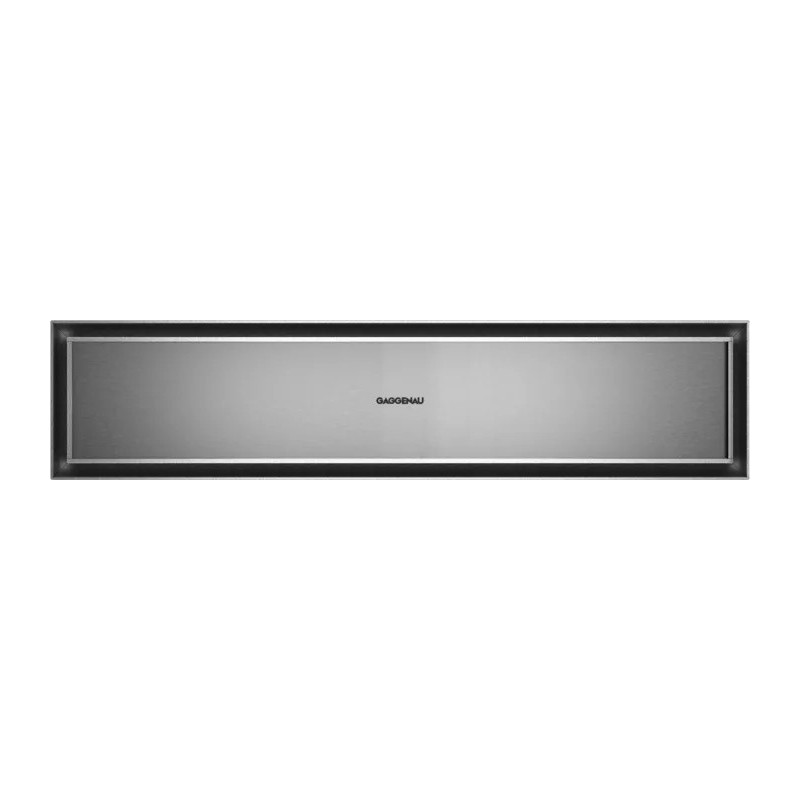

Gaggenau Built-in vacuum drawer GV451120 stainless steel finish and smoked glass 60 cm

Cod. GV 451 120

Cod. EAN 4242006313197

Highlights
— Can be integrated into a 14 cm high niche
— Hygienic stainless steel extraction chamber, usable height up to 80 mm
— 3 vacuum levels inside the chamber: 80%, 95%, 99%
— 3 vacuum levels outside the chamber: 50%, 75%, 90%
— Automatic recognition of the vacuum connection outside the chamber
— Handle-free drawer
— Push-to-open function

Application
Vacuum for sous-vide cooking
For quick marinating and seasoning
Long-term preservation of food
Vacuum can also be achieved with external containers
Vacuum for bottled liquids outside the chamber chamber

Operation
Touch control adjustment

Features
Net volume 7 litres
Max. load capacity 10 kg
Maximum vacuum bag dimensions W 240 mm x D 350 mm
3 heat sealing levels for different bag material strengths
Sealing bar with non-stick coating, removable
Safety glass lid, opens automatically after the vacuum cycle
Raised base, 44 mm, removable
Usable space in the suction chamber, W 210 mm x D 275 mm
Membrane to prevent liquids from flowing back out of the chamber during vacuuming
Drying program for the suction pump

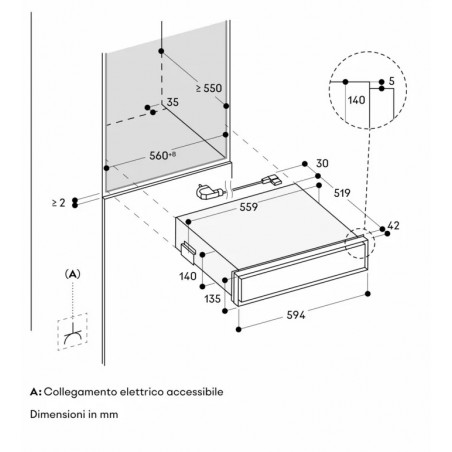

Planning notes
Plan the niche without a rear wall
Protrusion from the front of the appliance to the cabinet of 42 mm
Consider the protrusion when opening drawers next to the appliance
Installation of GS/GM/GC possible directly above GV without a shelf intermediate
The socket must be accessible and located outside the built-in niche
The socket can be provided behind the appliance

Connection values
Total power consumption 0.32 kW
Connecting cable 1.50 m with plug

Supplied with
50 vacuum bags, small
50 vacuum bags, large
1 raised vacuum base
1 vacuum adapter outside the chamber
1 vacuum tube
1 bottle adapter
3 vacuum caps for bottles
