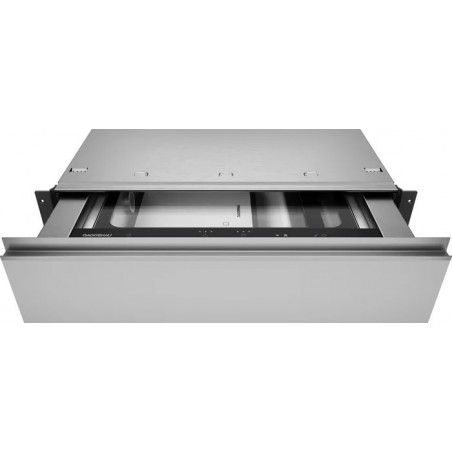

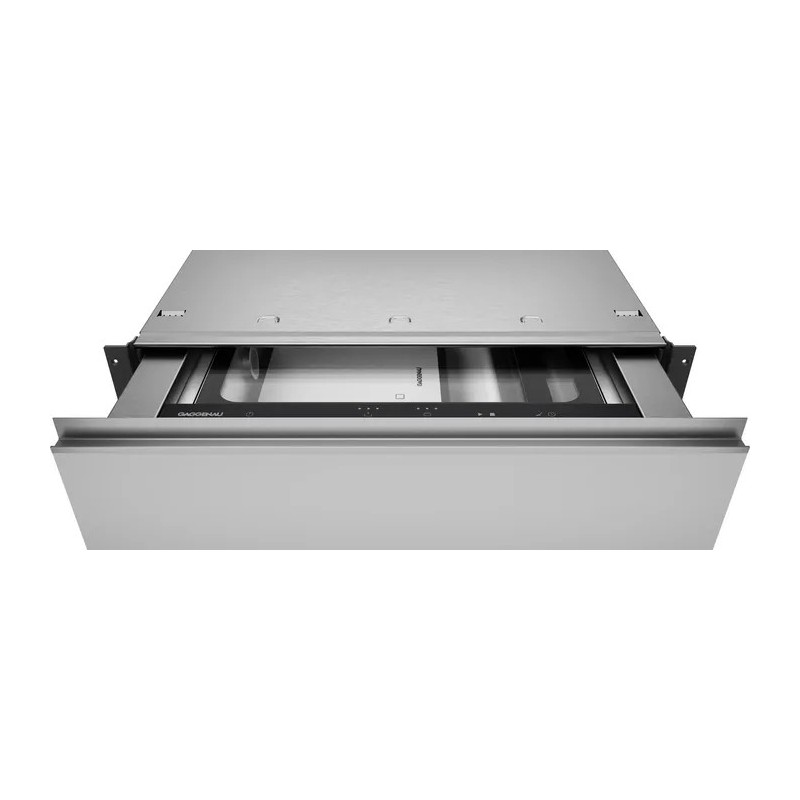

Gaggenau Built-in vacuum drawer GV051190 without front (can be panelled) 60 cm

Cod. GV 051 190

Cod. EAN 4242006313159

Highlights
— Can be integrated into a 14 cm high niche
— Hygienic stainless steel extraction chamber, usable height up to 80 mm
— 3 vacuum levels inside the chamber: 80%, 95%, 99%
— 3 vacuum levels outside the chamber: 50%, 75%, 90%
— Automatic recognition of the vacuum connection outside the chamber
— Soft closing system

Application
Vacuum for sous-vide cooking
For quick marinating and seasoning
Long-term preservation of food
Vacuum can also be achieved with external containers
Vacuum for bottled liquids outside the chamber chamber

Operation
Touch control adjustment

Features
Net volume 7 litres
Max. load capacity 10 kg
Maximum vacuum bag dimensions W 240 mm x D 350 mm
3 heat sealing levels for different bag material strengths
Sealing bar with non-stick coating, removable
Safety glass lid, opens automatically after the vacuum cycle
Raised base, 44 mm, removable
Usable space in the suction chamber, W 210 mm x D 275 mm
Membrane to prevent backflow of liquids outside the chamber during vacuuming
Drying program for the suction pump

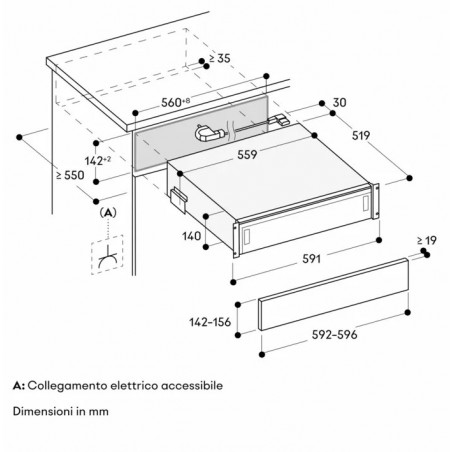

Planning notes
Plan the niche without a rear wall
Installation of GS/GM/GC possible directly above GV without intermediate shelf
Attention: a handle or groove is required to ensure correct opening
Maximum panel weight 3 kg
One lateral space between the front of the appliance and the adjacent cabinet panel of at least 5 mm
Can be installed under the kitchen worktop or in a single niche
The socket must be accessible and located outside the built-in niche
The socket can be provided behind the appliance

Connection values
Total absorption 0.32 kW
Connecting cable 1.50 m with plug

Supplied with
50 vacuum bags, small
50 vacuum bags, large
1 raised vacuum base
1 vacuum adapter outside the chamber
1 vacuum tube
1 bottle adapter
3 caps for vacuuming bottles
