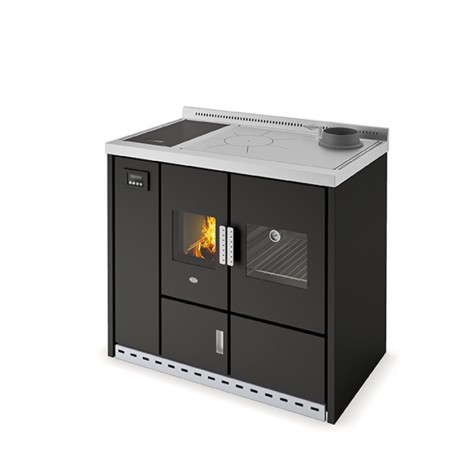

Eva Calòr Wood-fired thermocooker with integrated DHW WANDA 9016045000 black texture finish

Wanda model

Cod. 9016045000

FEATURES
• Stainless steel oven
• Oven thermometer
• Removable tray holder guides
• Aluminum tray supplied
• Tray rack supplied
• Combustion chamber resizing system for the summer period
• Possibility of placing it built-in or free-standing

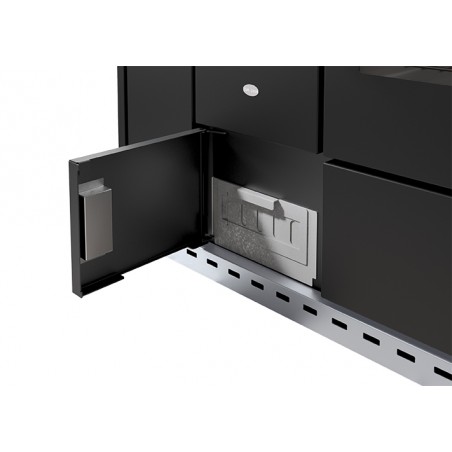

• Removable ash drawer for ash recovery
/>• Upper smoke outlet
• Stainless steel coil
• Circulation pump
• Anti-overflow valve
• Solenoid valve for automatic loading
• Exchange system open vessel

TECHNICAL DATA
• Burned power: max 18.6 kW
• Power output in heating: max 15.8 kW
• Power output water: max 10.5 kW
• Energy efficiency class: A+
• Efficiency: Pmax 85.3%
• CO value with 13% O2 (%): Pmax 0.069%
/>• Hourly wood consumption: 4.3 kg/h
• Wood length: 300 mm
• Heated room size: 250 - 350 m3
• Minimum distances from flammable walls - built-in version: side 0.5 cm, back 4 cm with insulation, front 150 cm
• Minimum distances from flammable walls - free installation: side 60cm, back 0 cm, front 150 cm
• Power supply voltage/Freq.: 230 V / 50 Hz
• Rated electrical power: 48 W
• Dimensions: L 98 x D 61.5 x H 92.1 cm
• Weight: 308 kg
• Combustion chamber in vermiculite
/>• Combustion chamber dimensions: L 20.0 x D 45 x H 41 cm
• Chimney draft: 12 Pa
• Smoke outlet: 150 mm
• Oven dimensions: L 30.0 x D 38.5 x H 28.0 cm
• Complies with standards: EN13240
• Drawer: Removable for ash recovery
• Smoke outlet: Upper
• Domestic hot water on request
• Version with integrated DHW

OPTIONAL
• Kettle

Multifunctional heat
The Eva Calòr thermocookers were created to perform multiple functions at the same time: they allow cooking, heat the rooms, not only the room in which they are located but the entire home and can provide domestic hot water . All this by exploiting wood, which is a natural, economical and ecological fuel
The advantages in choosing an Eva Calòr thermocooker are many, in addition to the economic and ecological aspect that derives from its use as wood fuel, it is a practical and multifunctional system, to be used in complete safety every day

Heating the home in a simple way
They are made entirely of steel and are composed of a boiler body with a water jacket that envelops the hearth laterally, this communicates with the built-in expansion tank which, via a stainless steel coil exchanger, allows heating the water from the heating system. It is also possible to equip the thermo-cooker with a second exchanger which also allows the domestic water to be heated.
To this function is added the more classic one of a real economical kitchen, where it is possible to cook the foods thanks to the upper plate and, for the models that require it, to the stainless steel oven
The advantages of thermo cookers are many:
• I can be used independently or combined with a boiler
• have a programmable electronic control unit that safely manages their operation
• are simple to clean thanks to the easy disassembly of the upper plate

Safety in the front row
During the design and experimentation, great importance was given to the safety of all thermocooker models, which is why they are all equipped with:
• water level control with automatic reset
• boiler body with operation in the absence of pressure
• heat disposal devices
• water reserve to always have a rapid commissioning

Cooking in a natural way
Stoves are available in the Eva Calòr range of thermocookers which in addition to the upper plate are equipped with a stainless steel cooking oven. Designed to quickly reach high temperatures, thus also allowing the cooking of bread and pizza.
Thermal cookers equipped with an oven are complete with the following elements:
• removable tray holder guides
• aluminum tray
• tray holder grid
• thermometer
