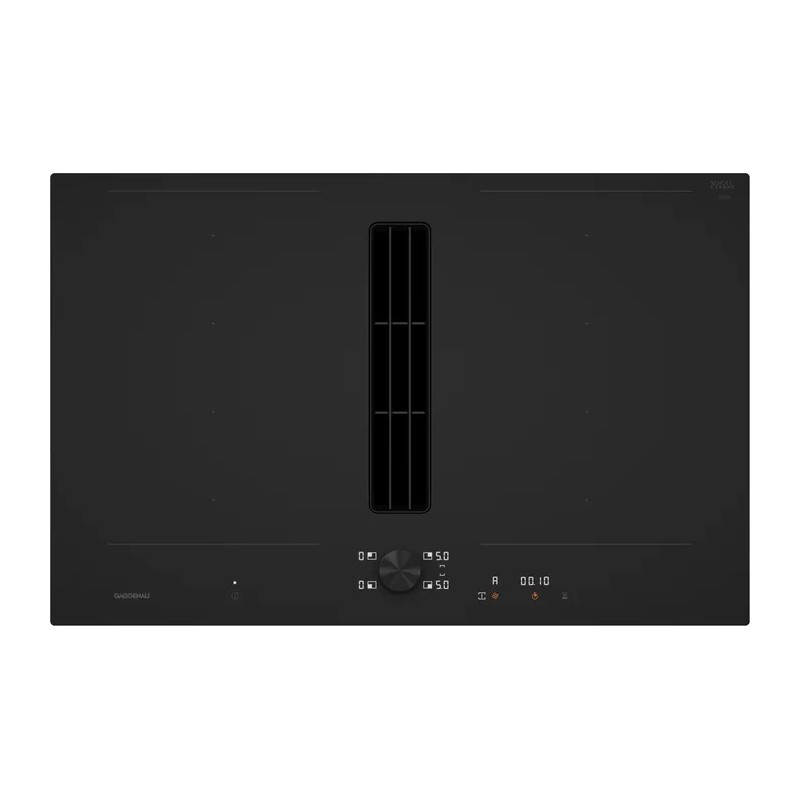

Gaggenau CV282101M 80cm matt black glass ceramic induction hob with integrated hood

Code CV 282 101M

Code EAN 4242006321307

Highlights
— Flex function to combine rectangular cooking zones
— Flexible positioning of pots and pans within the rectangular cooking zones
— Extremely efficient extraction system integrated into the hob
— Automatic extraction function
— Large metal grease filter, easy to remove, dishwasher safe
— Low-noise, energy-saving motor
— Air extraction or recirculation system
— Integrated activated carbon filter easily removable from above for air recirculation
— Twist-Pad control, practical removable magnetic selector to activate the cooking zone and set the temperature level
— Possibility of choosing between glossy or matt glass
— Easy control of all functions thanks to the two-colour display indicators

Cooking zones
2 Flex Induction zones each with 20x24 cm (2200 W, with booster 3700 W) when combined they reach the size of 40x24 cm (3300 W, with booster 3700 W)
2 Flex Induction zones each 20x24 cm (2200 W, with booster 3700 W) when combined they reach the size of 40x24 cm (3300 W, with booster 3700 W)

Performance
Performance and noise: 3 power levels + intensive: max. suction power according to DIN EN 61591
Sound power according to EN 60704-3
Sound pressure according to EN 60704-2-13. Odor reduction in recirculation mode according to EN 61591
Air extraction:
532 / 636 m3/h
70 / 74 dB (A) re 1 pW
Air recirculation:
487 / 611 m3/h
67 / 72 dB (A) re 1 pW

Operation
Twist-Pad control with black finish and removable magnetic selector for easy cleaning of the hob
User-friendly control with 2-color display (white/orange)
Cooking zone indicators on the glass ceramic
Electronic control of 17 cooking zones
3-level control + 1 intensive level of the ventilation system

Features
Flex function for rectangular cooking zones
Automatic pan recognition<... Professional cooking
Cooking Sensor function for use with the CA 060 300 accessory
Frying Sensor function
Booster function for pots
Booster function for pans
Keep warm function
Sensor-controlled extraction system operation
Automatic activation of the extraction system when a cooking zone is in use
Interval extraction, 6 minutes
Post-cooking function controlled by sensors or manually
Activated carbon filter saturation indicator
Removable and dishwasher-safe grease filter
High-quality, dishwasher-safe black die-cast zinc ventilation system cover
Brushless BLDC electromagnetic motor operating technology for maximum efficiency
Optimised interior for extremely efficient air circulation
Stopwatch
Cooking timer (up to 99 minutes)
Minutes
Function Memory
Options menu
Power Management function: electronic regulation and limitation of power consumption as needed

Selected digital services (Gaggenau Home Connect)
Control of the extraction unit
Remote control of cooking zones
Remote diagnosis

Consumption values
Energy efficiency class A (on a scale of energy efficiency classes from A+++ to D)
Energy consumption 56.9 kWh/year
Ventilation efficiency class: A
Lighting efficiency class: -
Filter efficiency class: B
Noise level min. 61 dB / max. 70 dB
at normal extraction level

Safety
Main switch (on / off)
Operation light
Pan recognition system
Two-level residual heat indicator
Child lock
Safety switch-off
Dishwasher-safe top guard
Dishwasher-safe 0.9 litre liquid collection container

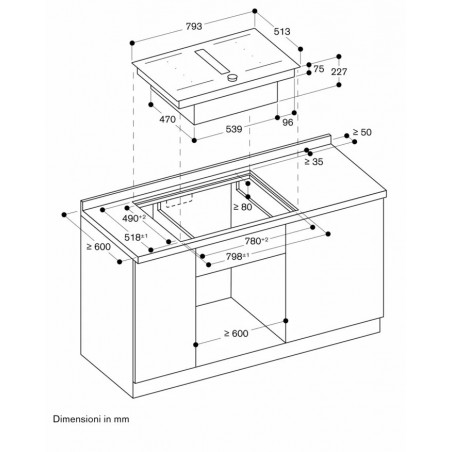

Assembly precautions
Minimum width of the base unit bottom: 60 cm
Minimum depth of the worktop: 60 cm
The non-ducted recirculation set CA 082 011 requires a vertical opening of min. 25 mm behind the rear panel of the cabinet
50 mm is recommended for optimal performance
The air outlet at the back of the appliance is directly accessible with a flat duct (DN 150)
In air extraction mode, a non-return valve with a maximum opening pressure of 65 Pa must be installed
For optimal performance in air recirculation, an outlet surface of at least 440 cm² is recommended
For use with ferromagnetic pans only. For optimal heat distribution, the use of pans with a sandwich bottom is recommended. The equivalent length of the duct to ensure good performance is Lmax 28 m. Refer to the "General notes for designing the correct extraction system" in the Extraction section to calculate the equivalent length of the duct. The appliance must be fixed from the underside. The appliance must be easily accessible from below. Ensure greater ventilation of the room with a safety switch if the hood is installed as an extraction unit in a room where there is a working fireplace. Installation is possible in stone, synthetic or solid wood worktops. The thermal resistance and watertightness values of the edges of the built-in hole must be observed. For other materials, please consult the worktop manufacturer. The load-bearing capacity and stability, especially in the case of thin worktops, must be supported by suitable substructures. Take the weight of the appliance into account. The groove must be continuous and uniform, so as to ensure the correct positioning of the appliance on the gasket
Do not use a discontinuous coating
The width of the joint may vary due to the dimensional tolerances of the glass ceramic hob and the cutting of the built-in hole
Respect the distances from under the worktop to the anti-overflow container: min. 300 mm to remove and empty the bin
Do not install other appliances underneath, such as ovens, refrigerators or dishwashers
Weight of the appliance 27 kg

Connection values
Total power consumption 7.4 kW
Connection cable length 1.5 m without plug
Power consumption standby/display off 0.5 W
Power consumption standby/network 2.0 W
To find out how to switch off the WiFi module, see the user manual

Accessories required for installation
CA 082 011 Non-ducted recirculation kit
CA 082 061 Ducted recirculation kit Suitable for 60 cm deep worktops
CA 082 071 Ducted recirculation kit Suitable for 70 cm deep worktops
CA 084 010 4 filters acoustic dampers for extraction mode

Special accessories
CA 051 301 Teppan Yaki made of multilayer material For Flex Induction hobs
CA 052 300 Non-stick grill made of die-cast aluminium For Flex Induction hobs
CA 060 300 Cooking Sensor: cooking sensor for monitoring the temperature inside the pan
CA 282 112 4 activated carbon filters with high odour and allergen reduction for recirculation mode
CA 050 300 Flex baking tray set, 3 pieces Non-stick For Flex Induction hobs
CA 055 300 Flex baking tray, large Non-stick For Flex Induction hobs
